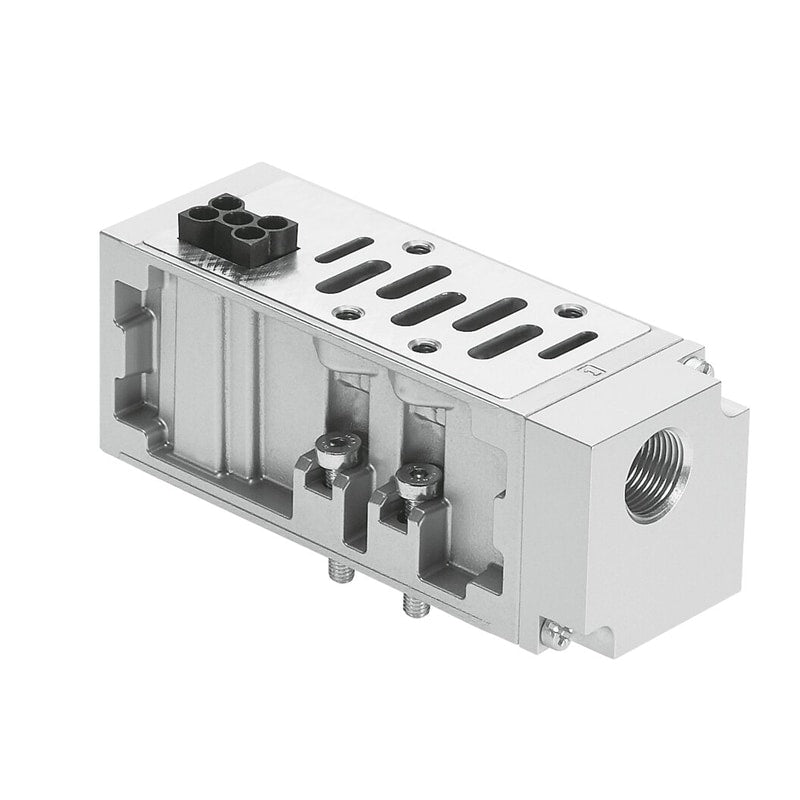

Vertical pressure supply plate
VABF-S2-1-P1A14-N38
8000540
GTIN 4052568256173
Vendor Festo
Regular price
$178.28
Unit price
VABF-S2-1-P1A14-N38 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S2-1-P1A14-N38
Regular price
$178.28
Unit price
VABF-S2-1-P1A14-N38 is backordered and will ship as soon as it is back in stock.
vertical pressure supply plate VABF-S2-1-P1A14-N38 Width=42 mm, Based on the standard=ISO 5599-2, Assembly position=Any, Pneumatic vertical stacking=Alternative pressure supply for 1 and 14, Operating pressure=-0,9 - 10 bar
| Width | 42 mm |
|---|---|
| Based on the standard | ISO 5599-2 |
| Assembly position | Any |
| Pneumatic vertical stacking | Alternative pressure supply for 1 and 14 |
| Operating pressure | '-0.9 ... 10 bar |
| Standard nominal flow rate | 1,300 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 340 g |
