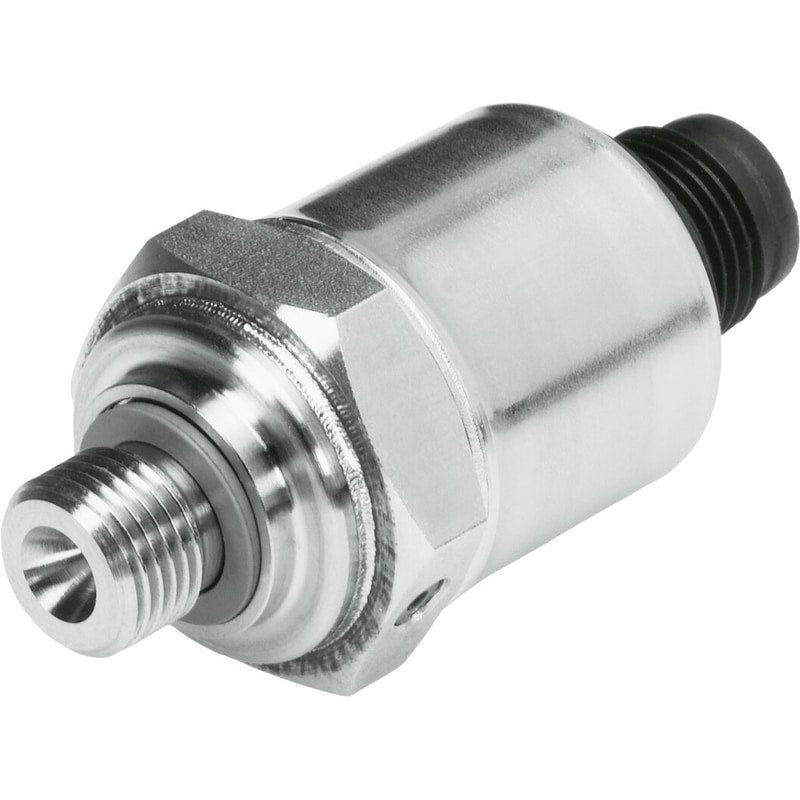

Pressure switch
SPBA-P2R-G18-2P-M12-0,25X
8000210
GTIN 4052568256135
Vendor Festo
- Pneumatic connection
- G1/8
- Operating pressure
- -1 bar - 10 bar
- Switching element function
- Antivalent
- DC operating voltage range
- 19.2 V - 30 V
- Electrical connection
- M12x1 - Plug - as per EN 60947-5-2 - Round design
Regular price
$323.08
Unit price
SPBA-P2R-G18-2P-M12-0,25X is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPBA-P2R-G18-2P-M12-0,25X
Regular price
$323.08
Unit price
SPBA-P2R-G18-2P-M12-0,25X is backordered and will ship as soon as it is back in stock.
pressure switch SPBA-P2R-G18-2P-M12-0,25X CE mark (see declaration of conformity)=(* to EU directive for EMC, * to EU directive for machinery), Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Thin metal film pressure sensor, Operating pressure=-1 - 10 bar
| CE mark (see declaration of conformity) | to EU directive for EMCto EU directive for machinery |
|---|---|
| Materials note | Conforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Thin metal film pressure sensor |
| Operating pressure | '-1 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Switch output | 2xPNP |
| Switching function | Threshold value with fixed hysteresis |
| Switching element function | Antivalent |
| Switch-on point | 0.25 bar |
| Switch-on point maximum | 0.4 bar |
| Switch-off point minimum | 0.05 bar |
