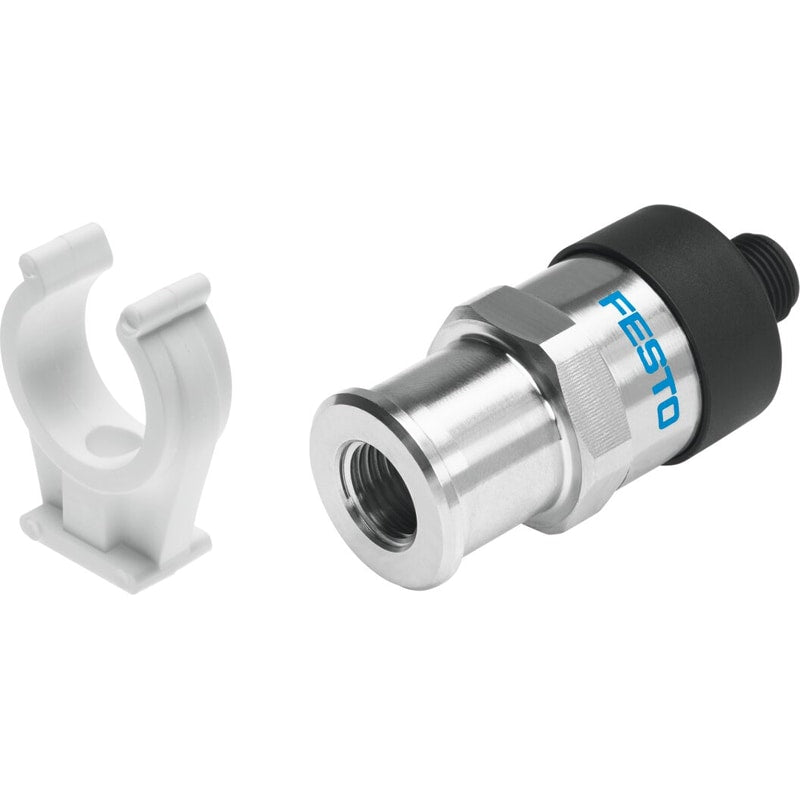

Pressure transmitter
SPTW-B11R-G14-A-M12
8000101
GTIN 4052568255961
Vendor Festo
- Pressure measuring range initial value
- -1 bar
- Pressure measuring range end value
- 10 bar
- Pneumatic connection
- G1/4
Regular price
$254.22
Unit price
SPTW-B11R-G14-A-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPTW-B11R-G14-A-M12
Regular price
$254.22
Unit price
SPTW-B11R-G14-A-M12 is backordered and will ship as soon as it is back in stock.
pressure transmitter SPTW-B11R-G14-A-M12 Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Contains PWIS substances, * Conforms to RoHS), Measured variable=Relative pressure, Measurement method=Thin metal film pressure sensor
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Contains PWIS substancesConforms to RoHS |
| Measured variable | Relative pressure |
| Measurement method | Thin metal film pressure sensor |
| Pressure measuring range, initial value | '-1 bar |
| Pressure measuring range, final value | 10 bar |
| Overload range | 20 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-]Gaseous mediaFluid media |
| Medium temperature | 0 ... 80 °C |
| Ambient temperature | 0 ... 80 °C |
| Accuracy, FS | 1 %FS |
| Repetition accuracy in ± %FS | 0.1 %FS |
