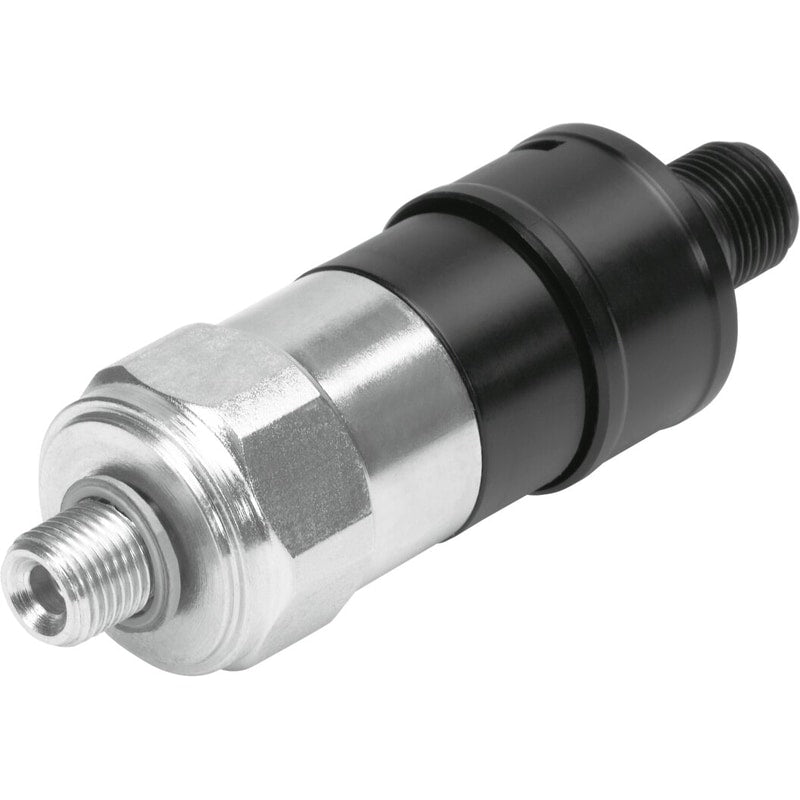

Pressure switch
SPBA-P2R-G18-W-M12-0,25X
8000033
GTIN 4052568255626
Vendor Festo
- Pneumatic connection
- G1/8
- Operating pressure
- -1 bar - 10 bar
- Switching element function
- Changeover switch
- DC operating voltage range
- 19.2 V - 30 V
- Electrical connection
- M12x1 - Plug - as per EN 60947-5-2 - Round design
Regular price
$227.33
Unit price
SPBA-P2R-G18-W-M12-0,25X is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SPBA-P2R-G18-W-M12-0,25X
Regular price
$227.33
Unit price
SPBA-P2R-G18-W-M12-0,25X is backordered and will ship as soon as it is back in stock.
pressure switch SPBA-P2R-G18-W-M12-0,25X Materials note=Conforms to RoHS, Measured variable=Relative pressure, Measurement method=Pneu./elect. pressure transducer, Operating pressure=-1 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4]
| Materials note | Conforms to RoHS |
|---|---|
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Operating pressure | '-1 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Switch output | Contact-type |
| Switching function | Threshold value with fixed hysteresis |
| Switching element function | Changeover switch |
| Switch-on point | 0.25 bar |
| Switch-on point maximum | 0.4 bar |
| Switch-off point minimum | 0.05 bar |
| Max. output current DC | 1,000 mA |
