Air solenoid valve
MOCH-3-1/2
7885
GTIN 4052568111168
Vendor Festo
Regular price
$431.86
Unit price
MOCH-3-1/2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MOCH-3-1/2
Regular price
$431.86
Unit price
MOCH-3-1/2 is backordered and will ship as soon as it is back in stock.

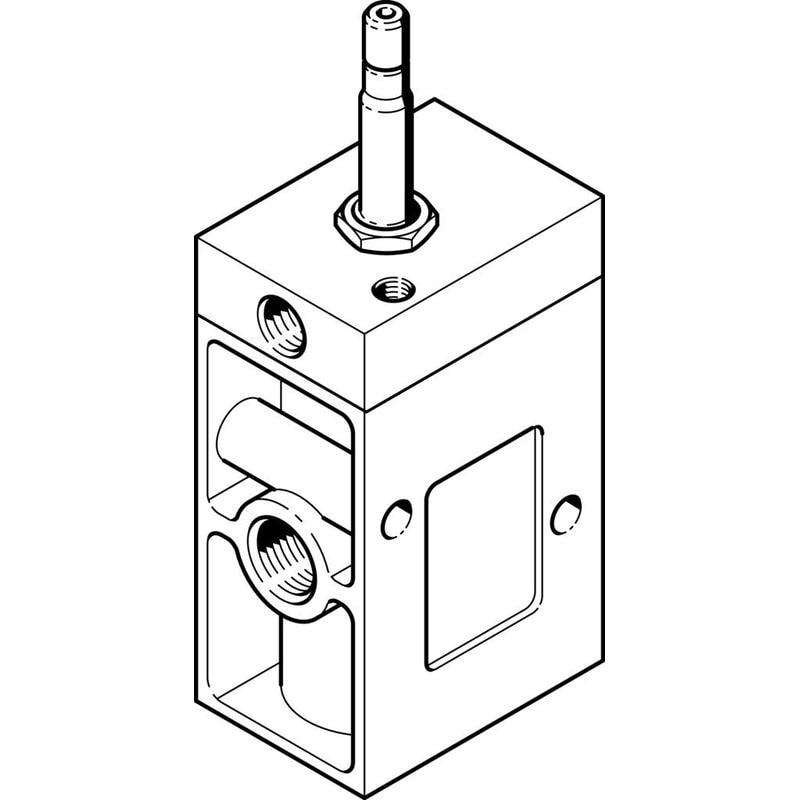

solenoid valve MOCH-3-1/2 With manual override. Valve function=3/2 open, monostable, Type of actuation=electrical, Width=52 mm, Standard nominal flow rate=3700 l/min, Operating pressure=1,5 - 10 bar
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 52 mm |
| Standard nominal flow rate | 3,700 l/min |
| Operating pressure | 1.5 ... 10 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Nominal size | 14 mm |
| Grid dimension | 69 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
