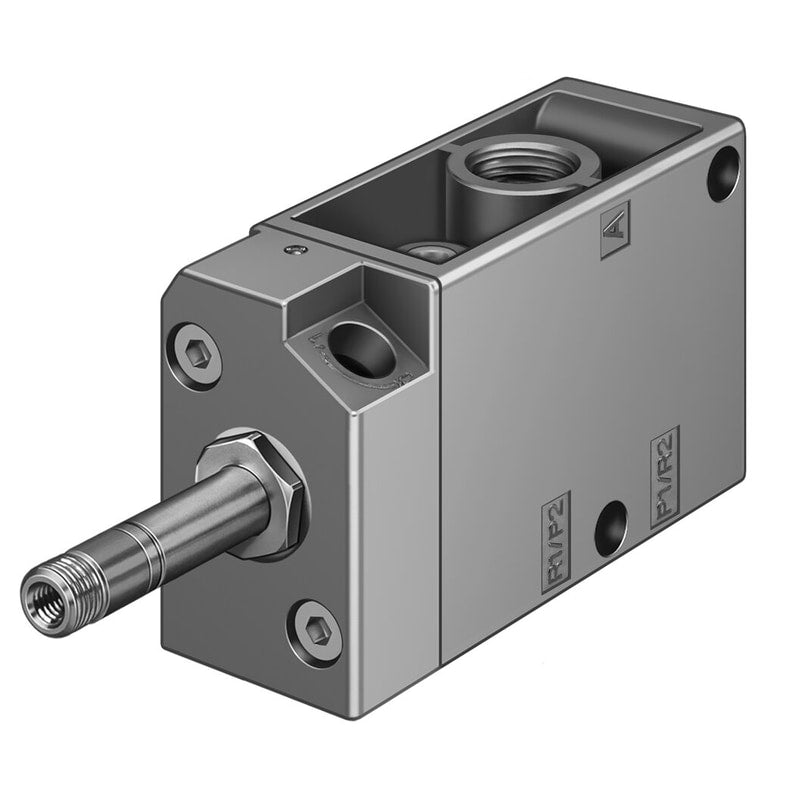

Air solenoid valve
MOFH-3-1/4
7876
GTIN 4052568111137
Vendor Festo
Regular price
$260.47
Unit price
MOFH-3-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MOFH-3-1/4
Regular price
$260.47
Unit price
MOFH-3-1/4 is backordered and will ship as soon as it is back in stock.
solenoid valve MOFH-3-1/4 With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function=3/2 open, monostable, Type of actuation=electrical, Valve size=30,5 mm, Width=30,5 mm, Standard nominal flow rate=800 l/min
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 30.5 mm |
| Width | 30.5 mm |
| Standard nominal flow rate | 800 l/min |
| Operating pressure | 1.5 ... 8 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | throttleable |
