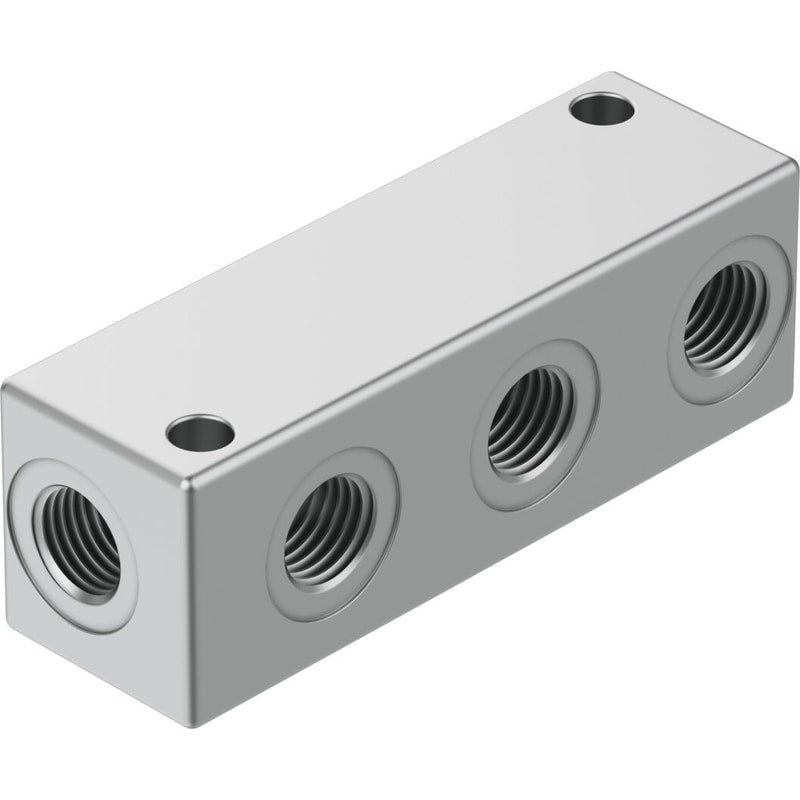

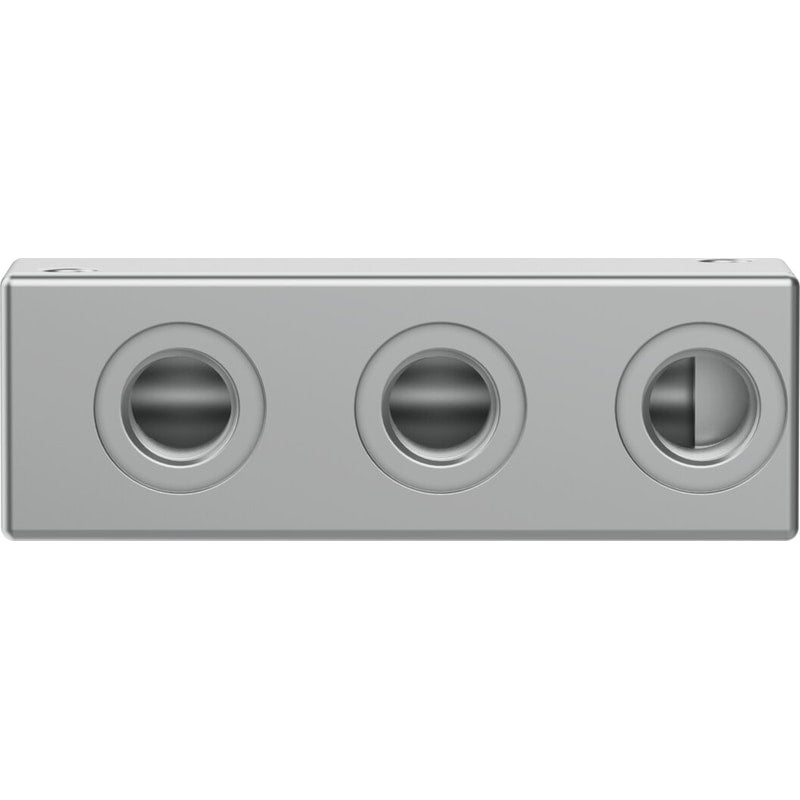

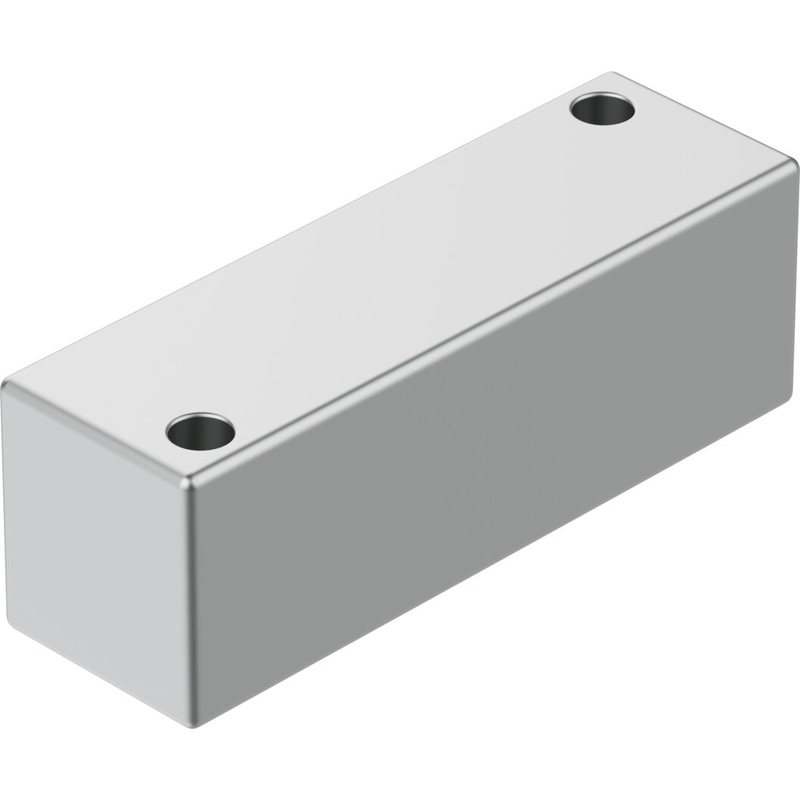

Distributor block
FR-4-1/4-C
7849
GTIN 4052568020248
Vendor Festo
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- Internal thread G1/4
- No. of supply lines
- 1
- No. of outlets
- 3
Regular price
$23.96
Unit price
FR-4-1/4-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FR-4-1/4-C
Regular price
$23.96
Unit price
FR-4-1/4-C is backordered and will ship as soon as it is back in stock.
distributor block FR-4-1/4-C For distribution of compressed air. Nominal size=11,5 mm, Assembly position=Any, Operating pressure complete temperature range=0 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Fitting Type | Distribution Block |
|---|---|
| Nominal size | 11.5 mm |
| Assembly position | Any |
| Operating pressure complete temperature range | 0 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Product weight | 60 g |
| Number of outputs | 3 |
| Number of supply lines | 1 |
| connection 1 | Female thread 1/4 |
| connection 2 | Female thread 1/4 |
| Materials note | Conforms to RoHS |
| Material housing | Aluminium die cast |
