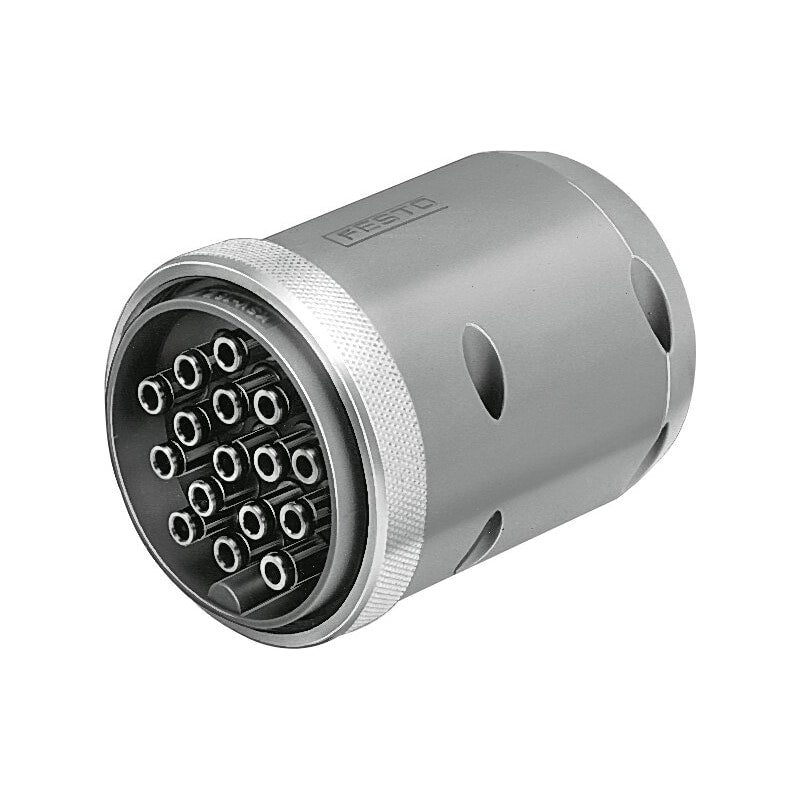

Multi-plug
KSV-8
7558
GTIN 4052568065201
Vendor Festo
Regular price
$75.10
Unit price
KSV-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KSV-8
Regular price
$75.10
Unit price
KSV-8 is backordered and will ship as soon as it is back in stock.
multi-plug KSV-8 Nominal size=4 mm, Operating pressure=-0,95 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=2 - Moderate corrosion stress
| Fitting Type | n/a |
|---|---|
| Nominal size | 4 mm |
| Operating pressure | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Product weight | 128 g |
| Max. number of connections | 8 |
| Pneumatic connection | PK-2PK-3PK-4 |
| Colour | Grey |
| Materials note | Conforms to RoHS |
