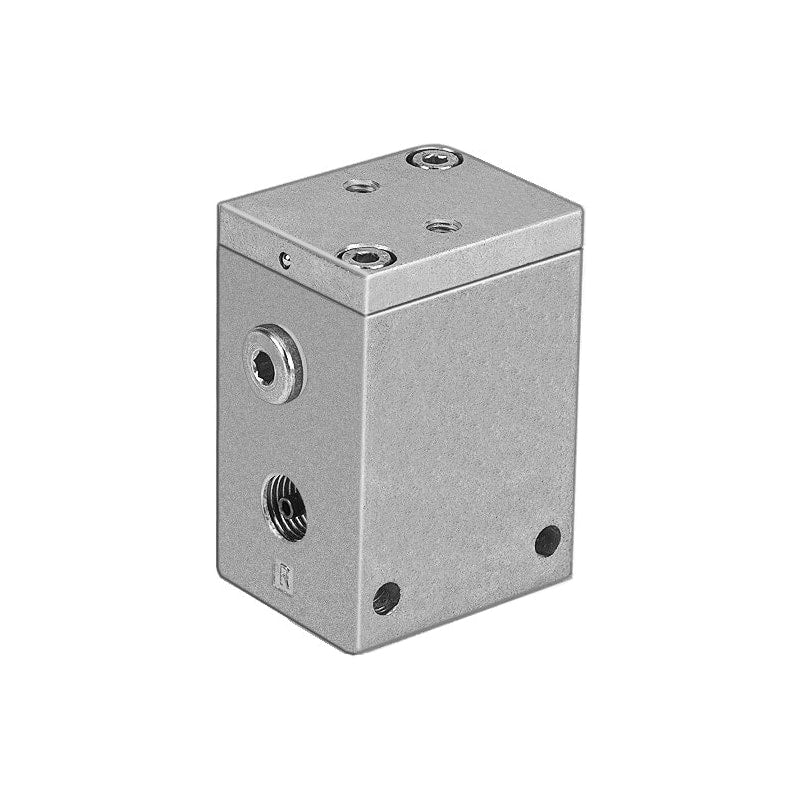

Vacuum generator
VAK-1/4
6890
GTIN 4052568001452
Vendor Festo
Regular price
$488.00
Unit price
VAK-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAK-1/4
Regular price
$488.00
Unit price
VAK-1/4 is backordered and will ship as soon as it is back in stock.

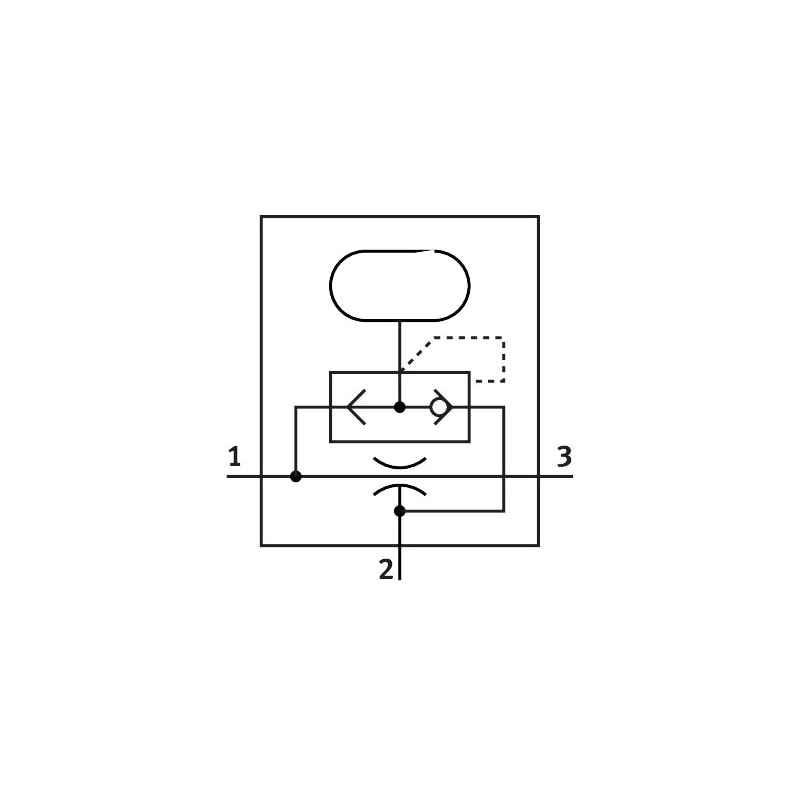

vacuum generator VAK-1/4 With pneumatic ejector pulse. Nominal size, Laval nozzle=1 mm, Assembly position=Any, Ejector characteristic=High vacuum, Integrated function=Pneumatic ejector pulse, Design structure=T-shaped
| Nominal size, Laval nozzle | 1 mm |
|---|---|
| Assembly position | Any |
| Ejector characteristic | High vacuum |
| Integrated function | Pneumatic ejector pulse |
| Design structure | T-shaped |
| Operating pressure | 1.5 ... 10 bar |
| Max. vacuum | 0.8 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-20 ... 80 °C |
| Ambient temperature | '-20 ... 80 °C |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | G1/4 |
