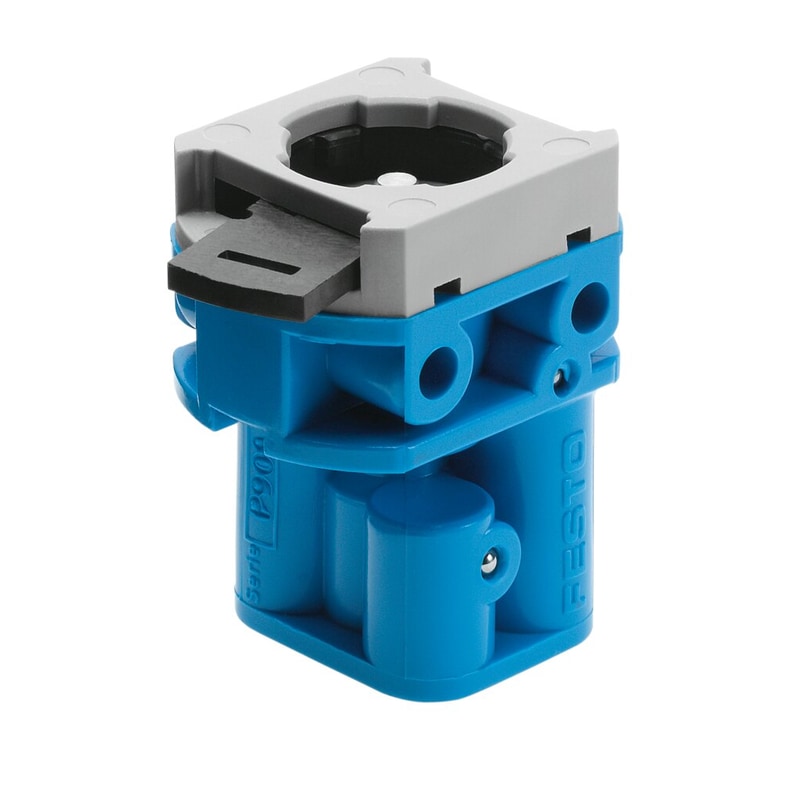

SV-3-M5
Regular price
$93.80
Unit price
SV-3-M5 is backordered and will ship as soon as it is back in stock.
front panel valve SV-3-M5 Valve function=3/2 closed, monostable, Type of actuation=manual, Standard nominal flow rate=65 l/min, Operating pressure=-0,95 - 8 bar, Design structure=Poppet valve with spring return
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | manual |
| Standard nominal flow rate | 65 l/min |
| Operating pressure | '-0.95 ... 8 bar |
| Design structure | Poppet valve with spring return |
| Type of reset | mechanical spring |
| Nominal size | 2 mm |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | direct |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 12 N |
