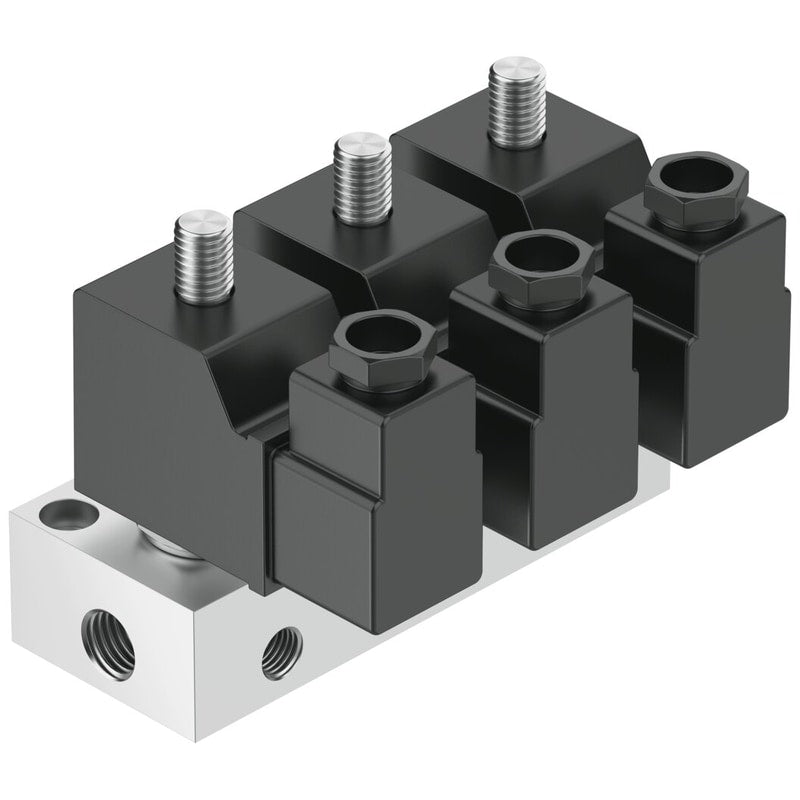

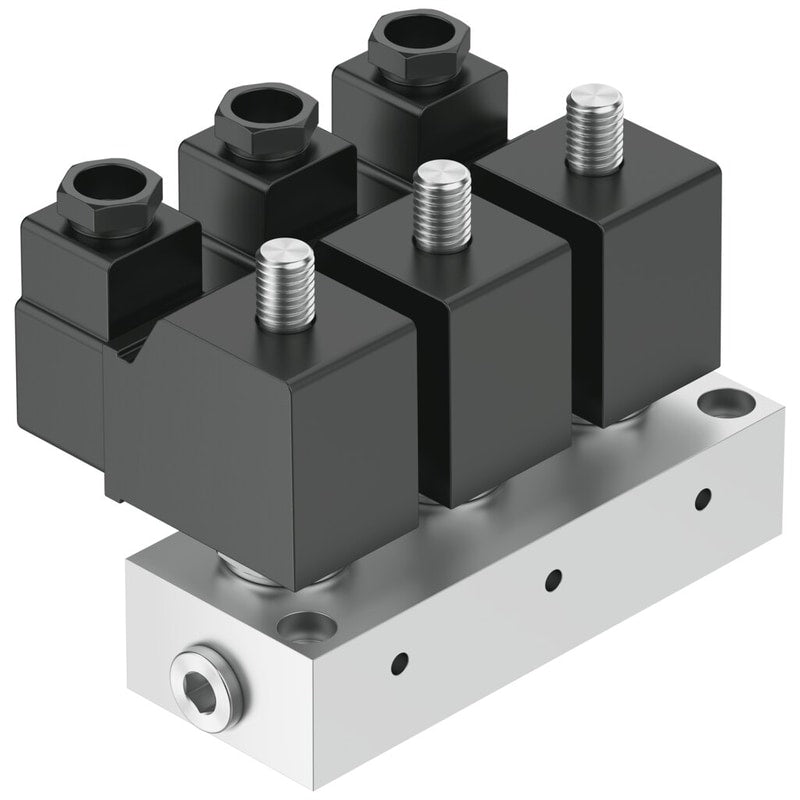

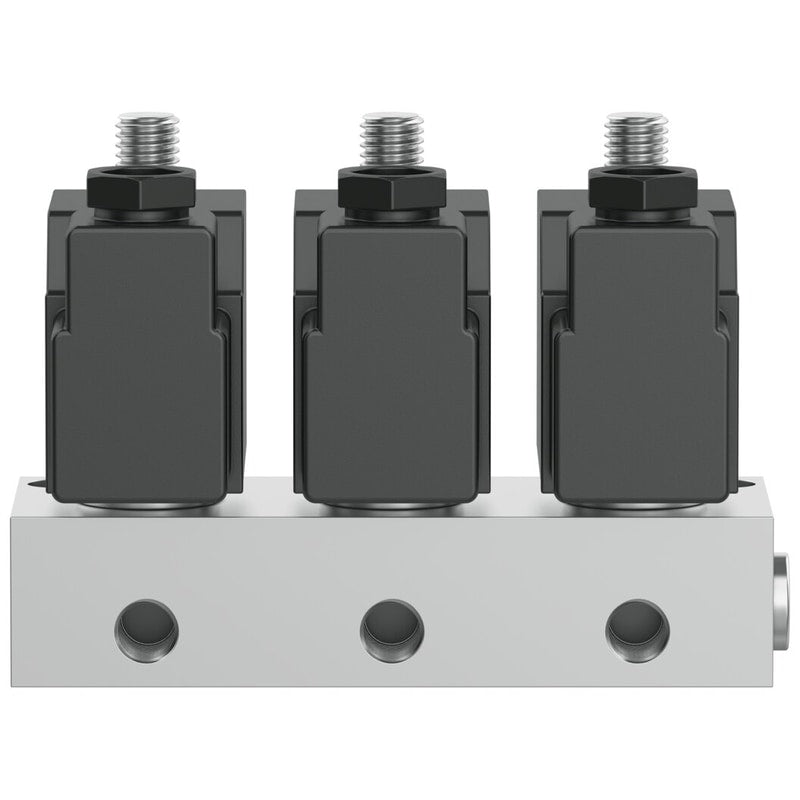

Air solenoid valve
BMCH-3-3-1/8
6687
GTIN 4052568110949
Vendor Festo
- Valve function
- 3x3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 160 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Electrical
Regular price
$653.00
Unit price
BMCH-3-3-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
BMCH-3-3-1/8
Regular price
$653.00
Unit price
BMCH-3-3-1/8 is backordered and will ship as soon as it is back in stock.
| Valve function | 3x3/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Standard nominal flow rate | 160 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | -0.95 bar ... 7 bar |
| Design | Poppet valve with return spring |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Certification | c CSA us (OL) |
| Nominal width | 2.5 mm |
| Type code | BMCH |
| Sealing principle | Soft |
| Max. no. of valve positions | 3 |
| Type of control | Direct |

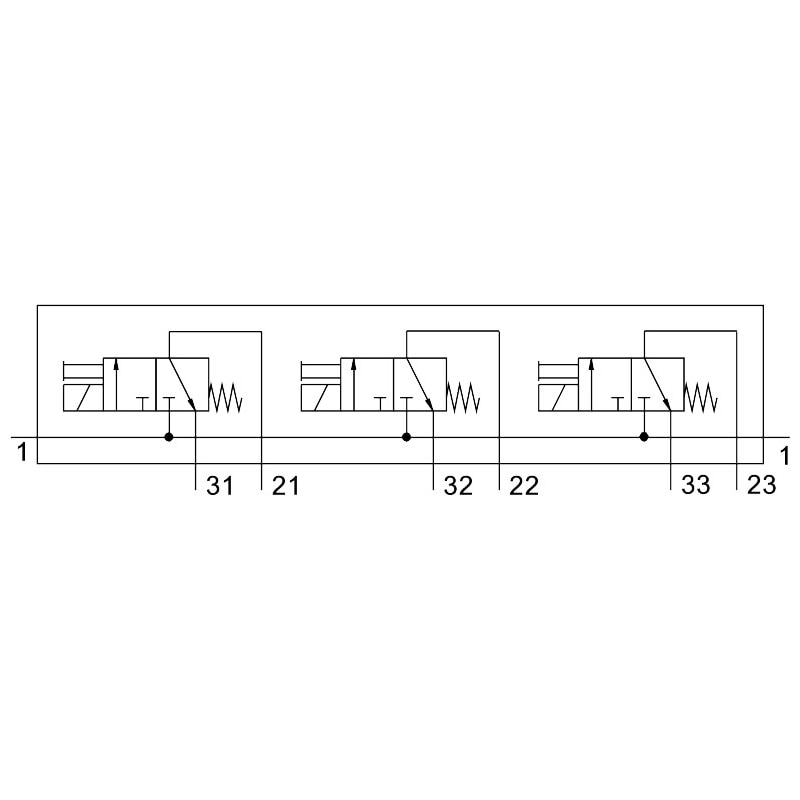

| Symbol | 995422 |
| Suitability for vacuum | yes |
| Pick-up power consumption | 30 W |
| Holding power consumption | 22 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -5 °C ... 40 °C |
| Product weight | 1010 g |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Housing material | Aluminum |
