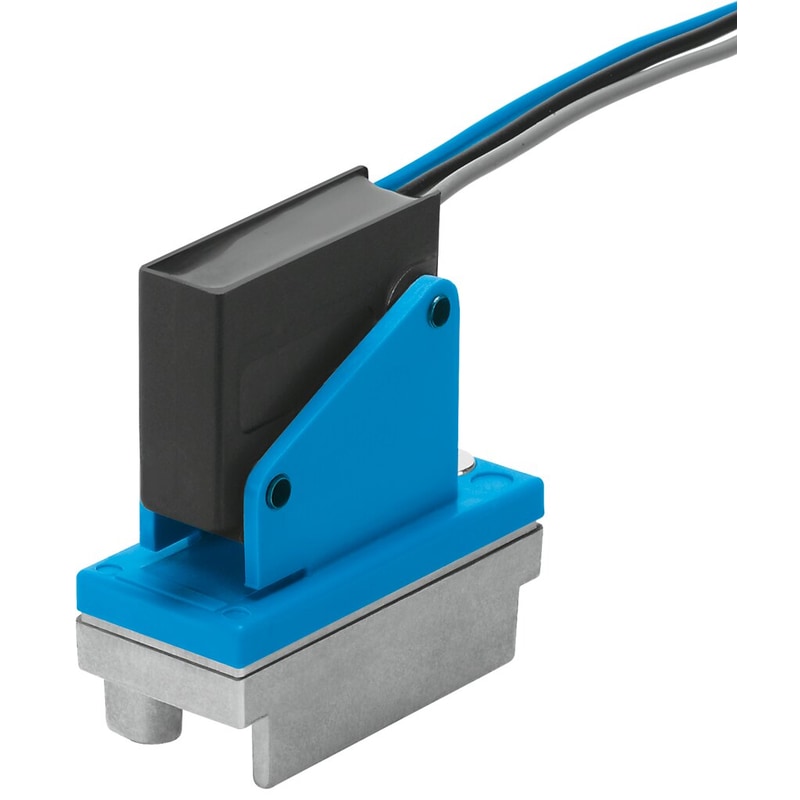

PE converter
PE-1/8-1N-SW
6484
GTIN 4052568001230
Vendor Festo
Regular price
$246.45
Unit price
PE-1/8-1N-SW is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PE-1/8-1N-SW
Regular price
$246.45
Unit price
PE-1/8-1N-SW is backordered and will ship as soon as it is back in stock.
PE converter PE-1/8-1N-SW Splash proof design Authorisation=CCC, CE mark (see declaration of conformity)=to EU directive low-voltage devices, Measured variable=Relative pressure, Measurement method=Pneu./elect. pressure transducer, Operating pressure=0 - 8 bar
| Authorisation | CCC |
|---|---|
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Measured variable | Relative pressure |
| Measurement method | Pneu./elect. pressure transducer |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | 0 ... 60 °C |
| Ambient temperature | 0 ... 60 °C |
| Switch output | Contact-type |
| Switching function | Threshold value with fixed hysteresis |
| Switching element function | Changeover switch |
| Switch-on point maximum | 2 bar |
