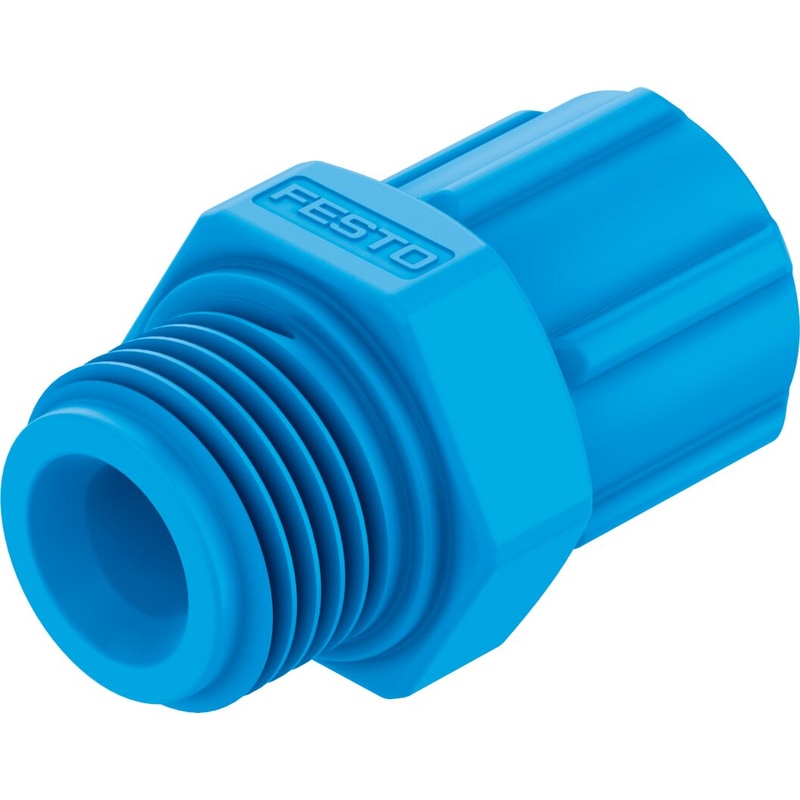

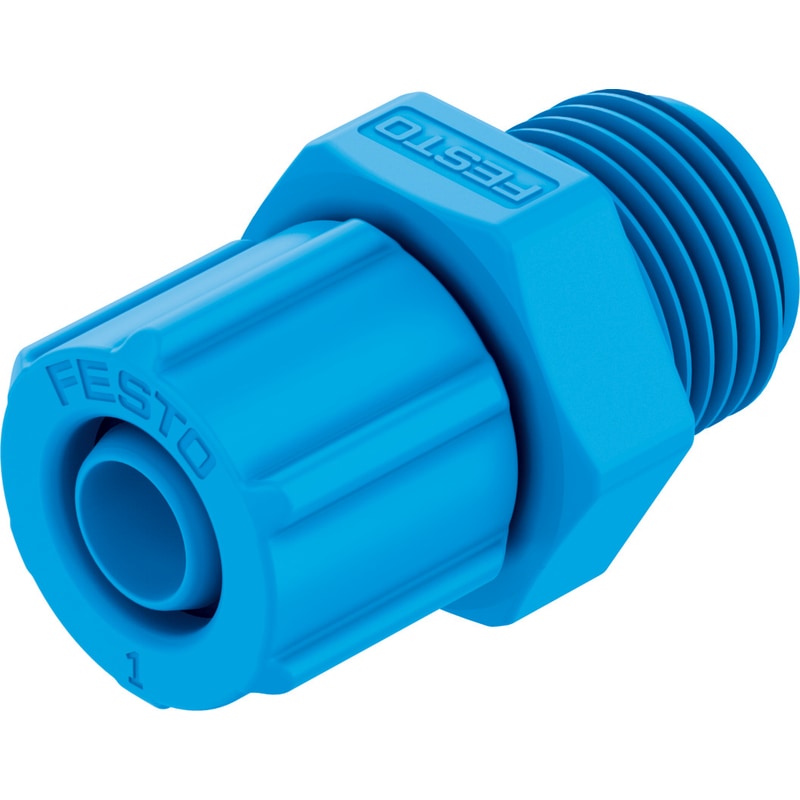

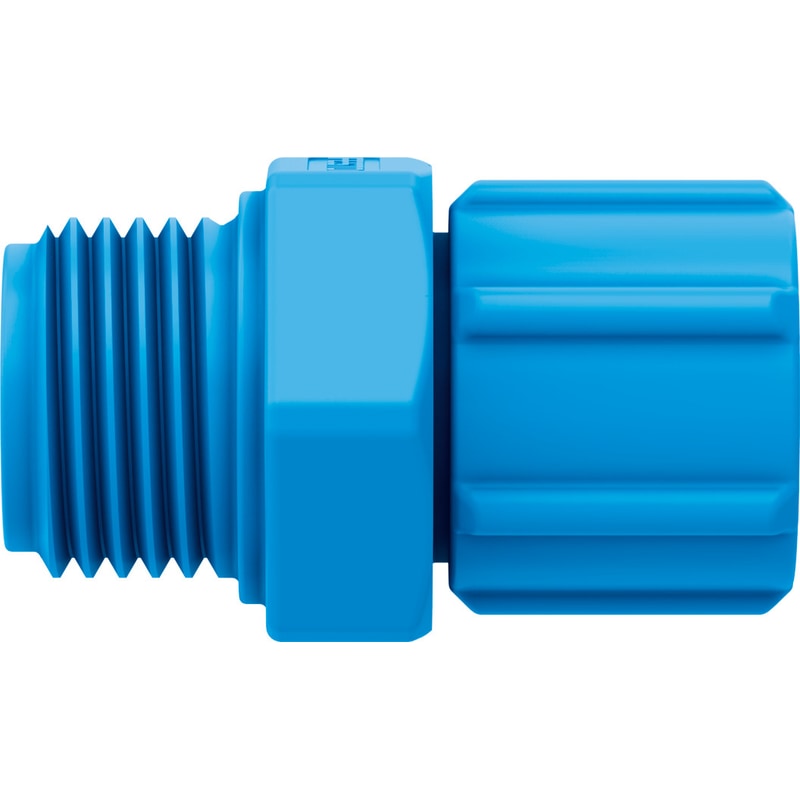

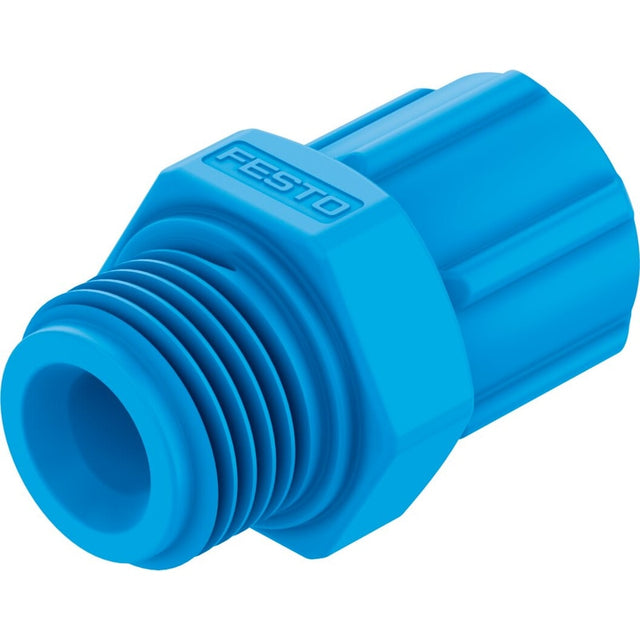

Quick connector
CK-1/8-PK-4-KU
6254
GTIN 4052568019556
Vendor Festo
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm - for barbed fitting, inside diameter 4 mm, with nut
- Ambient temperature
- -10 °C - 60 °C
Regular price
$3.14
Unit price
CK-1/8-PK-4-KU Quick connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CK-1/8-PK-4-KU
Regular price
$3.14
Unit price
CK-1/8-PK-4-KU Quick connector is backordered and will ship as soon as it is back in stock.
quick connector CK-1/8-PK-4-KU Male thread with sealing ring, polymeric design. Nominal size=3,4 mm, Type of seal on screw-in stud=Sealing edge, Assembly position=Any, Operating pressure complete temperature range=0 - 10 bar, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer's declaration at www.festo.com)
| Fitting Type | n/a |
|---|---|
| Nominal size | 3.4 mm |
| Type of seal on screw-in stud | Sealing edge |
| Assembly position | Any |
| Operating pressure complete temperature range | 0 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| connection 1 | Male thread G1/8 |
| connection 2 | For tubing outside diameter 6 mm |
| Materials note | Conforms to RoHS |
| Material housing | POM |
