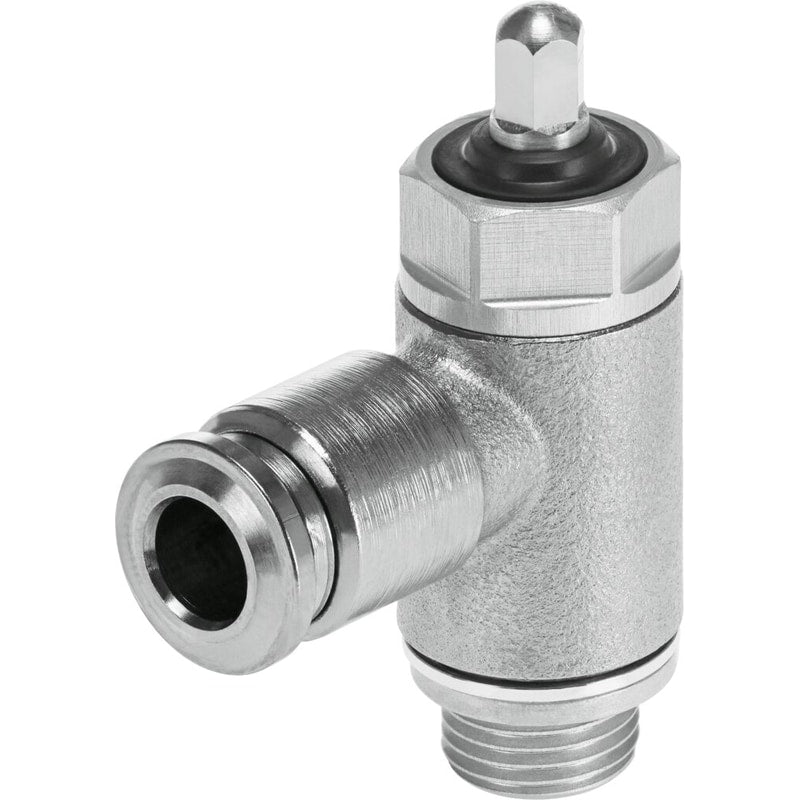

One-way flow control valve
VFOH-LE-A-G14-Q10
578801
GTIN 4052568262754
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction
- 520 l/min
- Standard nominal flow rate in non-return direction
- 345 l/min - 535 l/min
- Pneumatic connection 1
- QS-10
- Adjusting element
- External hexagon
Regular price
$57.34
Unit price
VFOH-LE-A-G14-Q10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VFOH-LE-A-G14-Q10
Regular price
$57.34
Unit price
VFOH-LE-A-G14-Q10 is backordered and will ship as soon as it is back in stock.
| Type code | VFOH-LE |
|---|---|
| Valve function | Exhaust air flow control non-return function |
| Pneumatic connection 1 | QS-10 |
| Pneumatic connection 2 | G¼ |
| Actuation type | Manual |
| Adjusting element | External hexagon |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 520 l/min |
| Standard nominal flow rate in non-return direction | 345 l/min ... 535 l/min |
| Ambient temperature | 0 °C ... 150 °C |
| Mounting position | Any |
| Symbol | 991452 |
| Operating pressure for entire temperature range | 0.2 bar ... 10 bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 840 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 635 l/min ... 790 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Storage temperature | -10 °C ... 150 °C |
| Temperature of medium | 0 °C ... 150 °C |
| Nominal tightening torque | 5 Nm |
| Tolerance for nominal tightening torque | ± 10% |
| Product weight | 48 g |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Hollow bolt material | Wrought aluminum alloy |
| Releasing ring material | Brass, nickel-plated |
| Material of adjusting screw | High-alloy stainless steel |
| Swivel joint material | BrassNickel-plated |
