Plug connector

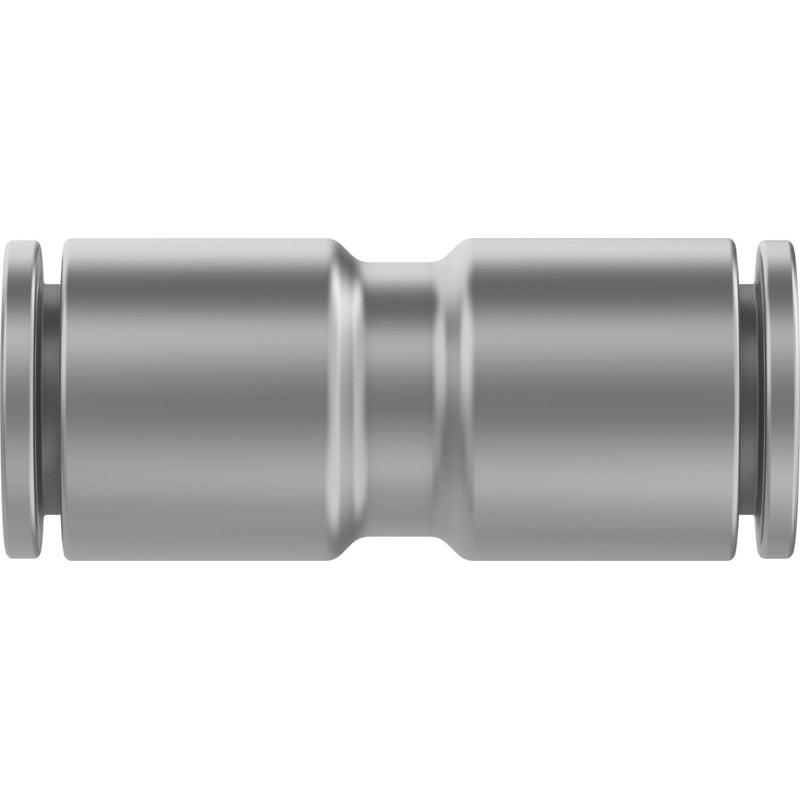

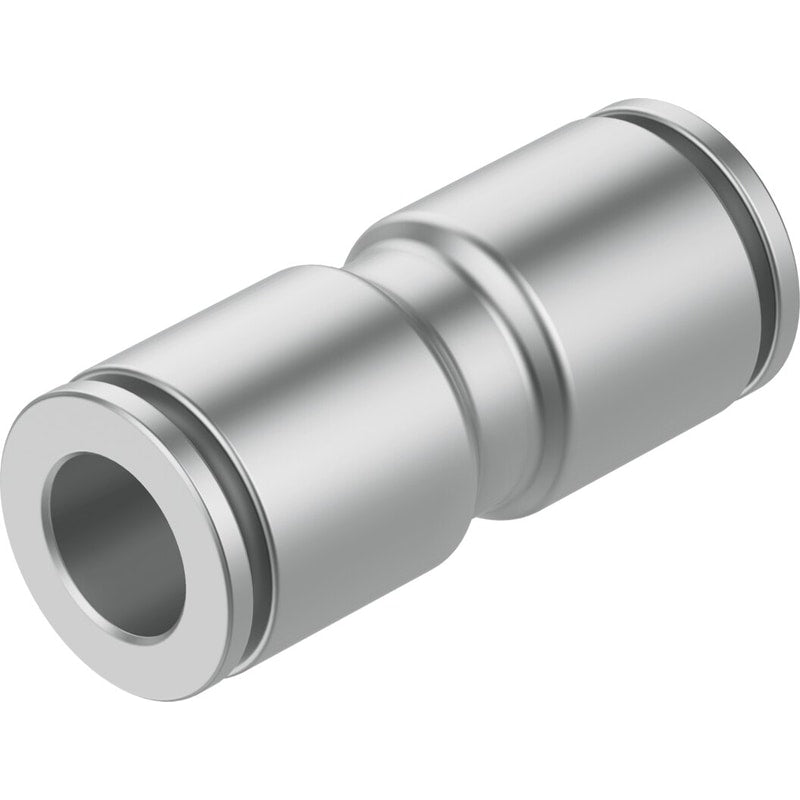

NPQH-D-Q14-E-P10 plug connector
578328
GTIN 4052568060312
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 14 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 14 mm
- Operating pressure for entire temperature range
- -0.95 bar - 20 bar
- Ambient temperature
- 0 °C - 150 °C
- Nominal width
- 13 mm
Regular price
$15.95
Unit price
NPQH-D-Q14-E-P10 plug connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQH-D-Q14-E-P10 plug connector
Regular price
$15.95
Unit price
NPQH-D-Q14-E-P10 plug connector is backordered and will ship as soon as it is back in stock.
plug connector NPQH-D-Q14-E-P10 Size=Standard, Nominal size=13 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
| Fitting Type | Union Straight |
|---|---|
| Size | Standard |
| Nominal size | 13 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 20 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | 0 ... 150 °C |
| Product weight | 49.2 g |
| connection 1 | For tubing outside diameter 14 mm |
| connection 2 | For tubing outside diameter 14 mm |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
| Material release ring | Nickel-plated brass |
| Material of tubing seal | FPM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
