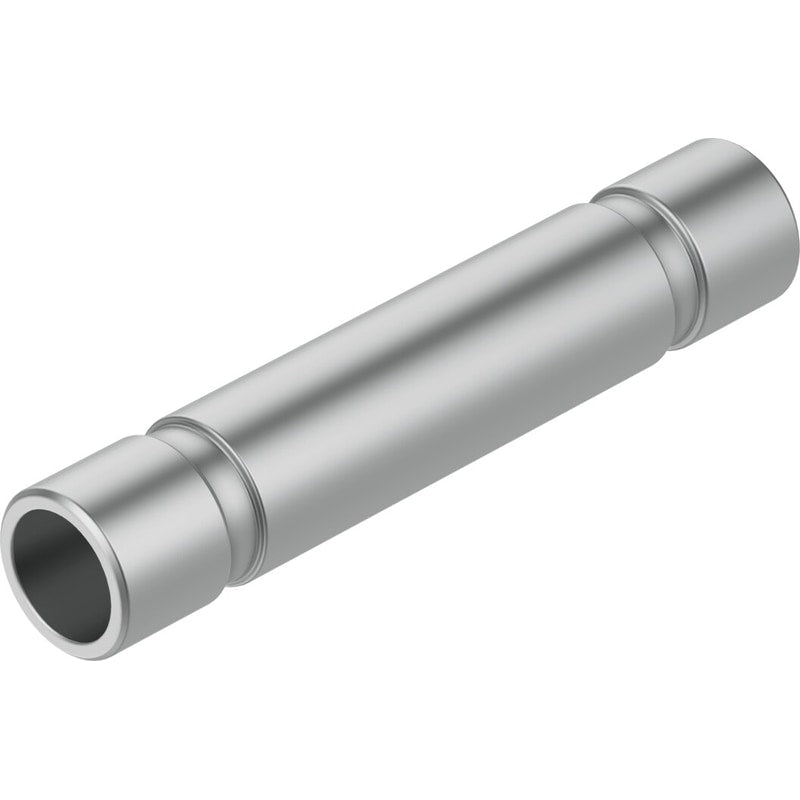

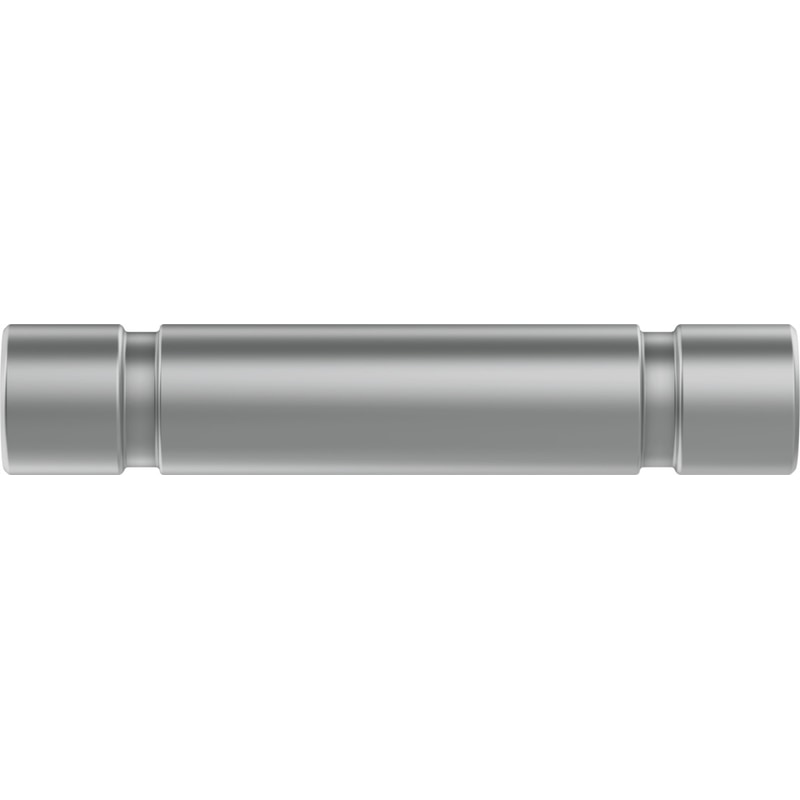

Push-in sleeve
NPQH-D-S4-E-P10
578317
GTIN 4052568060206
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 4 mm
- Pneumatic connection 2
- Push-in sleeve Ø 4 mm
- Operating pressure for entire temperature range
- -0.95 bar - 20 bar
- Ambient temperature
- 0 °C - 150 °C
- Nominal width
- 2 mm
Regular price
$4.11
Unit price
NPQH-D-S4-E-P10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQH-D-S4-E-P10
Regular price
$4.11
Unit price
NPQH-D-S4-E-P10 Push-in sleeve is backordered and will ship as soon as it is back in stock.
push-in sleeve NPQH-D-S4-E-P10 Size=Standard, Nominal size=2 mm, Assembly position=Any, Container size=10, Operating pressure complete temperature range=-0,95 - 20 bar
| Fitting Type | n/a |
|---|---|
| Size | Standard |
| Nominal size | 2 mm |
| Assembly position | Any |
| Container size | 10 |
| Operating pressure complete temperature range | '-0.95 ... 20 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | 0 ... 150 °C |
| Product weight | 2.8 g |
| connection 1 | Push-in sleeve QS-4 |
| connection 2 | Push-in sleeve QS-4 |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
| Material release ring | Nickel-plated brass |
