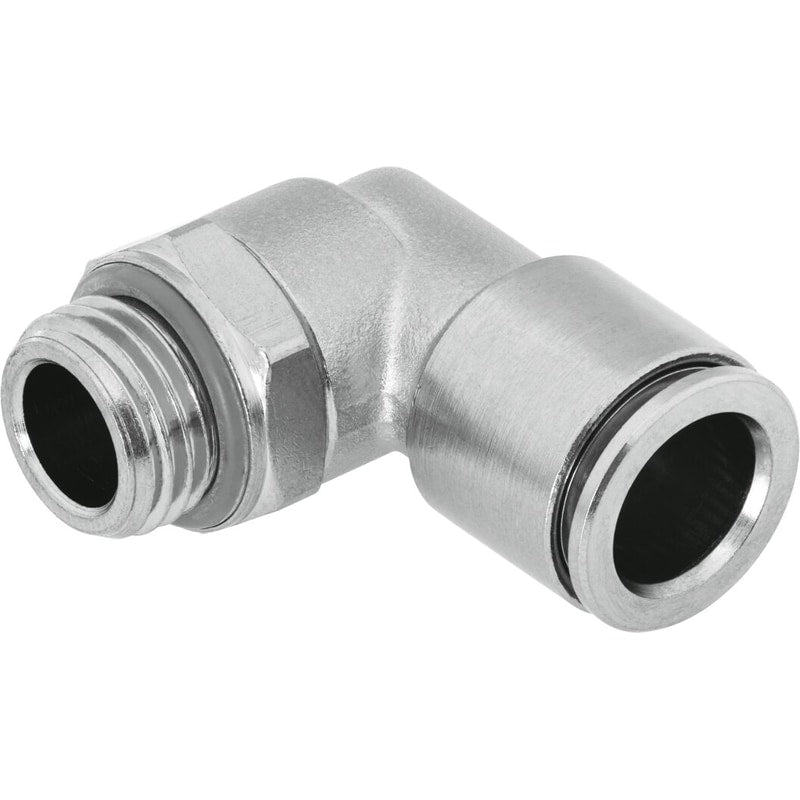

Push-in L-fitting
NPQH-L-G38-Q8-P10
578287
GTIN 4052568059903
Vendor Festo
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Operating pressure for entire temperature range
- -0.95 bar - 20 bar
- Ambient temperature
- 0 °C - 150 °C
- Nominal width
- 6 mm
Regular price
$8.51
Unit price
NPQH-L-G38-Q8-P10 Push-in L-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQH-L-G38-Q8-P10
Regular price
$8.51
Unit price
NPQH-L-G38-Q8-P10 Push-in L-fitting is backordered and will ship as soon as it is back in stock.
push-in L-fitting NPQH-L-G38-Q8-P10 Size=Standard, Nominal size=6 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=10
| Fitting Type | Male Elbow |
|---|---|
| Size | Standard |
| Nominal size | 6 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 20 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | 0 ... 150 °C |
| Max. tightening torque | 25 Nm |
| Product weight | 36.7 g |
| connection 1 | Male thread G3/8 |
| connection 2 | For tubing outside diameter 8 mm |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
| Material of threaded seal | FPM |
