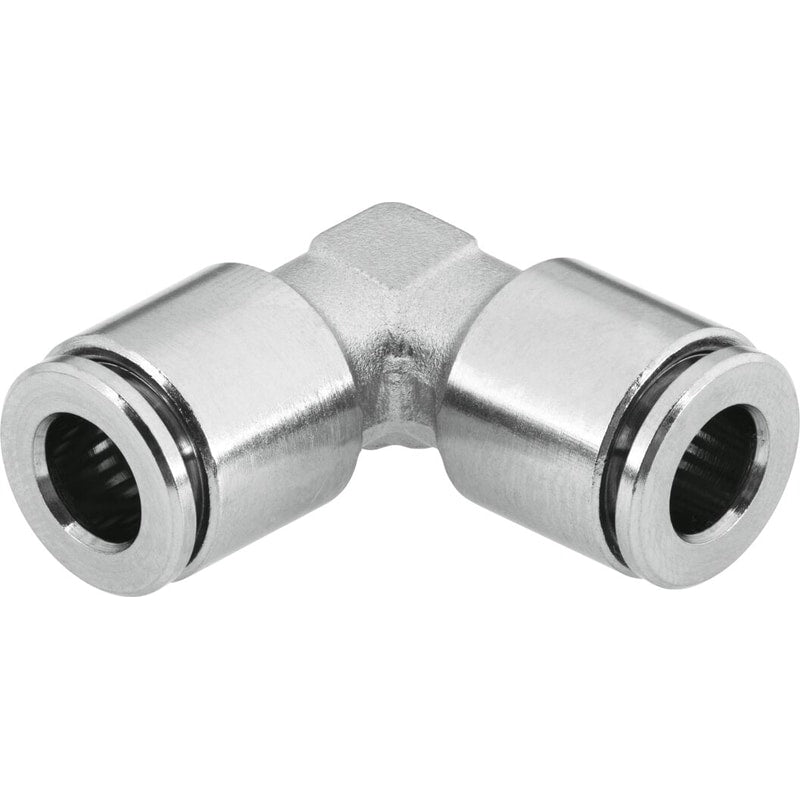

Push-in L-connector
NPQH-L-Q10-E-P10
578273
GTIN 4052568059767
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Operating pressure for entire temperature range
- -0.95 bar - 20 bar
- Ambient temperature
- 0 °C - 150 °C
- Nominal width
- 9 mm
Regular price
$9.67
Unit price
NPQH-L-Q10-E-P10 Push-in L-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQH-L-Q10-E-P10
Regular price
$9.67
Unit price
NPQH-L-Q10-E-P10 Push-in L-connector is backordered and will ship as soon as it is back in stock.
push-in L-connector NPQH-L-Q10-E-P10 Size=Standard, Nominal size=9 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
| Fitting Type | Union Elbow |
|---|---|
| Size | Standard |
| Nominal size | 9 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 20 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Food-safe | See Supplementary material information |
| Ambient temperature | 0 ... 150 °C |
| Product weight | 29.2 g |
| connection 1 | 10mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 10 mm |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
| Material release ring | Nickel-plated brass |
| Material of tubing seal | FPM |
| Material of tube retaining claw | High alloy steel, non-corrosive |
