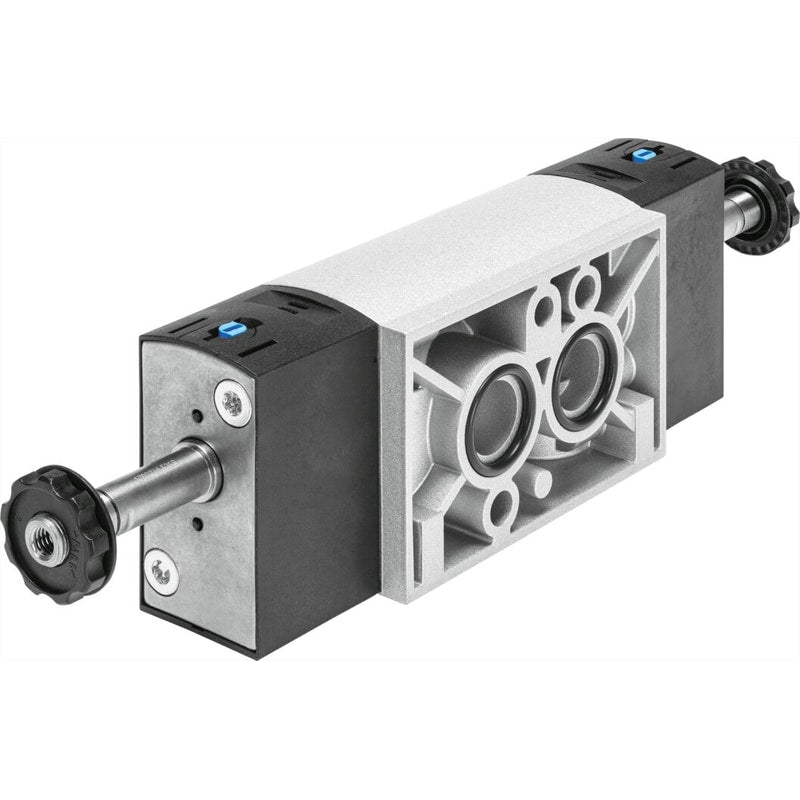

Air solenoid valve
VSNC-F-P53U-MD-N14-F8
577265
GTIN 4052568262488
Vendor Festo
- Structural design
- Piston gate valve
- Valve function
- 5/3, pressurized
- Normal nominal flow rate (normalized to DIN 1343)
- 950 l/min
- Operating pressure
- 3 bar - 10 bar
Regular price
$230.57
Unit price
VSNC-F-P53U-MD-N14-F8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSNC-F-P53U-MD-N14-F8
Regular price
$230.57
Unit price
VSNC-F-P53U-MD-N14-F8 is backordered and will ship as soon as it is back in stock.

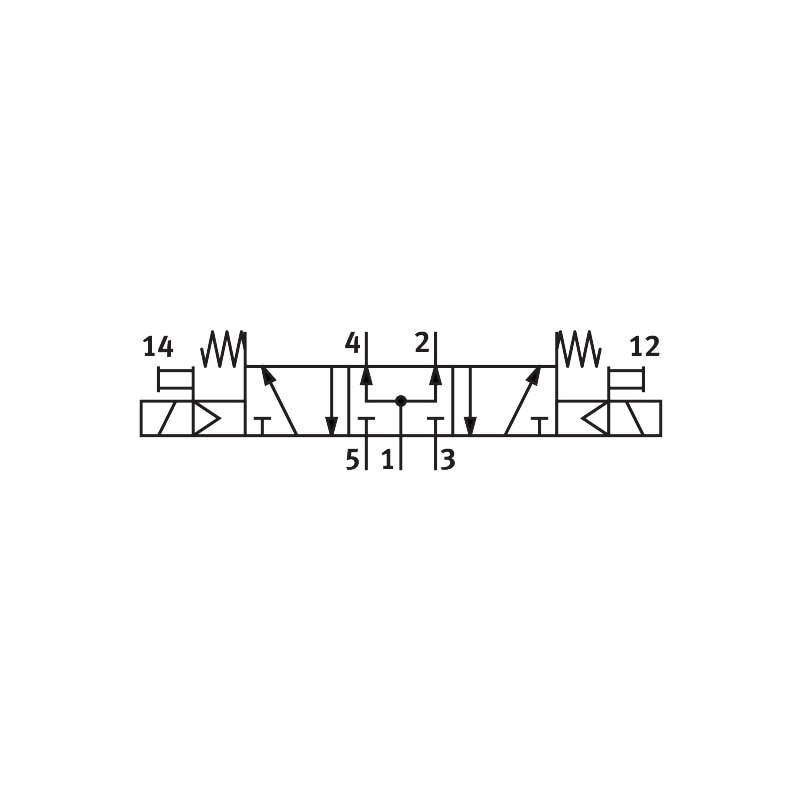

solenoid valve VSNC-F-P53U-MD-N14-F8 Valve function=5/3 pressurised, Type of actuation=electrical, Width=32 mm, Standard nominal flow rate=950 l/min, Operating pressure=3 - 10 bar
| Valve function | 5/3 pressurised |
|---|---|
| Type of actuation | electrical |
| Width | 32 mm |
| Standard nominal flow rate | 950 l/min |
| Operating pressure | 3 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Authorisation | c UL us - Recognized (OL) |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | detentingPushing |
