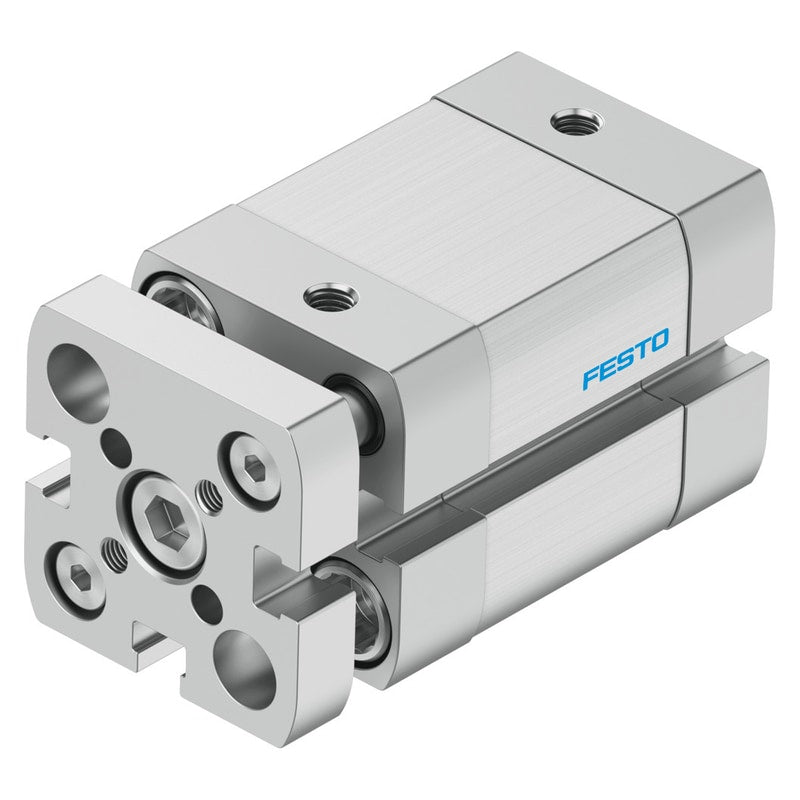

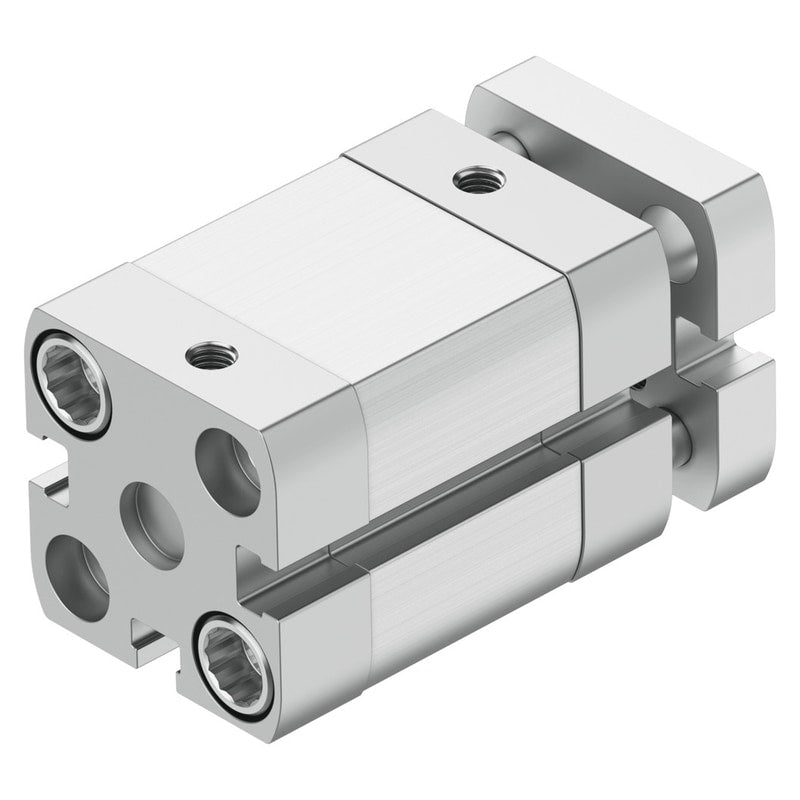

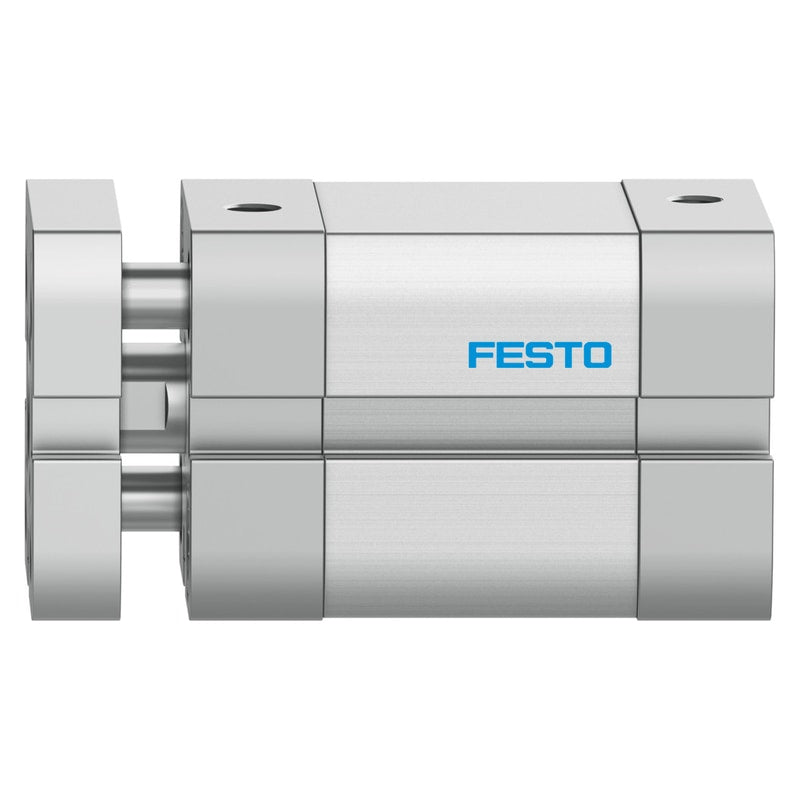

Compact cylinder
ADNGF-20-15-PPS-A
577209
GTIN 4052568225636
Vendor Festo
- Piston diameter
- 20 mm
- Theoretical force at 6 bar, advancing
- 188 N
- Stroke
- 15 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Position sensing
- For proximity sensor
Regular price
$152.85
Unit price
ADNGF-20-15-PPS-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ADNGF-20-15-PPS-A
Regular price
$152.85
Unit price
ADNGF-20-15-PPS-A is backordered and will ship as soon as it is back in stock.
compact cylinder ADNGF-20-15-PPS-A Stroke=15 mm, Piston diameter=20 mm, Based on the standard=ISO 21287, Cushioning=PPS: Self-adjusting pneumatic end-position cushioning, Assembly position=Any
| Stroke | 15 mm |
|---|---|
| Piston diameter | 20 mm |
| Based on the standard | ISO 21287 |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Protection against torque/guide | Guide rod with yoke |
| Operating pressure | 1.9 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
