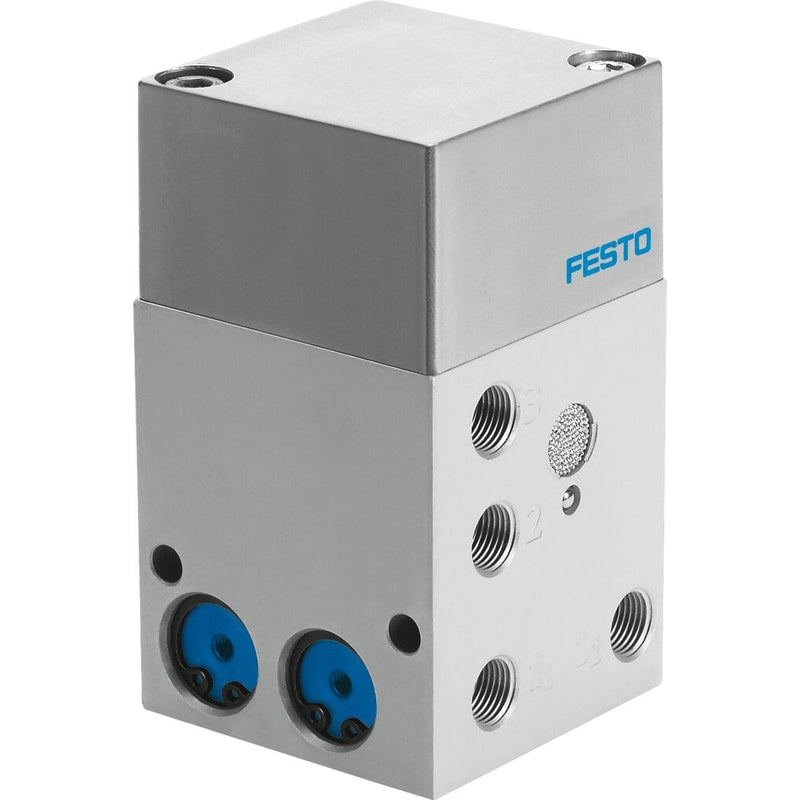

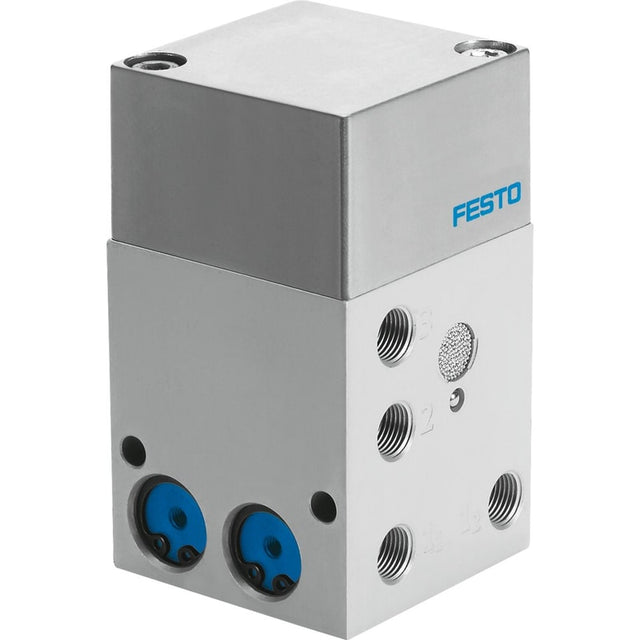

Control block for two-hand start
ZSB-1/8-B
576656
GTIN 4052568225407
Vendor Festo
Regular price
$1,258.12
Unit price
ZSB-1/8-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ZSB-1/8-B
Regular price
$1,258.12
Unit price
ZSB-1/8-B is backordered and will ship as soon as it is back in stock.
control block for two-hand start ZSB-1/8-B Nominal size=4 mm, Type of actuation=pneumatic, Assembly position=Any, Safety function=Two-hand operation, Performance level (PL)=Two-hand operation/Cat. 1, PLc
| Nominal size | 4 mm |
|---|---|
| Type of actuation | pneumatic |
| Assembly position | Any |
| Safety function | Two-hand operation |
| Performance level (PL) | Two-hand operation/Cat. 1, PLc |
| Operating pressure | 4 ... 8 bar |
| Standard nominal flow rate | 50 l/min |
| Certificate issuing department | IFA 1201046 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| CE mark (see declaration of conformity) | to EU directive for machinery |
| Shock resistance | Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
