Sub-base
VMPAC-AP-14-2
576573
GTIN 4052568104375
Vendor Festo
Regular price
$82.58
Unit price
VMPAC-AP-14-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPAC-AP-14-2
Regular price
$82.58
Unit price
VMPAC-AP-14-2 is backordered and will ship as soon as it is back in stock.

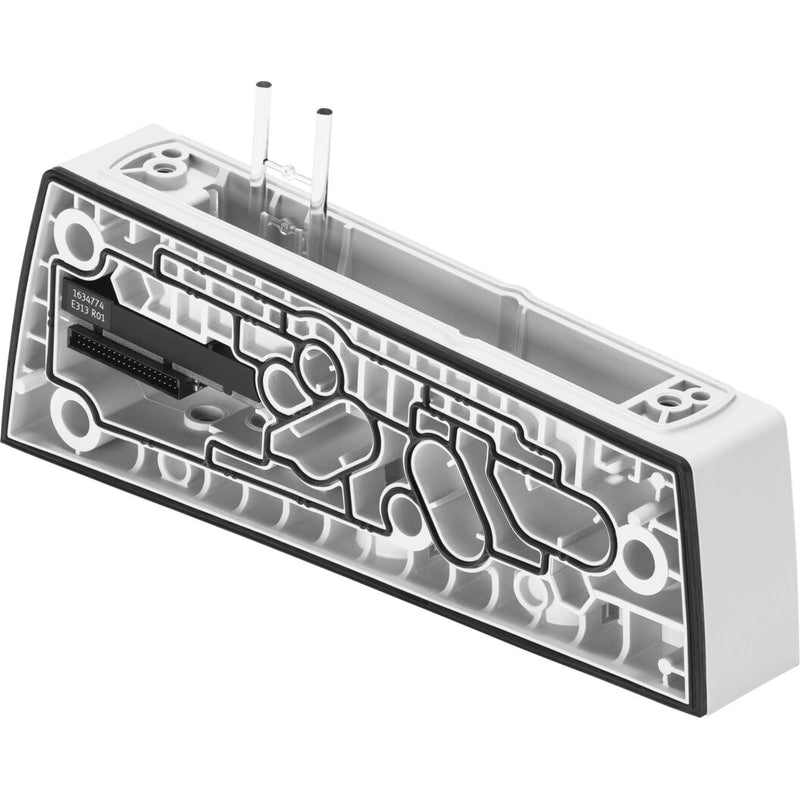

sub-base VMPAC-AP-14-2 Width=32,8 mm, Length=169 mm, Grid dimension=26,8 mm, Max. number of valve positions=1, Operating pressure=-0,9 - 8 bar
| Width | 32.8 mm |
|---|---|
| Length | 169 mm |
| Grid dimension | 26.8 mm |
| Max. number of valve positions | 1 |
| Operating pressure | '-0.9 ... 8 bar |
| Pilot pressure | 3 ... 8 bar |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 160 g |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Materials note | Conforms to RoHS |
| Material housing | PA-reinforced |
