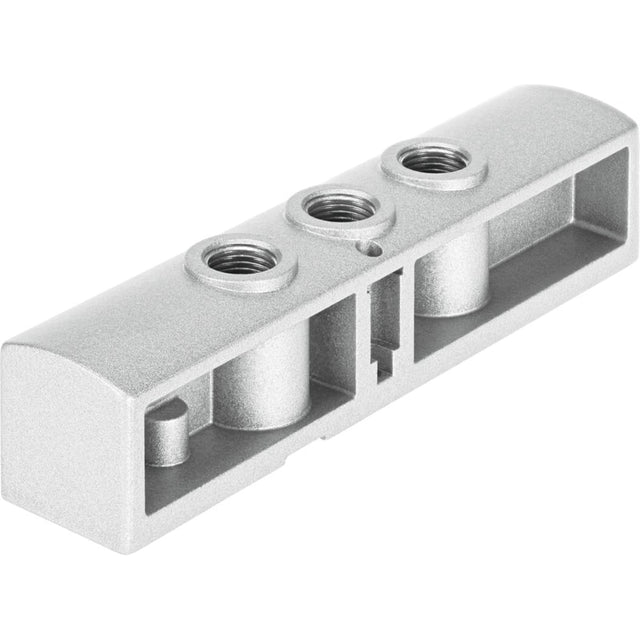

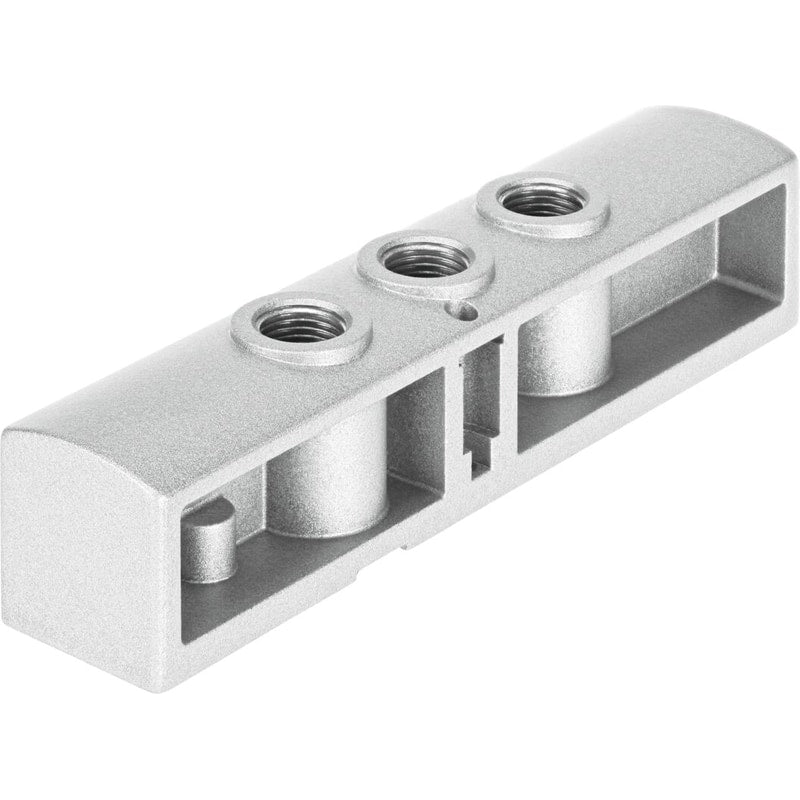

Supply plate
VABF-B10-20-P1A4-G18
576492
GTIN 4052568262365
Vendor Festo
Regular price
$7.46
Unit price
VABF-B10-20-P1A4-G18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-B10-20-P1A4-G18
Regular price
$7.46
Unit price
VABF-B10-20-P1A4-G18 is backordered and will ship as soon as it is back in stock.
supply plate VABF-B10-20-P1A4-G18 Operating pressure=-0,9 - 10 bar, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Max. tightening torque=1,4 Nm, Product weight=78 g, Mounting type=with through hole
| Operating pressure | '-0.9 ... 10 bar |
|---|---|
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Max. tightening torque | 1.4 Nm |
| Product weight | 78 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Materials note | Conforms to RoHS |
| Material supply plate | Aluminium die cast |
