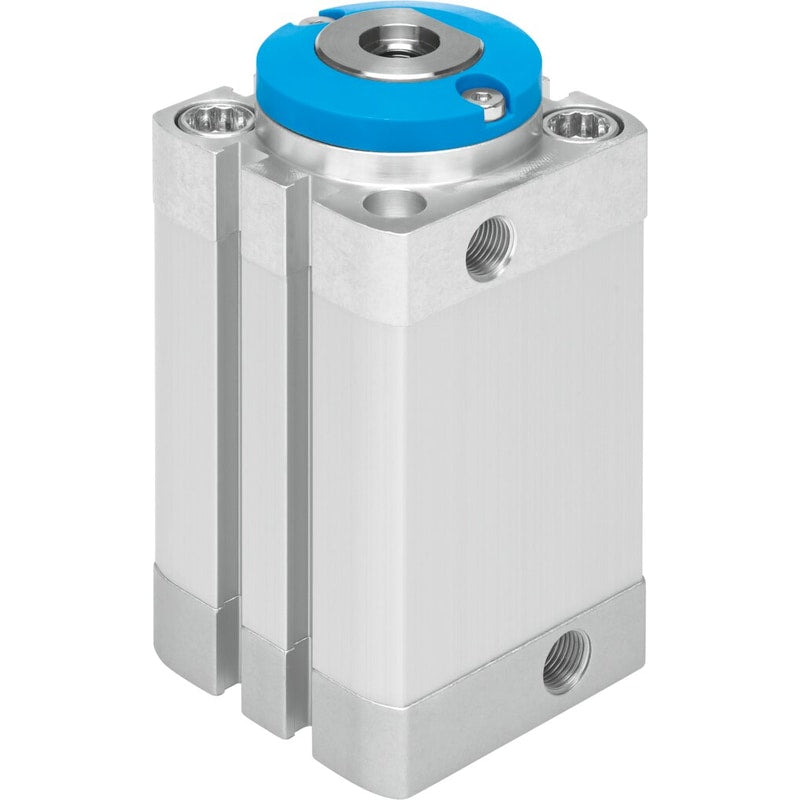

Stopper cylinder
DFSP-Q-40-25-DF-PA
576139
GTIN 4052568225032
Vendor Festo
- Piston diameter
- 40 mm
- Permissible impact force on the advanced piston rod
- 5540 N
- Stroke
- 25 mm
- Position sensing
- For proximity sensor
Regular price
$285.70
Unit price
DFSP-Q-40-25-DF-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFSP-Q-40-25-DF-PA
Regular price
$285.70
Unit price
DFSP-Q-40-25-DF-PA is backordered and will ship as soon as it is back in stock.
stopper cylinder DFSP-Q-40-25-DF-PA Stroke=25 mm, Piston diameter=40 mm, Piston rod thread=M8, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 25 mm |
|---|---|
| Piston diameter | 40 mm |
| Piston rod thread | M8 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | PistonPiston rodProfile barrelNon-rotating |
| Position detection | For proximity sensor |
| Piston-rod end | Female thread |
| Variants | Non-rotating piston rod |
| Protection against torque/guide | Flattened piston rod |
| Operating pressure | 1 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
