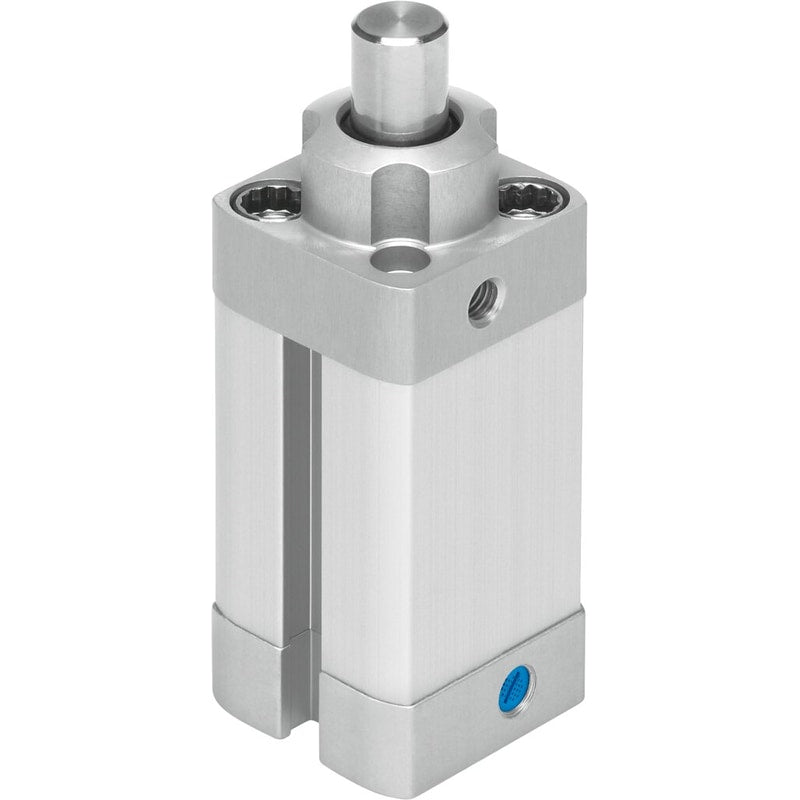

Stopper cylinder
DFSP-20-15-PS-PA
576079
GTIN 4052568224431
Vendor Festo
- Piston diameter
- 20 mm
- Permissible impact force on the advanced piston rod
- 1370 N
- Stroke
- 15 mm
- Position sensing
- For proximity sensor
Regular price
$153.11
Unit price
DFSP-20-15-PS-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFSP-20-15-PS-PA
Regular price
$153.11
Unit price
DFSP-20-15-PS-PA is backordered and will ship as soon as it is back in stock.
stopper cylinder DFSP-20-15-PS-PA Stroke=15 mm, Piston diameter=20 mm, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any, Mode of operation=(* single-acting, * pulling action)
| Stroke | 15 mm |
|---|---|
| Piston diameter | 20 mm |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | single-actingpulling action |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Protection against torque/guide | round piston rod |
| Operating pressure | 1.6 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
