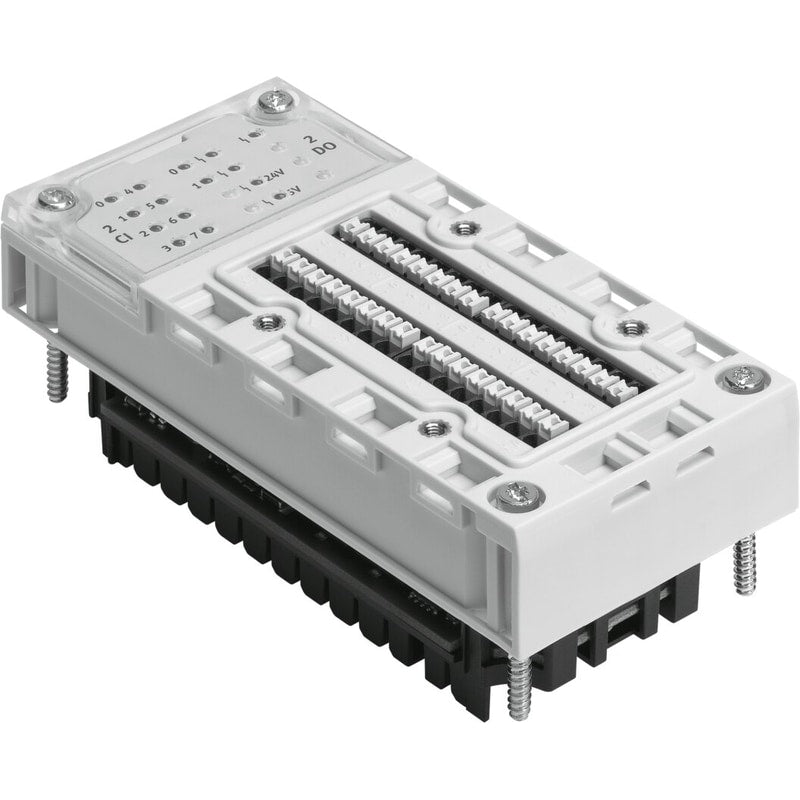

CPX-2ZE2DA
Regular price
$805.46
Unit price
CPX-2ZE2DA is backordered and will ship as soon as it is back in stock.
input/output module CPX-2ZE2DA Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), Grid dimension=50 mm, No. of outputs=2, No. of inputs=2, Diagnosis=- betriebsartenabh. Diagnose
| Dimensions W x L x H | (incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm |
|---|---|
| Grid dimension | 50 mm |
| No. of outputs | 2 |
| No. of inputs | 2 |
| Diagnosis | '- Operating mode-dependent diagnostics |
| Parameters configuring | Switch-on/off delayFrequency outputSpeed measurementPulse outputPulse trainRotational speed measurementFrequency measurementCycle duration measurementEngine operating modeDetermination of positionPulse width modulationOne-off countingContinuous countingPeriodic counting |
| LED displays | '- 1 Group diagnosis- 10 Channel status- 2 Module diagnostics- 2 Channel diagnostics |
| Input debounce time | 0.1 µs (0.2 µs, 0.4 µs, 0.8 µs, 1 µs, 2 µs, 4 µs, 8 µs, 10 µs, 50 µs, 100 µs, 500 µs, 1 ms, 3 ms, 10 ms, 20 ms parameterisable) |
| Protection (short circuit) | Internal electronic fuse protection per channel |
| Operating voltage range DC | 18 ... 30 V |
| Intrinsic current consumption at operating voltage | Type 35 mA |
| Max. power supply per channel | 5 A adjustable (20 W lamp load) |
| Max. residual current outputs per module | 0.416666666666667 |
