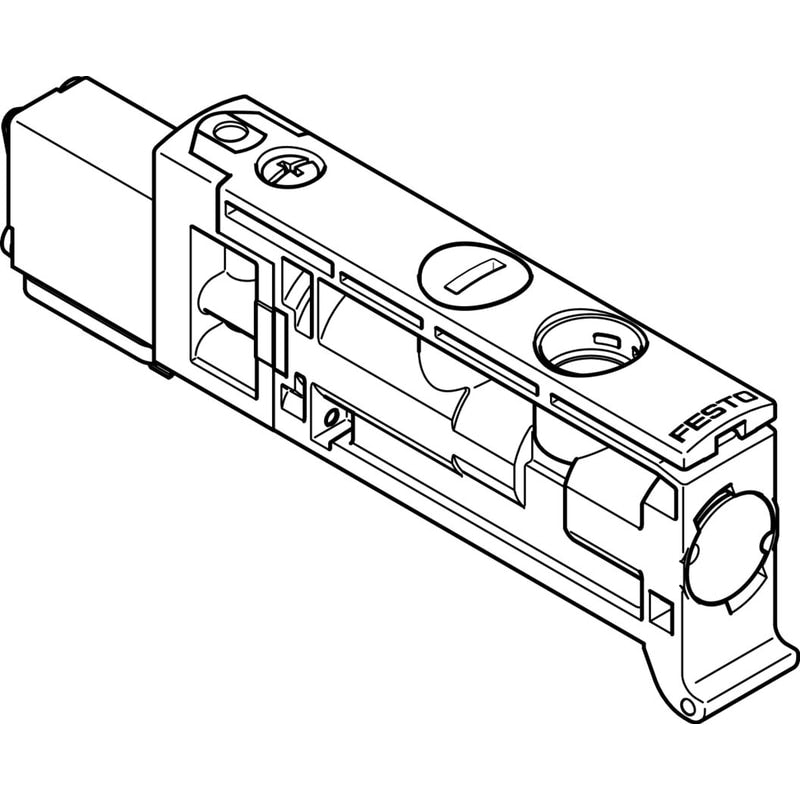

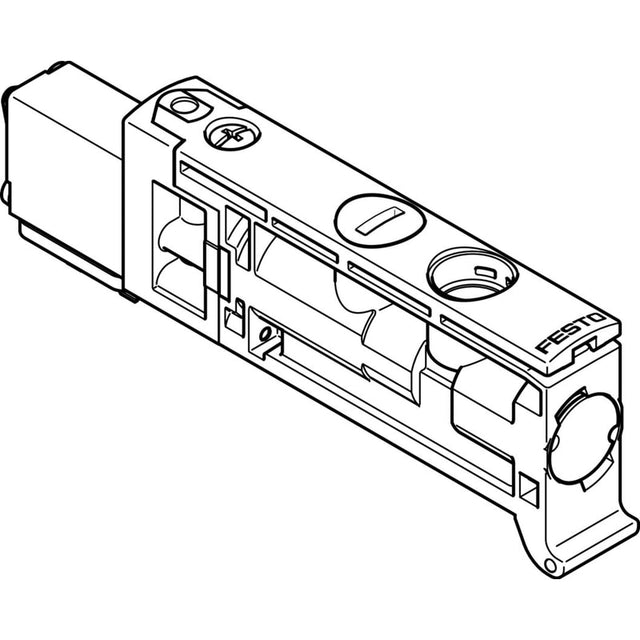

Air solenoid valve
VUVB-ST12-M32U-MZD-QX-1T1
576003
GTIN 4052568104290
Vendor Festo
- Valve function
- 3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 240 l/min - 400 l/min
- Pneumatic connection 1
- Sub-base
- Actuation type
- Electrical
Regular price
$136.76
Unit price
VUVB-ST12-M32U-MZD-QX-1T1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVB-ST12-M32U-MZD-QX-1T1
Regular price
$136.76
Unit price
VUVB-ST12-M32U-MZD-QX-1T1 is backordered and will ship as soon as it is back in stock.
solenoid valve VUVB-ST12-M32U-MZD-QX-1T1 Valve function=3/2 open, monostable, Type of actuation=electrical, Valve size=12 mm, Standard nominal flow rate=240 - 400 l/min, Operating pressure=2,8 - 8 bar
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Valve size | 12 mm |
| Standard nominal flow rate | 240 ... 400 l/min |
| Operating pressure | 2.8 ... 8 bar |
| Design structure | Poppet valve with spring return |
| Protection class | IP65 |
| Nominal size | 4 mm |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingPushing |
| Type of piloting | Piloted |
