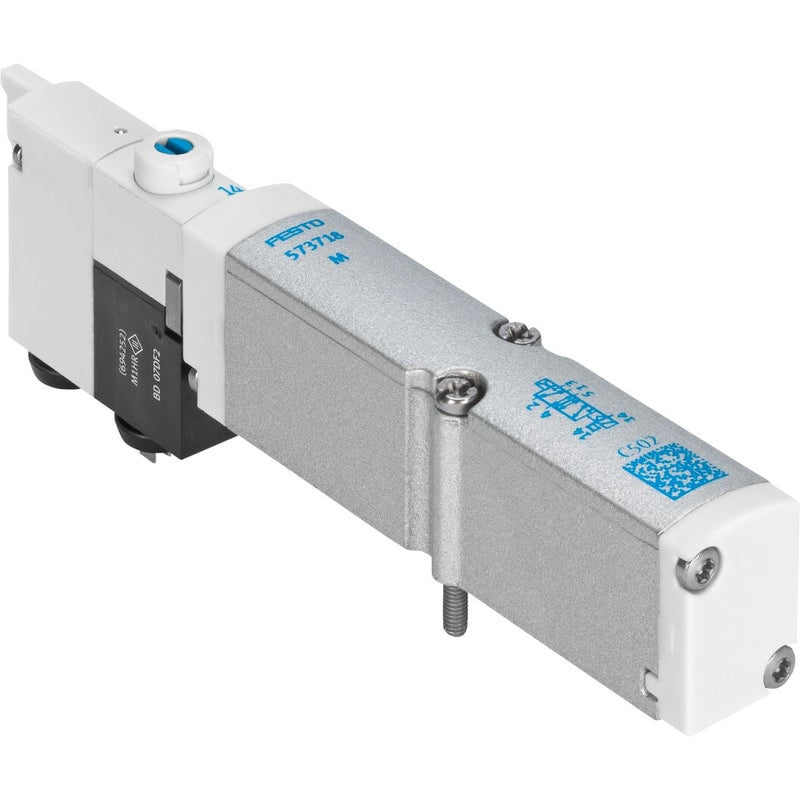

Air solenoid valve
VMPA14-M1H-DS-PI
575978
GTIN 4052568261771
Vendor Festo
- Valve function
- 2x2/2 closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 500 l/min - 570 l/min
- Actuation type
- Electrical
Regular price
$188.67
Unit price
VMPA14-M1H-DS-PI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-M1H-DS-PI
Regular price
$188.67
Unit price
VMPA14-M1H-DS-PI is backordered and will ship as soon as it is back in stock.
| Valve function | 2x2/2 closed, monostable |
|---|---|
| Relative air humidity | Max. 90 % at 40 °C |
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 14 mm |
| Standard nominal flow rate | 570 l/min |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar ... 8 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65as per IEC 60529 |
| Certification | c CSA us (OL)c UL us - Recognized (OL) |
| Type code | VMPA1 |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Flow direction | Reversible |

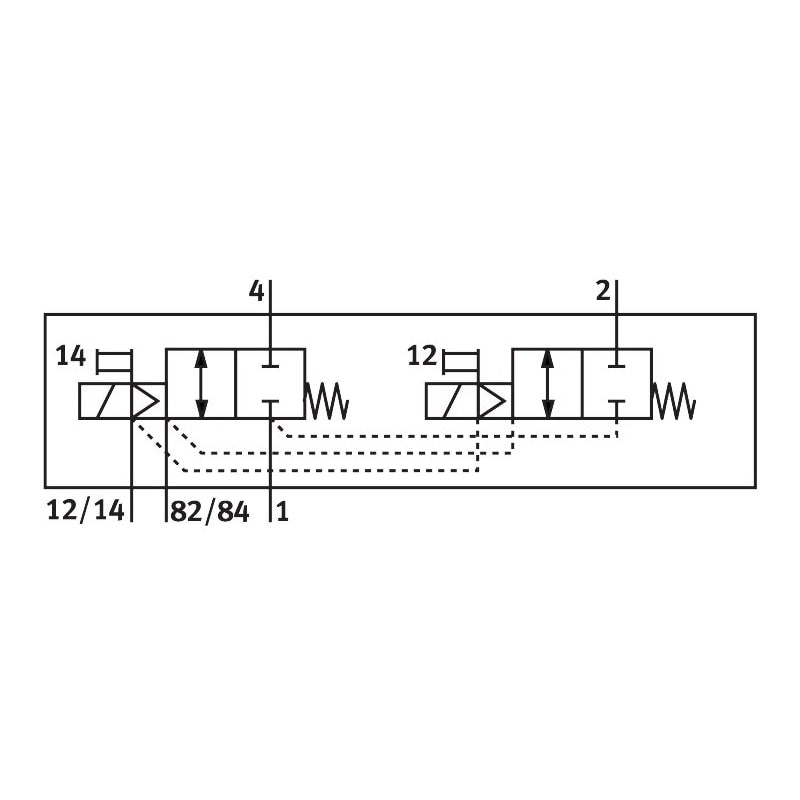

| Symbol | 992877 |
| Signal status display | yes |
| Pilot pressure | 3 bar ... 8 bar |
| Suitability for vacuum | yes |
| Standard nominal flow rate with QS-6 | 570 l/min |
| On switching time | 10 ms |
| Max. positive test pulse with 0 signal | 400 µs |
| Max. negative test pulse on 1 signal | 200 µs |
| Permissible voltage fluctuations | +/- 25 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Storage temperature | -20 °C ... 40 °C |
| Temperature of medium | -5 °C ... 50 °C |
| Ambient temperature | -5 °C ... 50 °C |
| Max. tightening torque for valve mounting | 0.25 Nm |
| Product weight | 77 g |
| Type of mounting | With through-hole |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
