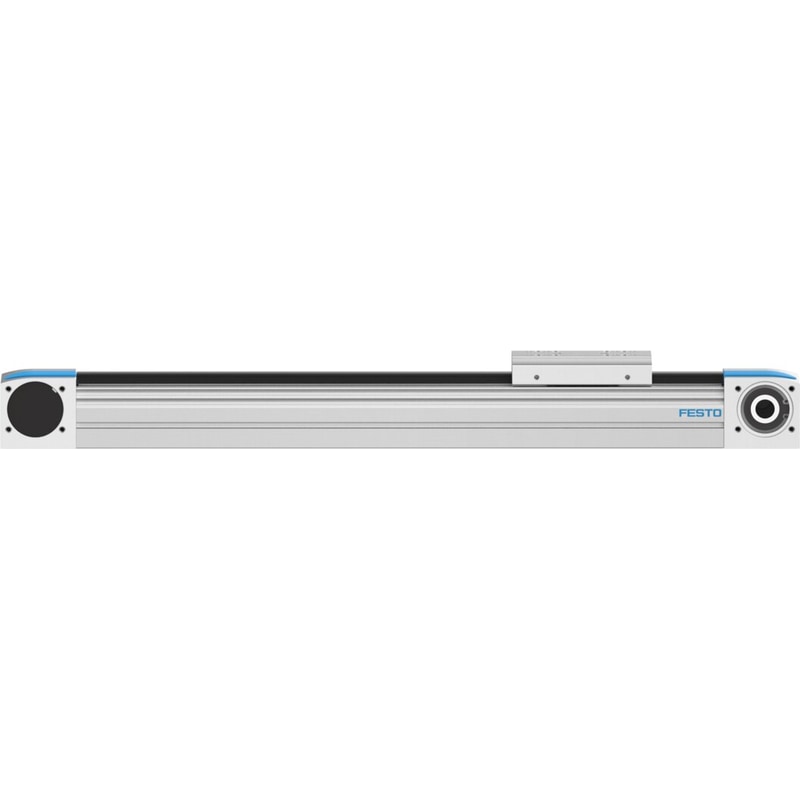

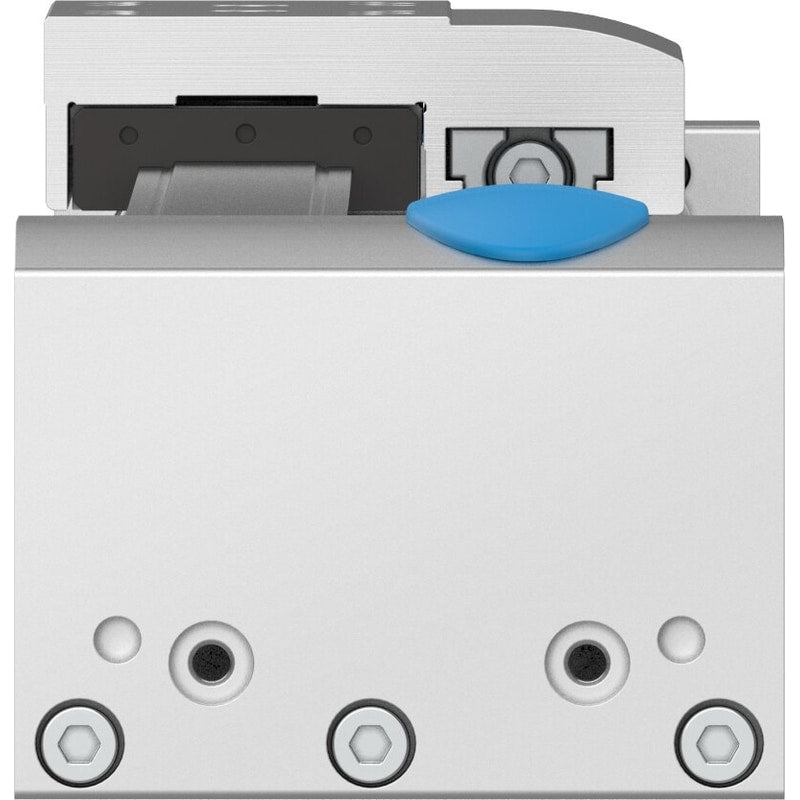

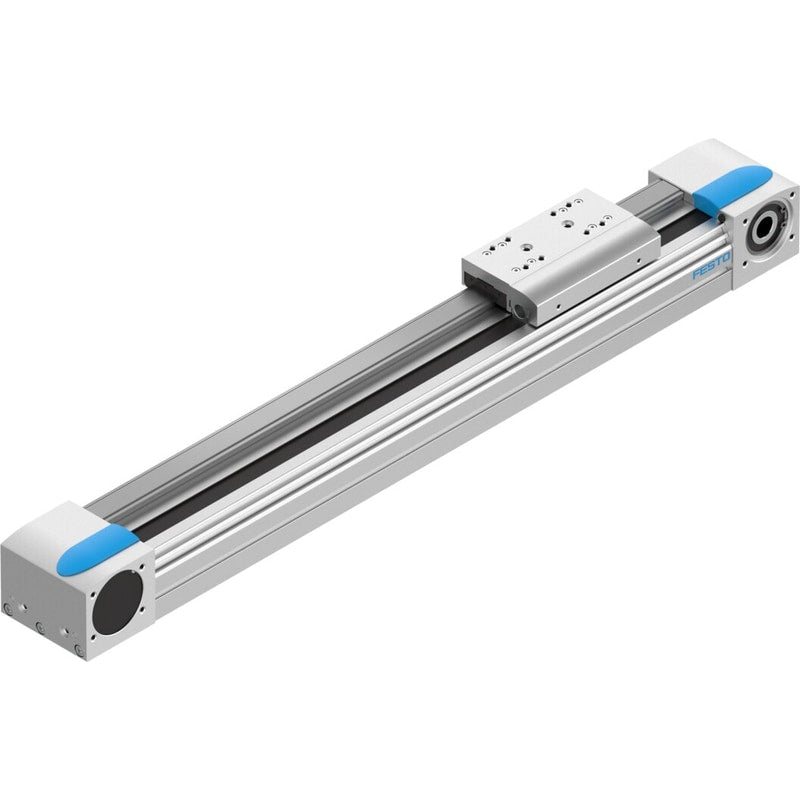

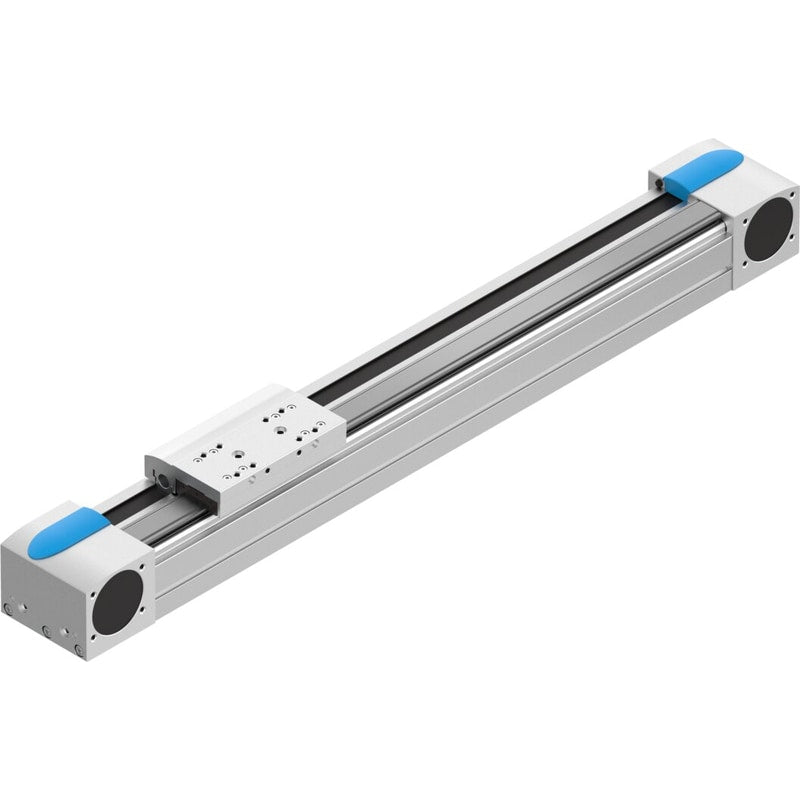

Belt driven linear actuator
EGC-80-400-TB-KF-0H-GK
575832
GTIN 4052568261740
Vendor Festo
- Size
- 80
- Max. feed force Fx
- 350 N
- Repetition accuracy
- ±0.08 mm
- Working stroke
- 400 mm
Regular price
$2,165.40
Unit price
EGC-80-400-TB-KF-0H-GK is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGC-80-400-TB-KF-0H-GK
Regular price
$2,165.40
Unit price
EGC-80-400-TB-KF-0H-GK is backordered and will ship as soon as it is back in stock.
| Drive pinion effective diameter | 28.65 mm |
|---|---|
| Working stroke | 400 mm |
| Size | 80 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.0024 |
| Toothed belt pitch | 3 mm |
| Type code | EGC |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Servo motorStepper motor |
| Symbol | 991212 |
| Max. acceleration | 50 m/s² |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0.08 mm |
| Duty cycle | 1 |
| Degree of protection | IP40 |
| Ambient temperature | -10 °C ... 60 °C |
| 2nd moment of area Ix | 844000 mmâ´ |
| 2nd moment of area Iy | 1160000 mmâ´ |
| Max. force Fy | 3050 N |
| Max. force Fz | 3050 N |
| Max. no-load resistance to shifting | 28 N |
| Max. feed force Fx | 350 N |
| Torsion moment of inertia It | 551000 mmâ´ |
| Mass moment of inertia JH per meter of stroke | 0.19 kgcm² |
| Mass moment of inertia JL per kg of payload | 2.05 kgcm² |
| Feed constant | 90 mm/U |
| Material of end caps | Wrought aluminum alloyAnodized |
| Profile material | Wrought aluminum alloyAnodized |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Drive cover material | AnodizedWrought aluminum alloy |
| Slide carriage material | Steel |
| Guide rail material | Steel |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Cast stainless steel |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
