Plug

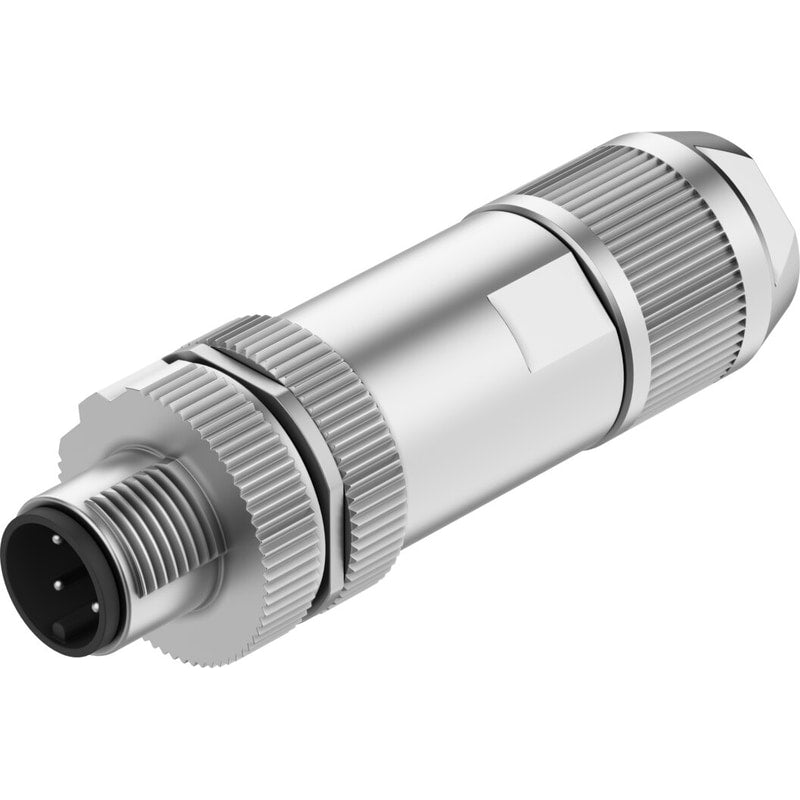

NECU-M-S-A12G4-IS
575719
GTIN 4052568104191
Vendor Festo
- Electrical connection
- M12x1 - Plug, straight
- Connection cross section
- 0.14 mm² - 0.5 mm²
- Degree of protection
- IP65 - IP67
Regular price
$50.00
Unit price
NECU-M-S-A12G4-IS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-M-S-A12G4-IS
Regular price
$50.00
Unit price
NECU-M-S-A12G4-IS is backordered and will ship as soon as it is back in stock.
| Type code | NECU |
|---|---|
| Based on norm | EN 61076-2-101 |
| Explosion prevention and protection | Observe the information on the certificateZone 21 (ATEX)Zone 22 (ATEX)Zone 2 (ATEX)Zone 1 (ATEX) |
| Electrical connection | M12x14-pinPlug, straightSpring-loaded terminal |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 0.166666666666667 |
| Approved cable diameter | 4 mm ... 8 mm |
| Connection cross section | 0.14 mm² ... 0.5 mm² |
| Degree of protection | IP67IP65 |
| Ambient temperature | -40 °C ... 85 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Housing material | Nickel-platedDie-cast zinc |
| Material of pin contacts | Gold-platedBronze |
| Mounting position | Any |
| Plug coding | A |
