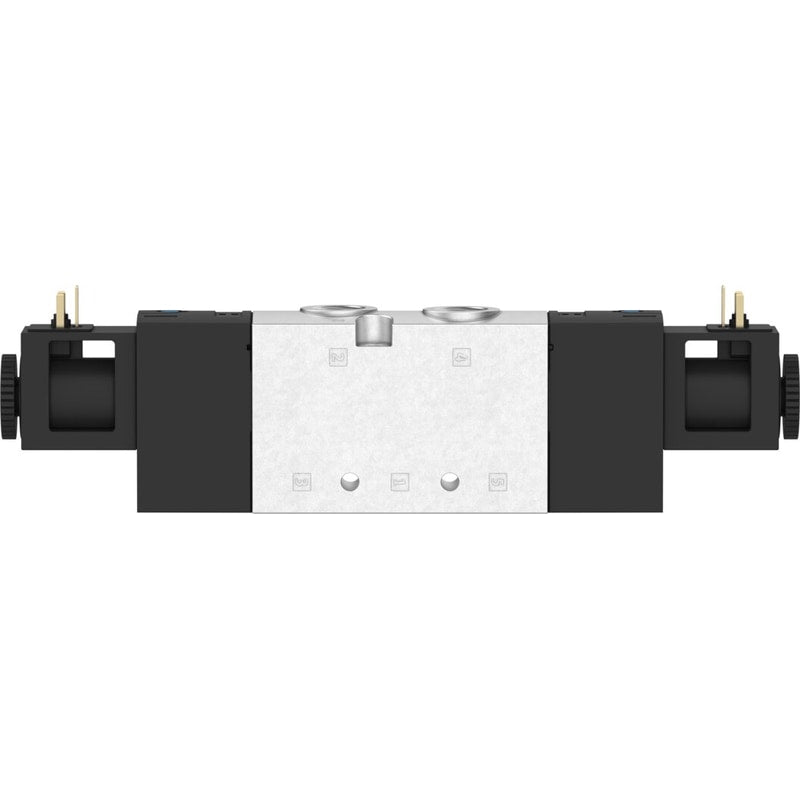

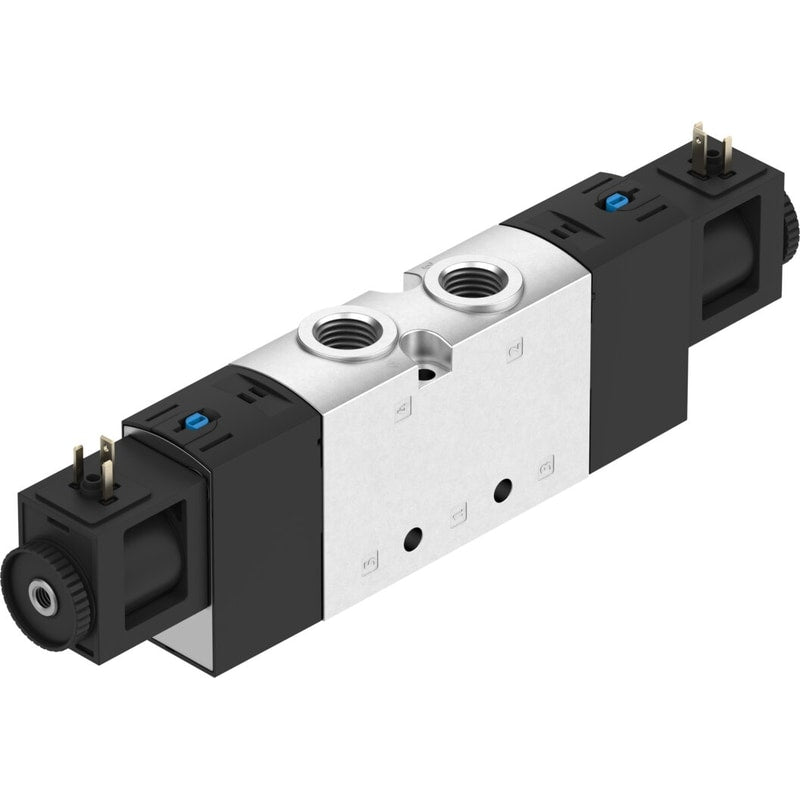

Air solenoid valve
VUVS-L25-P53C-MZD-G14-F8-1C1
575526
GTIN 4052568260835
Vendor Festo
- Valve function
- 5/3, closed
- Normal nominal flow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Electrical
Regular price
$132.16
Unit price
VUVS-L25-P53C-MZD-G14-F8-1C1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVS-L25-P53C-MZD-G14-F8-1C1
Regular price
$132.16
Unit price
VUVS-L25-P53C-MZD-G14-F8-1C1 is backordered and will ship as soon as it is back in stock.
Robust solenoid valve with easy handling.
| Valve function | 5/3, closed |
|---|---|
| Material of screws | Steel, galvanized |
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 26.5 mm |
| Standard nominal flow rate | 1200 l/min |
| Pneumatic working port | G1/4 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 bar ... 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | as per IEC 60529IP65With plug socket |
| Certification | c UL us - Recognized (OL) |
| Nominal width | 6.5 mm |
| Type code | VUVS |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |
| Flow direction | Reversible |

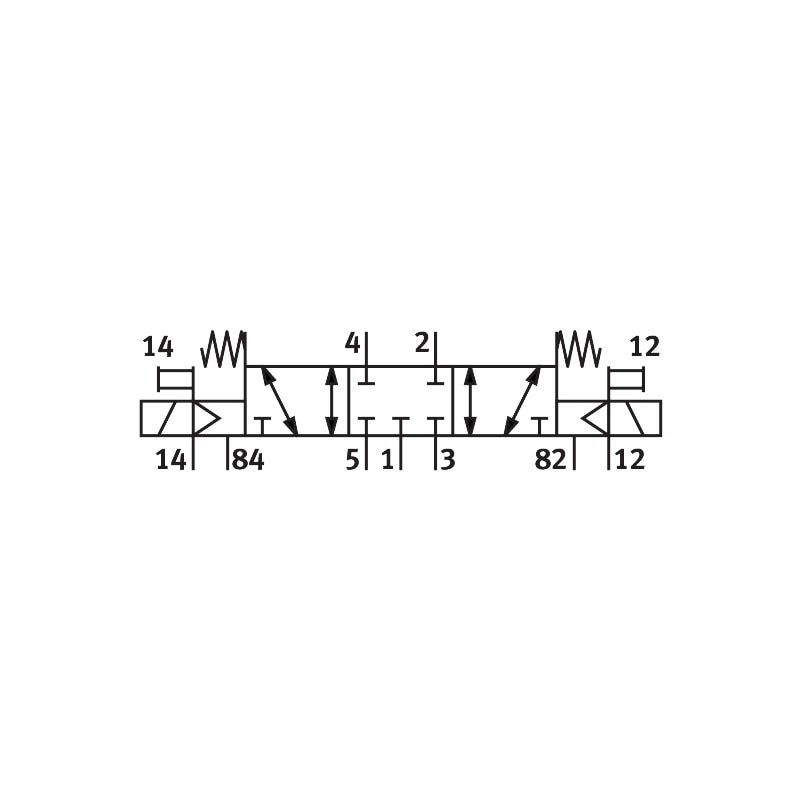

| Symbol | 00991020 |
| Pilot pressure | 2.5 bar ... 10 bar |
| b-value | 0.4 |
| C value | 5.2 l/sbar |
| Switching time off | 42 ms |
| On switching time | 13 ms |
| Changeover time | 26 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2000 µs |
| Max. negative test pulse on 1 signal | 3600 µs |
| Coil characteristics | 24 V DC: 3.3 W |
