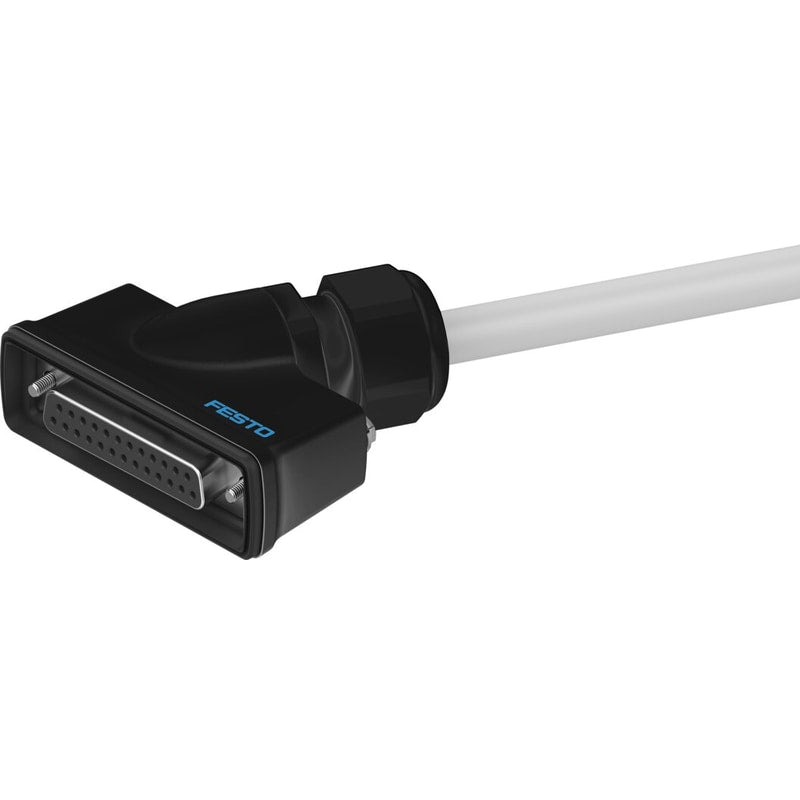

Connecting cable
NEBV-S1WA25-K-2.5-N-LE25-S9
575423
GTIN 4052568104030
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 2.5 m
Regular price
$120.35
Unit price
NEBV-S1WA25-K-2.5-N-LE25-S9 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBV-S1WA25-K-2.5-N-LE25-S9
Regular price
$120.35
Unit price
NEBV-S1WA25-K-2.5-N-LE25-S9 is backordered and will ship as soon as it is back in stock.
| Type code | NEBV |
|---|---|
| Cable fitting | M20x1.5 |
| Based on norm | DIN 47100 |
| Cable designation | Without label holder |
| Contact durability | 50 |
| Product weight | 510 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Sub-D |
| Electrical connection 1, number of pins/wires | 25 |
| Electrical connection 1, occupied pins/wires | 25 |
| Electrical connection 1, type of mounting | 2x screw, 4-40 UNC |
| Electrical connection for input 1, connection pattern | 995642 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 25 |
| Electrical connection 2, occupied pins/wires | 25 |
| DC operating voltage range | 0 V ... 30 V |
| Current rating at 40°C | 2.6 A |
| Surge resistance | 2.4 kV |
| Cable length | 2.5 m |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | ≥ 42 mm |
| Bending radius, flexible cable installation | ≥ 126 mm |
| Cable diameter | 10.2 mm |
| Cable diameter tolerance | ± 0.25 mm |
| Cable design | 25 x 0.34 mm² |
| Nominal conductor cross section | 0.34 mm² |
| Wire ends | Cut off bluntly |
| Degree of protection | IP65IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -35 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| Storage temperature | -35 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Gray |
| Housing material | PA66-GF30 |
| Housing colour | Black |
| Material of screws | Steel |
| Seals material | NBR |
| Material of pin contacts | BronzeGold-plated |
| Insulating sheath material | PVC |
