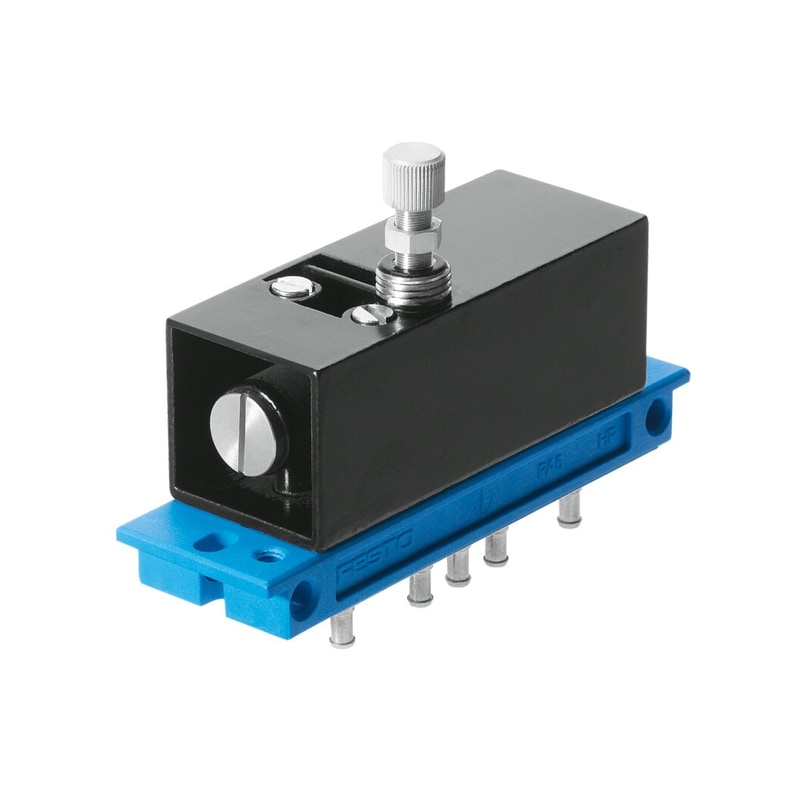

Pneumatic timer
VZO-3-PK-3
5754
GTIN 4052568000950
Vendor Festo
Regular price
$449.68
Unit price
VZO-3-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZO-3-PK-3
Regular price
$449.68
Unit price
VZO-3-PK-3 is backordered and will ship as soon as it is back in stock.
| Lap | Underlap |
|---|---|
| Nominal width | 2 mm |
| Type code | VZO |
| Actuation type | Pneumatic |
| Design | Poppet valve with return spring |

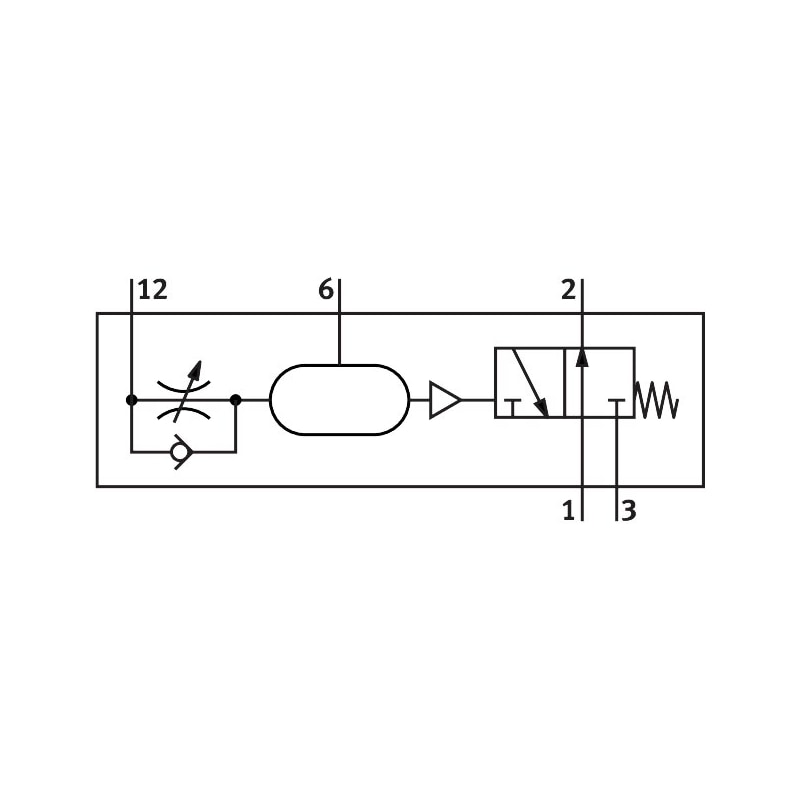

| Symbol | 991131 |
| Note on forced dynamization | Switching frequency at least once a week |
| Operating pressure | 2.5 bar ... 8 bar |
| Standard nominal flow rate | 60 l/min |
| Adjustable delay time | 0.25 s ... 5 s |
| Pause period for reset | ≥ 50 ms |
| Repetition accuracy of time setting | ± 0.5 s |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 150 g |
| Type of mounting | On mounting frameOptionally:Front panel mounting |
| Pneumatic connection | PK-3 |
| Housing material | Die-cast zinc |
