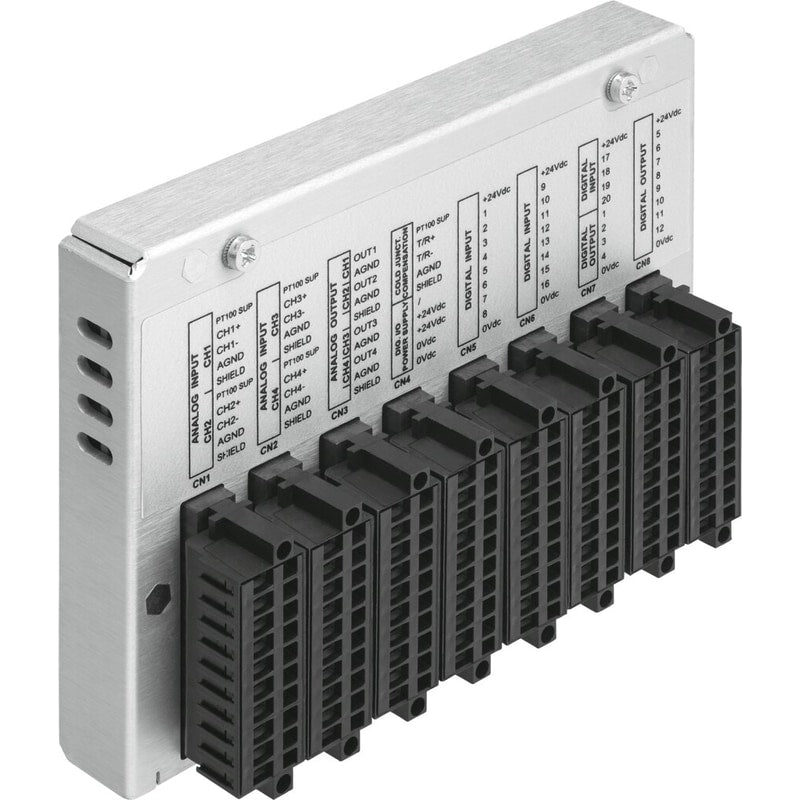

Input/output module
CDPX-EA-V1
575300
GTIN 4052568223960
Vendor Festo
Regular price
$1,294.97
Unit price
CDPX-EA-V1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDPX-EA-V1
Regular price
$1,294.97
Unit price
CDPX-EA-V1 is backordered and will ship as soon as it is back in stock.
| Installation depth | 34 mm |
|---|---|
| Height | 89 mm |
| Length | 125 mm |
| Type code | CDPX |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing5 - 85 % |
| Degree of protection | IP20 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | C-Tickc UL us - Listed (OL) |
| Product weight | 230 g |
| Note on materials | RoHS-compliant |
| Digital inputs, number | 20 |
| Digital inputs, fast clock pulse inputs | 2 |
| Digital inputs, incremental encoder connection | 2 |
| Digital inputs, input signal delay | 0.1 ms10 ms3 ms20 ms |
| Digital inputs, input voltage/current | 24 V DC |
| Digital inputs, nominal value for TRUE | 12 - 30 V DC |
| Digital inputs, nominal value for FALSE | 0 V |
| Digital inputs, electrical isolation | yes |
| Number of analog inputs | 4 |
| Analog inputs, resolution | 12 bit |
| Analog inputs, signal range | ± 10 V0 - 20 mA0 - 10 V8 single-ended/4 differencePT 100 |
| Analog inputs, linearity error at 25°C | 0.1% FS |
| Analog inputs, input resistance | 47 Ohm |
| Digital outputs, number | 12 |
| Digital outputs, output voltage | 12 - 30 V DC |
| Digital outputs, output current | 0.5Â A |
| Digital outputs, potential separation | yes |
| Digital outputs, short circuit proof | yes |
| Digital outputs, overload-proof | yes |
| Number of analog outputs | 4 |
| Analog outputs, resolution | 12 bit |
| Analog outputs, max. load resistance | 470 Ohm |
| Analog outputs, signal range | ± 10 V |
| Analog outputs, linearity error at 25°C | ± 0.2% |
