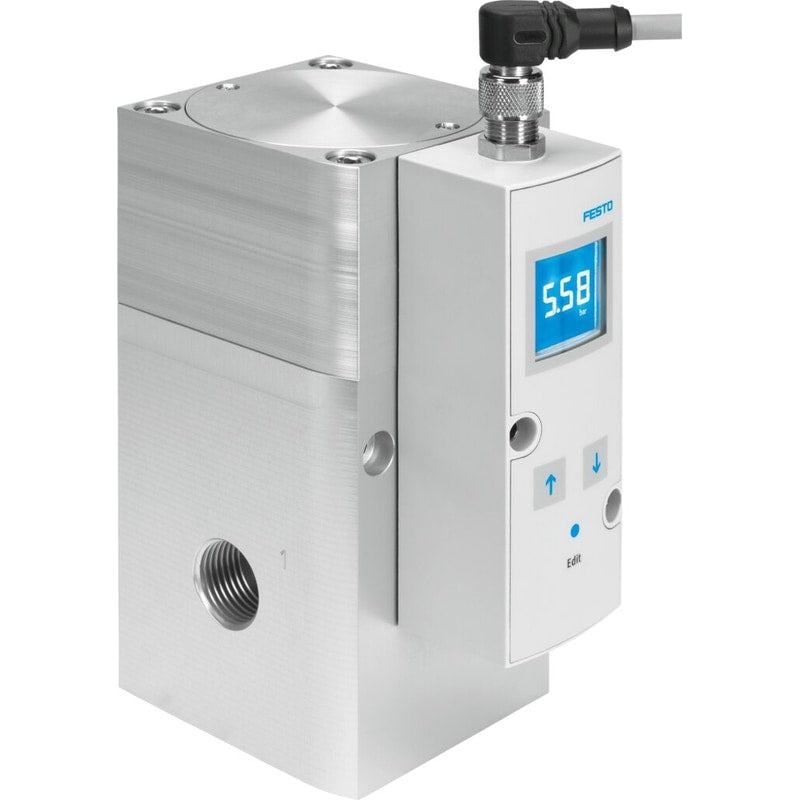

Proportional pressure control valve
VPPM-12L-L-1-G12-0L6H-V1P-S1C1
575241
GTIN 4052568223816
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- G1/2
- Pressure regulation range
- 0.06 bar - 6 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 4500 l/min
Regular price
$1,810.27
Unit price
VPPM-12L-L-1-G12-0L6H-V1P-S1C1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPM-12L-L-1-G12-0L6H-V1P-S1C1
Regular price
$1,810.27
Unit price
VPPM-12L-L-1-G12-0L6H-V1P-S1C1 is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Nominal width pressurization | 12 mm |
| Exhaust nominal width | 12 mm |
| Type code | VPPM |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Pilot-controlled diaphragm regulator |
| Short-circuit protection | For all electrical connections |
| Safety instructions | VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
| Symbol | 995303 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Valve function | 3-way proportional pressure control valve |
| Display type | Back-lit LCD |
| Pressure regulation range | 0.06 bar ... 6 bar |
| Inlet pressure 1 | 0 bar ... 8 bar |
| Max. pressure hysteresis | 0.03 bar |
| Standard nominal flow rate | 4500 l/min |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Max. current consumption | 500 mA |
| Duty cycle | 1 |
| Residual ripple | 0.1 |
| Switching output | PNP |
| Analog output signal range | 0 - 10 V |
| Analog input signal range | 0 - 10 V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 10 °C ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| Product weight | 2050 g |
| Linearity error FS | 0.01 |
| Temperature coefficient | 0.04 %/K |
| Repetition accuracy FS | 0.005 |
| Electrical connection | M128-pinPlug |
| Type of mounting | With accessoriesOptionally:With through-hole |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloyAnodized |
