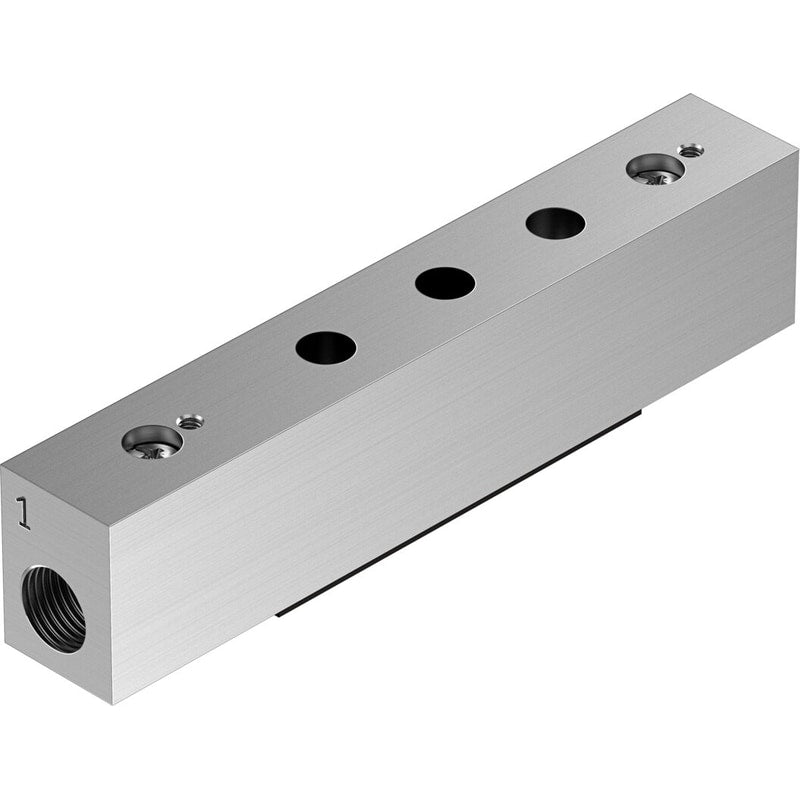

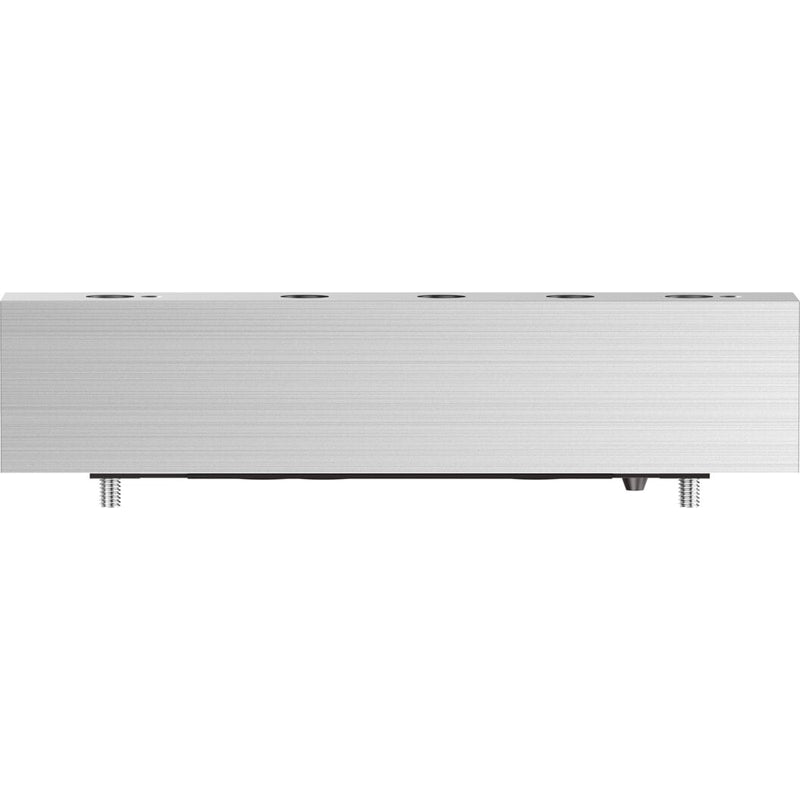

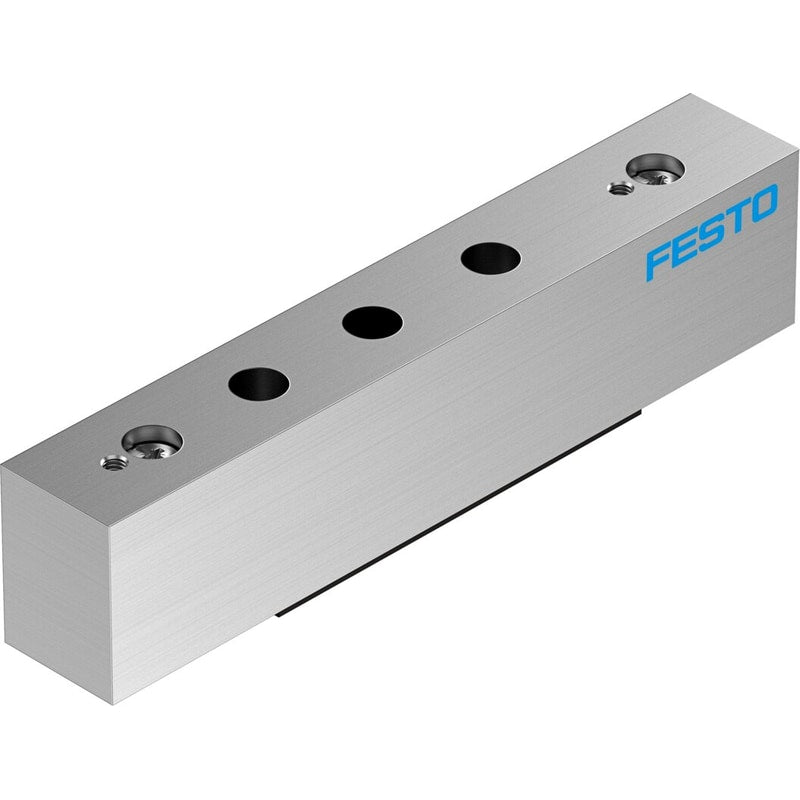

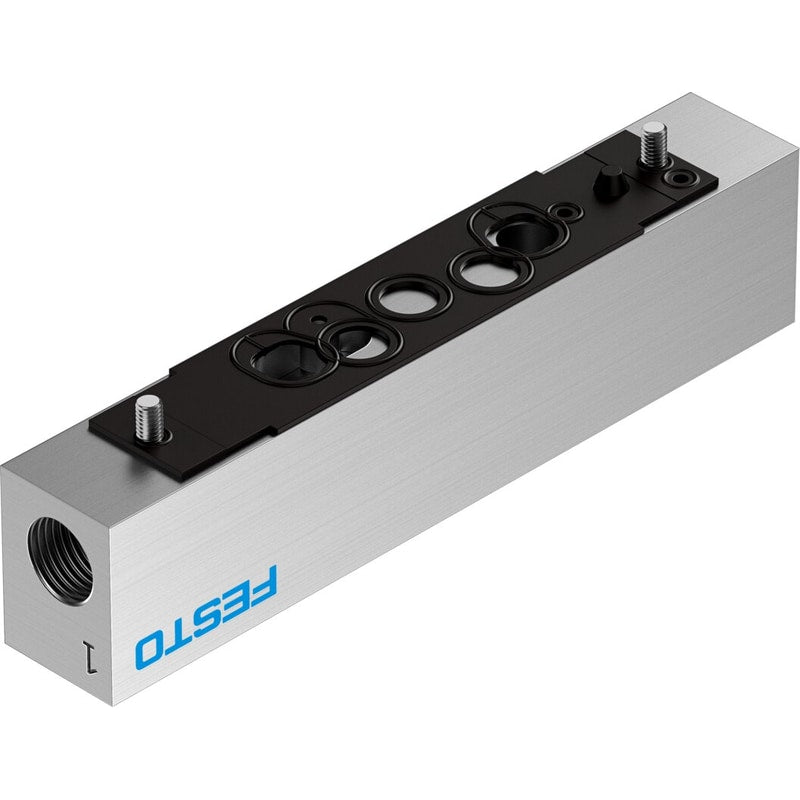

Vertical pressure supply plate
VABF-L1-P3A3-G18
574593
GTIN 4052568103491
Vendor Festo
Regular price
$36.42
Unit price
VABF-L1-P3A3-G18 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-L1-P3A3-G18
Regular price
$36.42
Unit price
VABF-L1-P3A3-G18 is backordered and will ship as soon as it is back in stock.
| Width dimension | 16 mm |
|---|---|
| Type code | VABF |
| Max. no. of valve positions | 1 |
| Symbol | 995306 |
| Operating pressure | -0.9 bar ... 10 bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Certification | RCM compliance markc CSA us (OL)c UL us - Recognized (OL) |
| Max. tightening torque for valve mounting | 0.65 Nm |
| Product weight | 350 g |
| Pneumatic connection 1 | G1/8 |
| Note on materials | RoHS-compliant |
| Plate material | Wrought aluminum alloy |
