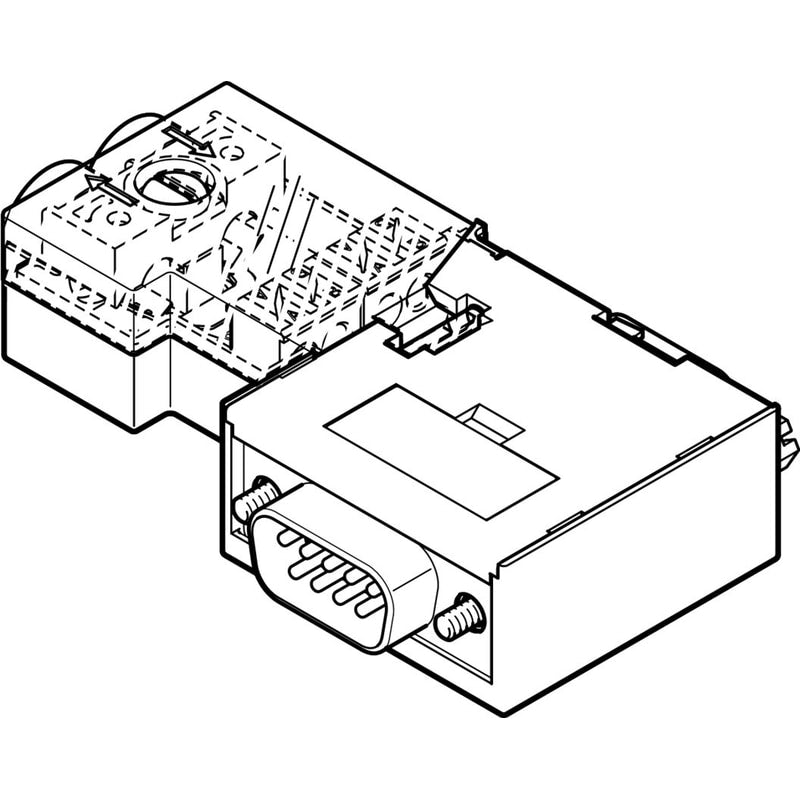

Plug
NECU-S1W9-C2-APB
574589
GTIN 4052568103460
Vendor Festo
- Connection cross section
- 0.64 mm²
- Degree of protection
- IP20
Regular price
$110.41
Unit price
NECU-S1W9-C2-APB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECU-S1W9-C2-APB
Regular price
$110.41
Unit price
NECU-S1W9-C2-APB is backordered and will ship as soon as it is back in stock.
| Type code | NECU |
|---|---|
| Type of mounting | 4-40 UNC-2B |
| Fieldbus interface | Sub-D, 9-pin, socket |
| Electrical connection 1 | Sub-D plug, 9-pin |
| Electrical connection 2 | IDC terminal |
| Approved cable diameter | 8 mm |
| Approved cable diameter | 8 mm |
| Connection cross section | 0.08 mm² ... 0.5 mm² |
| Degree of protection | IP20 |
| Ambient temperature | -20 °C ... 70 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PC-reinforced |
| Relative air humidity | 75 % at 25 °C |
| Baud rate | 12 Mbit/s |
