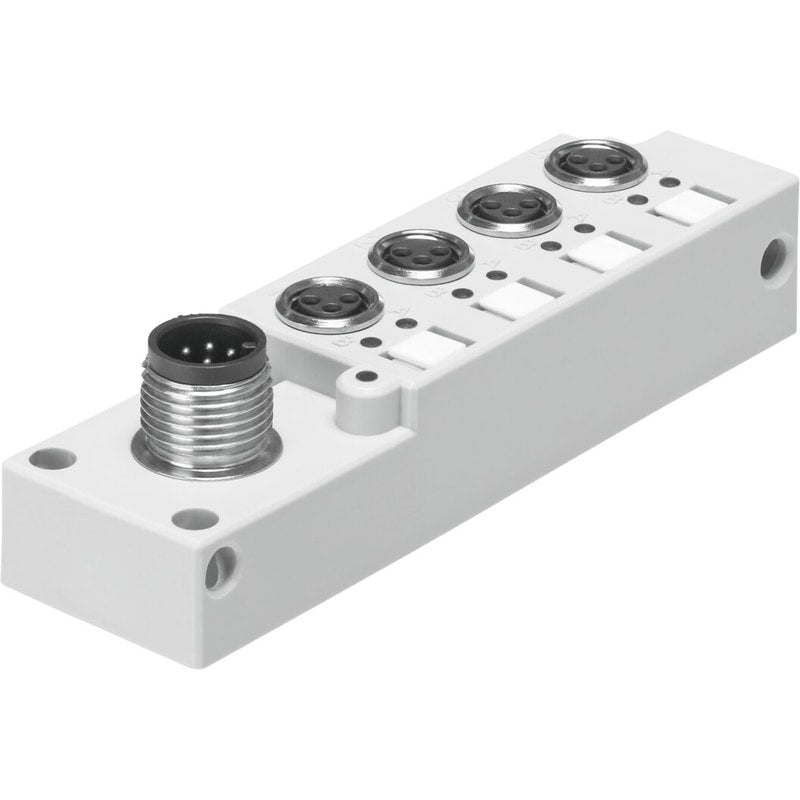

Multi-pin plug distributor
NEDU-L4R1-M8G3L-M12G8
574586
GTIN 4052568103446
Vendor Festo
Regular price
$109.24
Unit price
NEDU-L4R1-M8G3L-M12G8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEDU-L4R1-M8G3L-M12G8
Regular price
$109.24
Unit price
NEDU-L4R1-M8G3L-M12G8 is backordered and will ship as soon as it is back in stock.
| Width | 24 mm |
|---|---|
| Height | 23 mm |
| Length | 87 mm |
| Type code | NEDU |
| Ready status indication | LED green |
| Status indicator | LED yellow |
| Product weight | 58 g |
| Electrical connection 1 | Straight socket, M8, 3-pin |
| Electrical connection 2 | Straight plug, M12x1, 8-pin |
| DC operating voltage range | 10 V ... 30 V |
| Current rating at 40°C | 0.125 |
| Acceptable current load per slot | 0.0833333333333333 |
| Degree of protection | IP68 |
| Ambient temperature | -20 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Housing material | PBT-reinforced |
| Housing colour | Gray |
| Seals material | FPM |
| Material of pin contacts | Nickel-plated and gold-plated |
| Socket material | Brass, nickel-plated |
| Mounting position | Any |
