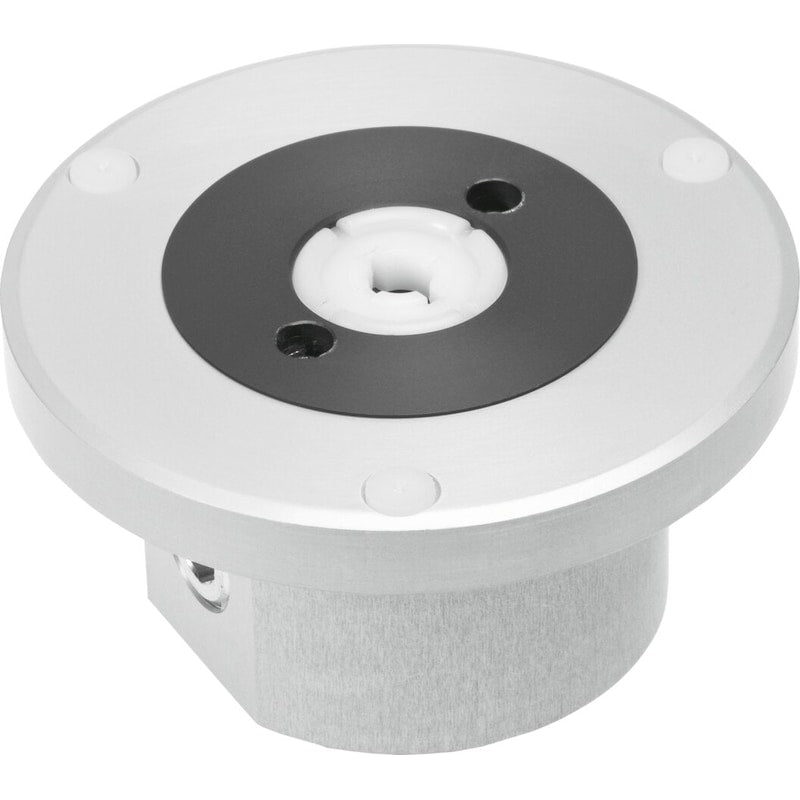

Bernoulli gripper
OGGB-60-G18-2
574563
Vendor Festo
- Pneumatic gripper diameter
- 60 mm
- Holding force at nominal operating pressure
- 10 N
Regular price
$382.92
Unit price
OGGB-60-G18-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
OGGB-60-G18-2
Regular price
$382.92
Unit price
OGGB-60-G18-2 is backordered and will ship as soon as it is back in stock.
| Type code | OGGB |
|---|---|
| Mounting position | Any |
| Connection position | Top/side |
| Symbol | 995229 |
| Pneumatic gripper diameter | 60 mm |
| Operating pressure | 0 bar ... 6 bar |
| Nominal operating pressure | 1 bar |
| Air consumption at nominal operating pressure | 110 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | 0 °C ... 60 °C |
| Ambient temperature | 0 °C ... 60 °C |
| Noise level at nominal operating pressure | 65 dB(A) |
| Sound power level at nominal operating pressure | 78 dB(A) |
| Holding force at nominal operating pressure | 10 N |
| Lateral force at nominal operating pressure | 1 N |
| Type of mounting | With internal thread |
| Pneumatic connection | G1/8 |
| Alternative connections | G1/8 |
| Note on materials | RoHS-compliant |
| Housing material | AnodizedWrought aluminum alloy |
| Spacer element material | POM |
