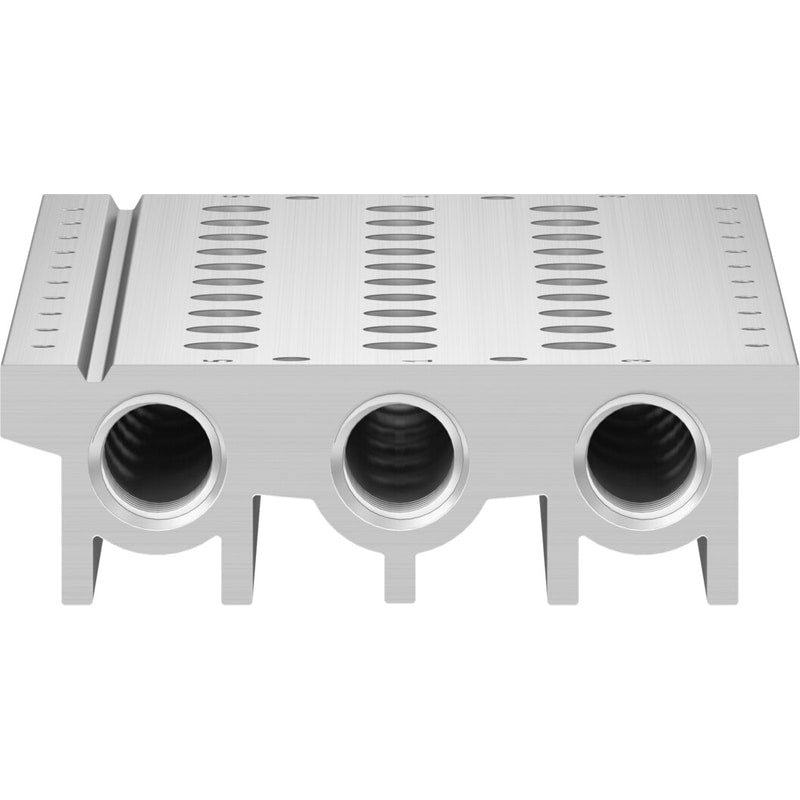

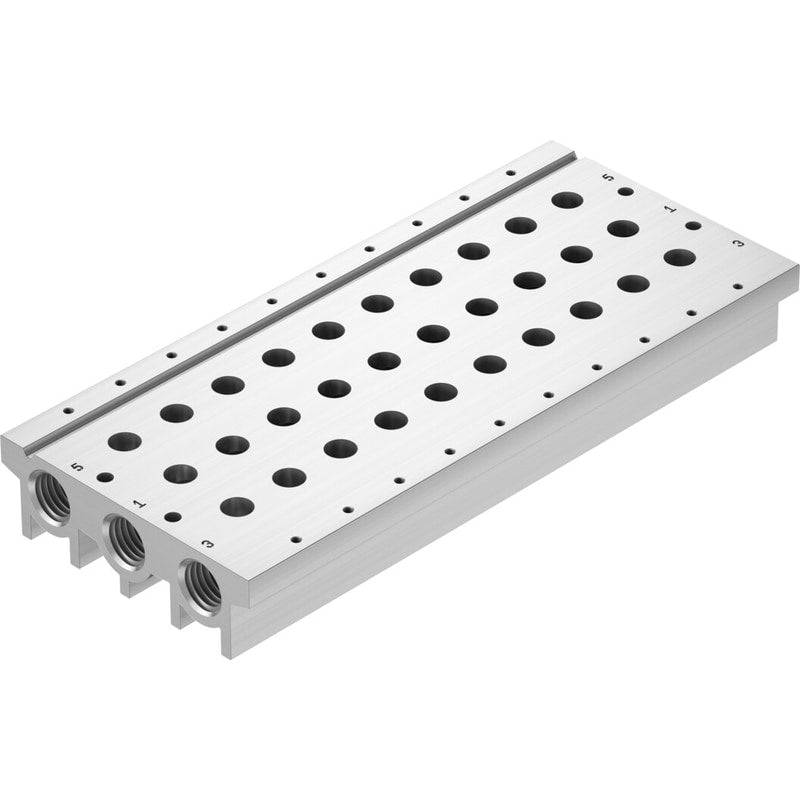

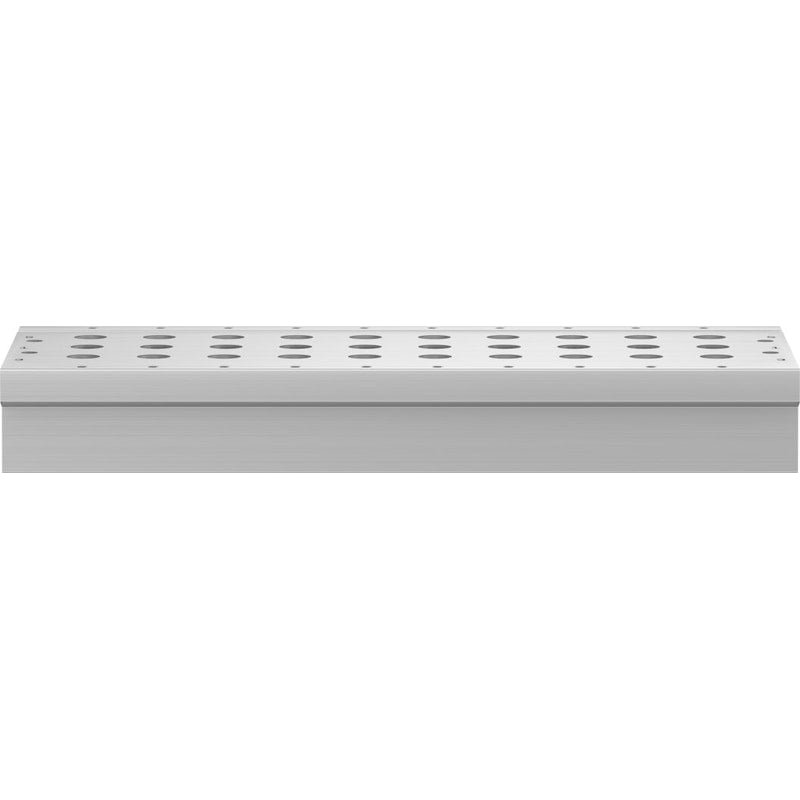

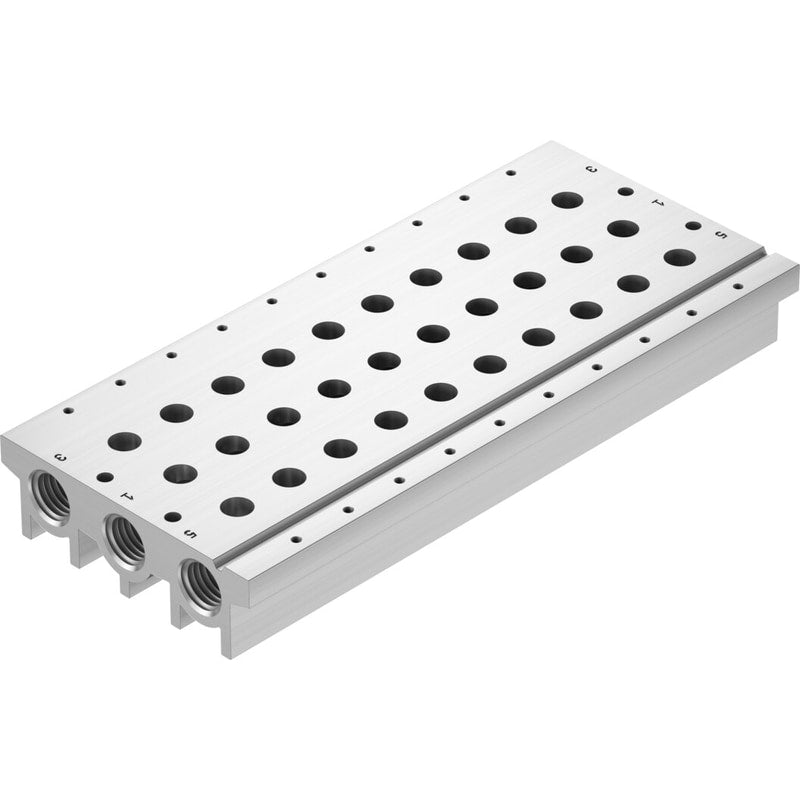

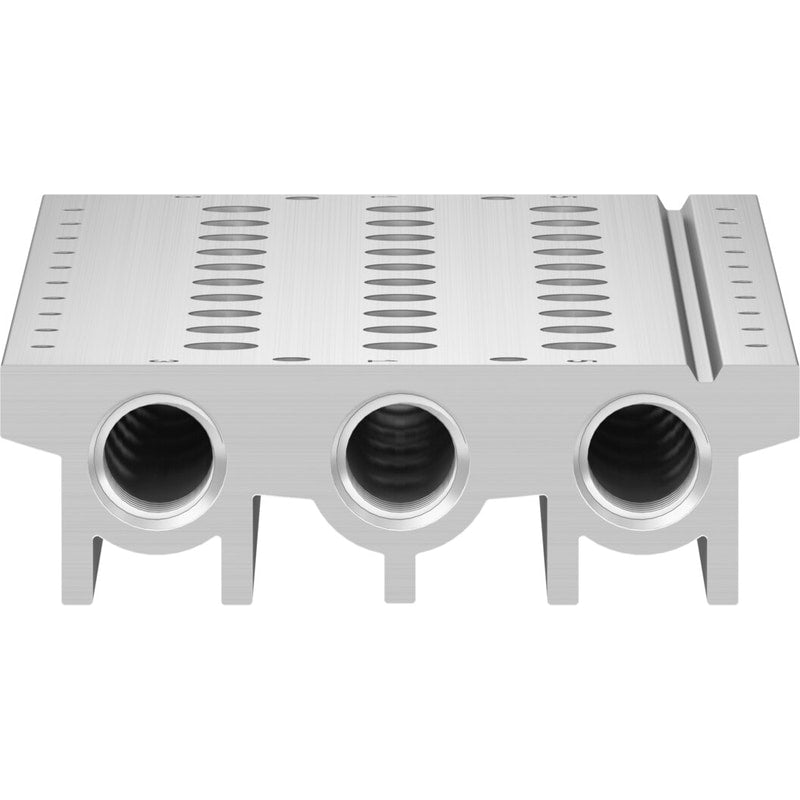

Manifold rail
VABM-L1-18S-G38-9
574462
GTIN 4052568223427
Vendor Festo
Regular price
$148.57
Unit price
VABM-L1-18S-G38-9 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABM-L1-18S-G38-9
Regular price
$148.57
Unit price
VABM-L1-18S-G38-9 is backordered and will ship as soon as it is back in stock.
| Width dimension | 19 mm |
|---|---|
| Type code | VABM |
| Max. no. of valve positions | 16 |
| Operating pressure | -0.9 bar ... 10 bar |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Certification | c CSA us (OL)c UL us - Recognized (OL)RCM compliance mark |
| Max. tightening torque for H-rail mounting: | 1.5 Nm |
| Max. tightening torque for valve mounting | 1.18 Nm |
| Max. tightening torque for wall mounting | 3 Nm |
| Product weight | 723 g |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy |
