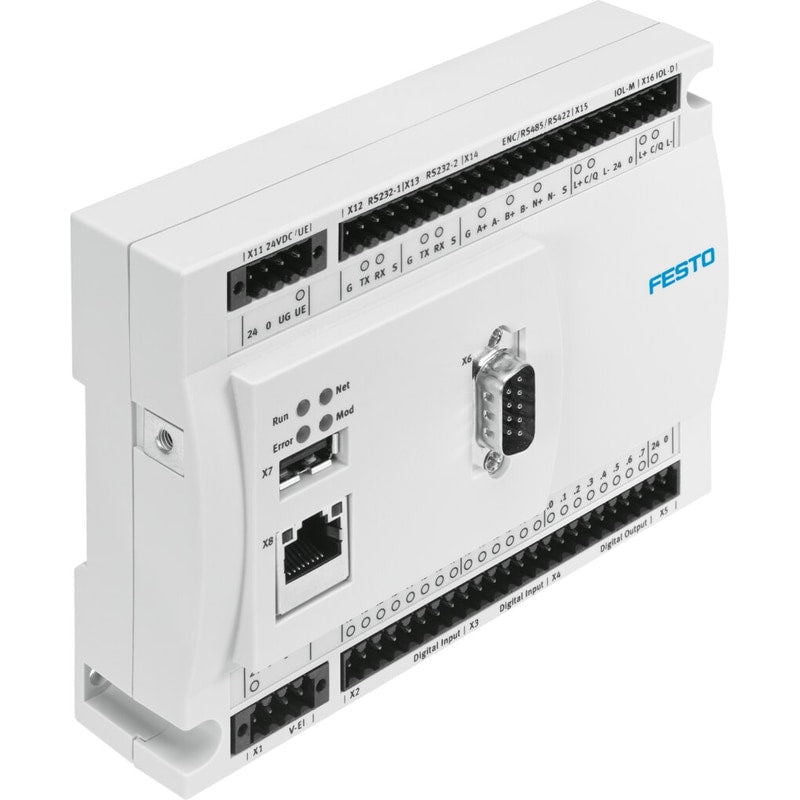

Controller
CECC-S
574416
GTIN 4052568223076
Vendor Festo
Regular price
$1,287.49
Unit price
CECC-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CECC-S
Regular price
$1,287.49
Unit price
CECC-S is backordered and will ship as soon as it is back in stock.
| Type code | CECC |
|---|---|
| Certificate issuing authority | UL E239998-D1001 |
| Max. power supply | 0.25 |
| Nominal operating voltage DC | 24 V |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| Note on materials | RoHS-compliant |
| Operating voltage | 20.4 - 30 V DC |
| Current consumption | 100 mA nominal at 24 V DC |
| Ambient temperature | 0 °C ... 55 °C |
| Storage temperature | -25 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Degree of protection | IP20 |
| Protection class | III |
| Product weight | 200 g |
| Resistance to vibration | as per EN 61131-2 |
| Resistance to shock | as per EN 61131-2 |
| Electrical connection technology I/O | Socket strip, 3.5 mm grid |
| Status indications | LED |
| CPU data | 400 MHz processor |
| Digital inputs, number | 12 |
| Digital inputs, switching logic | Positive logic (PNP) |
| Digital inputs, fast clock pulse inputs | 2, each with max. 180 kHz |
| Digital inputs, input voltage/current | 24 V DC |
| Digital inputs, nominal value for TRUE | >= 15 V DC |
| Digital inputs, nominal value for FALSE | <= 5 V DC |
| Digital inputs, electrical isolation | Yes, optocoupler |
| Digital inputs, status indication | LED |
| Digital outputs, number | 8 |
| Digital outputs, switching logic | Positive logic (PNP) |
| Digital outputs, contact | Transistor |
| Digital outputs, output voltage | 24 V DC |
| Digital outputs, output current | 500 mA |
| Digital outputs, potential separation | Yes, optocoupler |
| Digital outputs, switching frequency | max. 1 kHz |
| Digital outputs, short circuit proof | yes |
| Digital outputs, status indication | LED |
| Serial interface, number | 3 |
| Serial interface, type | 2 x RS 232 / 1 x RS 485-A/422-A |
| Serial interface, connection technology | Plug |
| Serial interface, transmission rate | 300 ... 375000 bit/s |
| Protocol | I-PortIO-Link®Modbus® TCPCANopen |
| IO-Link®, protocol version | Master V 1.1Device V 1.0 |
| IO-Link®, communication mode | Master SIO, COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd)Configurable via softwareDevice COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd) |
| IO-Link®, port class | Master BDevice A |
| IO-Link®, number of ports | Master 1Device 1 |
| IO-Link®, process data width OUT | Master parameterizable 2 - 32 bytes |
| IO-Link®, process data width IN | Master parameterizable 2 - 32 bytes |
| IO-Link®, minimum cycle time | Device 3.2 msMaster 5 ms |
| IO-Link®, data memory available | 2 kByte/port |
| IO-Link®, output current | 3.5 A/port |
| IO-Link®, Connection technology | PlugDevice, 3-pinMaster 5-pinCage Clamp® |
| IO-Link®, communication | C/Q LED redC/Q LED green |
| IO-Link®, ready status indication | L+ green LED offL+ green LED on |
| Fieldbus interface, type | CAN bus |
| Fieldbus interface, connection technology | 9-pinSub-DPlug |
| Fieldbus interface, transmission rate | Adjustable via software125, 250, 500, 800, 1000 kbit/s |
| Fieldbus interface, galvanic isolation | yes |
| USB interface | USB 1.1 |
| Ethernet, connector plug | RJ45 |
| Ethernet, number | 1 |
| Ethernet, data transmission speed | 10/100 Mbit/s |
| Ethernet, supported protocols | TCP/IP, EasyIP, Modbus® TCP |
| Encoder inputs, number | 1 |
| Encoder inputs, resolution | 32 bit |
| Encoder inputs, signal range | 5 V differential (RS422) |
| Encoder inputs, max. input frequency | 1000 kHz |
| Encoder inputs, generator supply voltage | 5 V DC (100 mA) |
| Programming software | CODESYS provided by Festo V3 |
| Programming language | ASSTas per IEC 61131-3KOPAWLFUP |
| CE marking (see declaration of conformity) | As per EU EMC directive |
