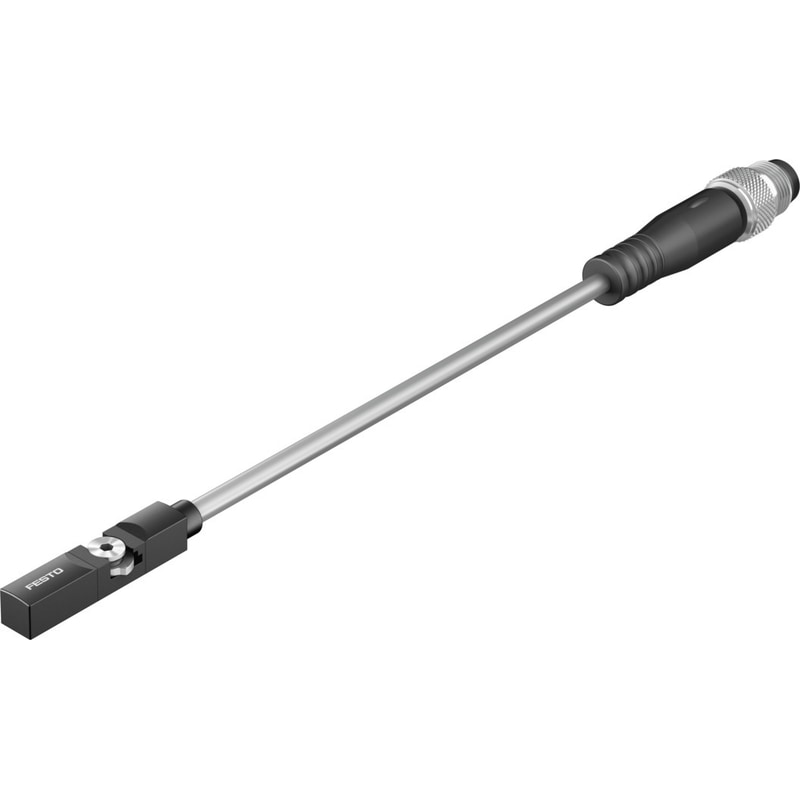

Proximity sensor
CRSMT-8M-PS-24V-K-0,3-M8D
574383
GTIN 4052568103347
Vendor Festo
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- DC operating voltage range
- 5 V - 30 V
- Switching element function
- N/O contact
- Switching output
- PNP
Regular price
$84.82
Unit price
CRSMT-8M-PS-24V-K-0,3-M8D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRSMT-8M-PS-24V-K-0,3-M8D
Regular price
$84.82
Unit price
CRSMT-8M-PS-24V-K-0,3-M8D is backordered and will ship as soon as it is back in stock.
| Type code | CRSMT |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 991155 |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, connection type | Cable with plug |
| KC characters | KC EMC |
| Repetition accuracy | 0.2 mm |
| Electrical connection 1, number of pins/wires | 3 |
| Design | for T-slot |
| Based on norm | EN 60947-5-2 |
| Symbol | 991153 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX)As per EU EMC directive |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 22 (ATEX) |
| ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex nA IIC T4 X Gc |
| ATEX category for dust | II 3D |
| Type of (ignition) protection for dust | Ex tc IIIC T120°C X Dc |
| Explosive ambient temperature | -40°C <= Ta <= +85°C |
| Special features | Acid-proofResistant to cooling lubricantsAlkali-proof |
| Note on materials | RoHS-compliantHalogen-free |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Switching output | PNP |
| Switching element function | N/O contact |
| On time | ≤ 1 ms |
| Switch-off time | ≤ 1 ms |
| Max. switching frequency | 180 Hz |
| Max. output current | 100 mA |
| Max. switching capacity DC | 2.8 W |
| Voltage drop | < 1.5 V |
| Minimum load current | 0 mA |
| Residual current | < 0.05 mA |
| Short-circuit protection | yes |
| Overload protection | Available |
| Rated operating voltage DC | 24 V |
| DC operating voltage range | 5 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Material of pin contacts | Nickel-plated and gold-platedBrass |
| Connector cable test conditions | Cable chain: 5 million cycles, bending radius 75 mmTorsional resistance: > 300 000 cycles, ±270°/0.1 mFlexural strength: as per Festo standard |
| Cable length | 0.3 m |
| Cable characteristic | Standard + cable chain |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-O |
| Insulating sheath material | PP |
| Material of plug housing | PP |
| Type of mounting | Screwed tightlyCan be inserted in slot from above |
| Max. tightening torque | 0.6 Nm |
| Mounting position | Any |
| Product weight | 16.1 g |
| Housing colour | Black |
| Housing material | PPHigh-alloy stainless steelPA |
| Material of union nut | Brass, nickel-plated |
| Switching status indication | LED yellow |
| Function reserve indication | LED orange |
| Ambient temperature with flexible cable installation | -20 °C ... 85 °C |
| Degree of protection | IP65IP69KIP68 |
| For use in the food industry | See supplementary material information |
