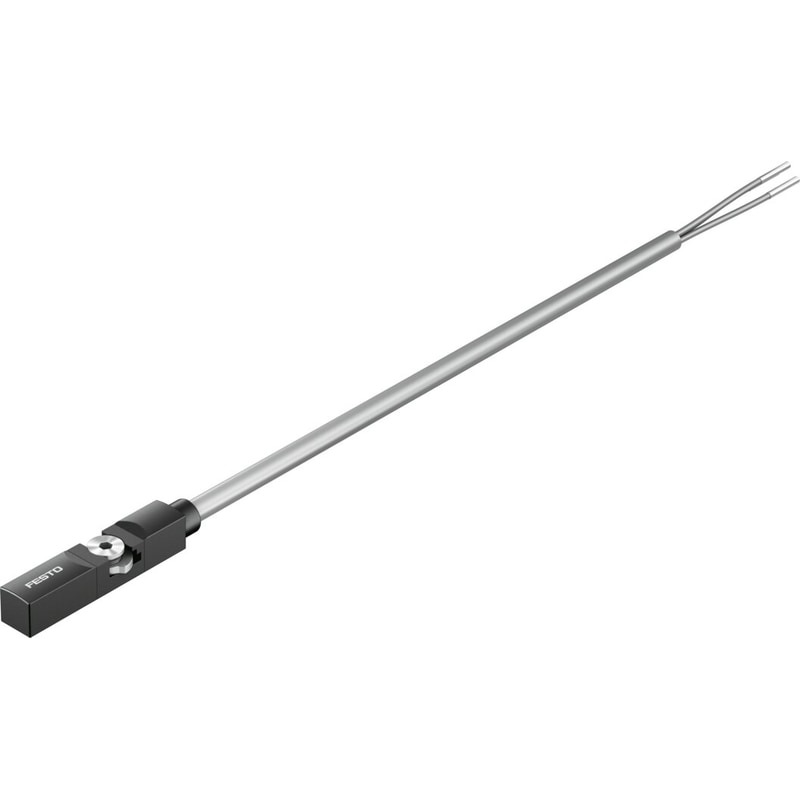

Proximity sensor
CRSMT-8M-PS-24V-K-10,0-OE
574381
GTIN 4052568103323
Vendor Festo
- Electrical connection 1, connection technology
- Open end
- DC operating voltage range
- 5 V - 30 V
- Switching element function
- N/O contact
- Switching output
- PNP
Regular price
$100.57
Unit price
CRSMT-8M-PS-24V-K-10,0-OE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRSMT-8M-PS-24V-K-10,0-OE
Regular price
$100.57
Unit price
CRSMT-8M-PS-24V-K-10,0-OE is backordered and will ship as soon as it is back in stock.
| Type code | CRSMT |
|---|---|
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, connection type | Cable |
| KC characters | KC EMC |
| Repetition accuracy | 0.2 mm |
| Electrical connection 1, number of pins/wires | 3 |
| Design | for T-slot |
| Based on norm | EN 60947-5-2 |
| Symbol | 991152 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU explosion protection directive (ATEX) |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 2 (ATEX) |
| ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex nA IIC T4 X Gc |
| ATEX category for dust | II 3D |
| Type of (ignition) protection for dust | Ex tc IIIC T120°C X Dc |
| Explosive ambient temperature | -40°C <= Ta <= +85°C |
| Special features | Alkali-proofAcid-proofResistant to cooling lubricants |
| Note on materials | RoHS-compliantHalogen-free |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -40 °C ... 85 °C |
| Switching output | PNP |
| On time | ≤ 1 ms |
| Switch-off time | ≤ 1 ms |
| Max. switching frequency | 180 Hz |
| Max. output current | 100 mA |
| Max. switching capacity DC | 2.8 W |
| Voltage drop | < 1.5 V |
| Minimum load current | 0 mA |
| Residual current | < 0.05 mA |
| Short-circuit protection | yes |
| Overload protection | Available |
| Rated operating voltage DC | 24 V |
| DC operating voltage range | 5 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Cable chain: 5 million cycles, bending radius 75 mmTorsional resistance: > 300 000 cycles, ±270°/0.1 mFlexural strength: as per Festo standard |
| Cable length | 10 m |
| Cable characteristic | Standard + cable chain |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-O |
| Insulating sheath material | PP |
| Wire ends | Cable end sleeve |
| Type of mounting | Screwed tightlyCan be inserted in slot from above |
| Max. tightening torque | 0.6 Nm |
| Mounting position | Any |
| Product weight | 93.4 g |
| Housing colour | Black |
| Housing material | PPPAHigh-alloy stainless steel |
| Switching status indication | LED yellow |
| Function reserve indication | LED orange |
| Ambient temperature with flexible cable installation | -20 °C ... 85 °C |
| Degree of protection | IP65IP69KIP68 |
| For use in the food industry | See supplementary material information |
