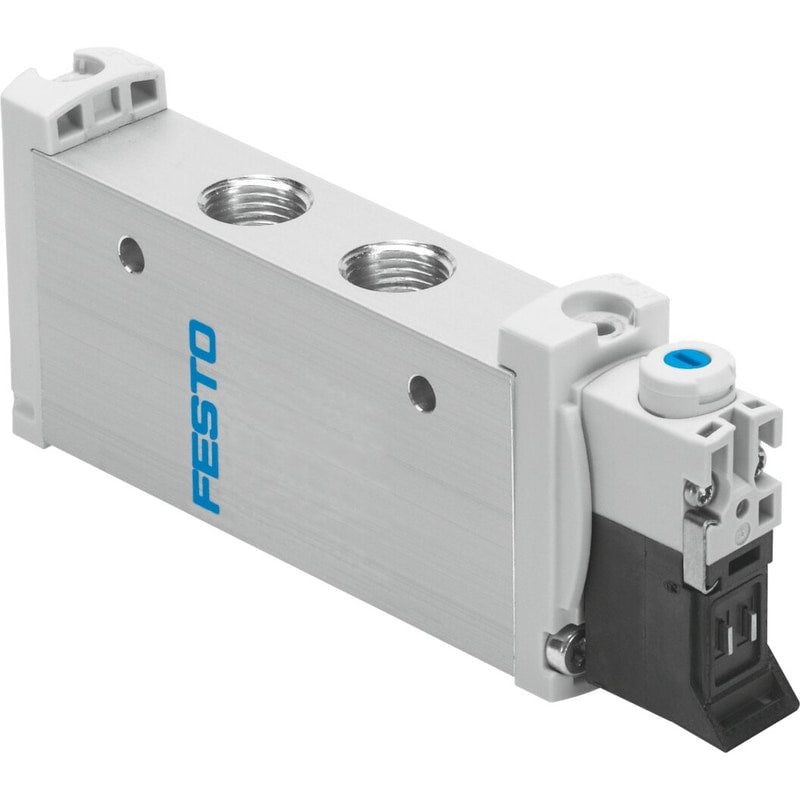

Air solenoid valve
VUVG-L14-M52-MT-G18-1P3
574371
GTIN 4052568103286
Vendor Festo
- Valve function
- 5/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 700 l/min - 780 l/min
- Pneumatic working port
- G1/8
- Actuation type
- Electrical
Regular price
$75.74
Unit price
VUVG-L14-M52-MT-G18-1P3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVG-L14-M52-MT-G18-1P3
Regular price
$75.74
Unit price
VUVG-L14-M52-MT-G18-1P3 is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, monostable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Valve size | 14 mm |
| Standard nominal flow rate | 700 l/min ... 780 l/min |
| Pneumatic working port | G1/8 |
| Operating voltage | 24V DC |
| Operating pressure | 3 bar ... 8 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | With plug socketIP65IP40 |
| Certification | c CSA us (OL)RCM compliance markc UL us - Recognized (OL) |
| Nominal width | 5.6 mm |
| Type code | VUVG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | DetentingNon-detentingCovered |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Symbol | 991003 |
| Pilot pressure | 3 bar ... 8 bar |
| Suitability for vacuum | no |
| On switching time | 13 ms |
| Duty cycle | 1 |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse on 1 signal | 900 µs |
| Coil characteristics | 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W24 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Restricted ambient and media temperature | -5 - 50 °CWithout holding power reduction |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -5 °C ... 60 °C |
| Ambient temperature | -5 °C ... 60 °C |
| Product weight | 70 g |
| Electrical connection | Via electrical sub-base |
| Type of mounting | With through-holeOn terminal stripOptionally: |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Seals material | NBRHNBR |
| Housing material | Wrought aluminum alloy |
