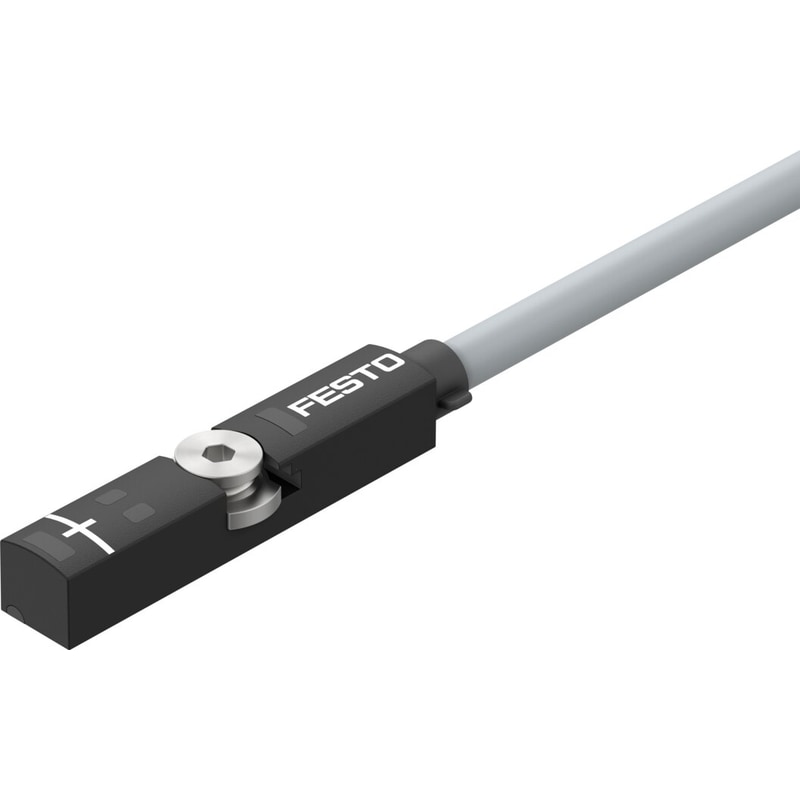

Proximity sensor
SMT-8M-A-PS-24V-E-0,3-M12
574337
GTIN 4052568103125
Vendor Festo
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- DC operating voltage range
- 5 V - 30 V
- Switching element function
- N/O contact
- Switching output
- PNP
Regular price
$54.11
Unit price
SMT-8M-A-PS-24V-E-0,3-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMT-8M-A-PS-24V-E-0,3-M12
Regular price
$54.11
Unit price
SMT-8M-A-PS-24V-E-0,3-M12 is backordered and will ship as soon as it is back in stock.
| Type code | SMT |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 991168 |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, connection type | Cable with plug |
| KC characters | KC EMC |
| Repetition accuracy | 0.2 mm |
| Electrical connection 1, number of pins/wires | 3 |
| Design | for T-slot |
| Based on norm | EN 60947-5-2 |
| Symbol | 991153 |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Special features | Oil-resistant |
| Note on materials | Halogen-freeRoHS-compliantFree of copper and PTFE |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -40 °C ... 85 °C |
| Switching output | PNP |
| Switching element function | N/O contact |
| On time | ≤ 1.3 ms |
| Switch-off time | ≤ 1.4 ms |
| Max. switching frequency | 180 Hz |
| Max. output current in mounting kits | 100 mA |
| Max. switching capacity DC | 2.8 W |
| Max. switching capacity DC in mounting kits | 2.8 W |
| Voltage drop | < 1.5 V |
| Short-circuit protection | yes |
| Overload protection | Available |
| Rated operating voltage DC | 24 V |
| DC operating voltage range | 5 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Torsional resistance: > 300 000 cycles, ±270°/0.1 mFlexural strength: as per Festo standardCable chain: 5 million cycles, bending radius 28 mmTest conditions on request |
| Cable length | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Can be inserted in slot from aboveScrewed tightly |
| Max. tightening torque | 0.6 Nm |
| Mounting position | Any |
| Product weight | 15.9 g |
| Housing colour | Black |
| Housing material | High-alloy stainless steelPA-reinforcedBrass, nickel-plated |
| Switching status indication | LED yellow |
| Function reserve indication | LED orange |
| Ambient temperature with flexible cable installation | -20 °C ... 85 °C |
| Degree of protection | IP65IP68IP69K |
