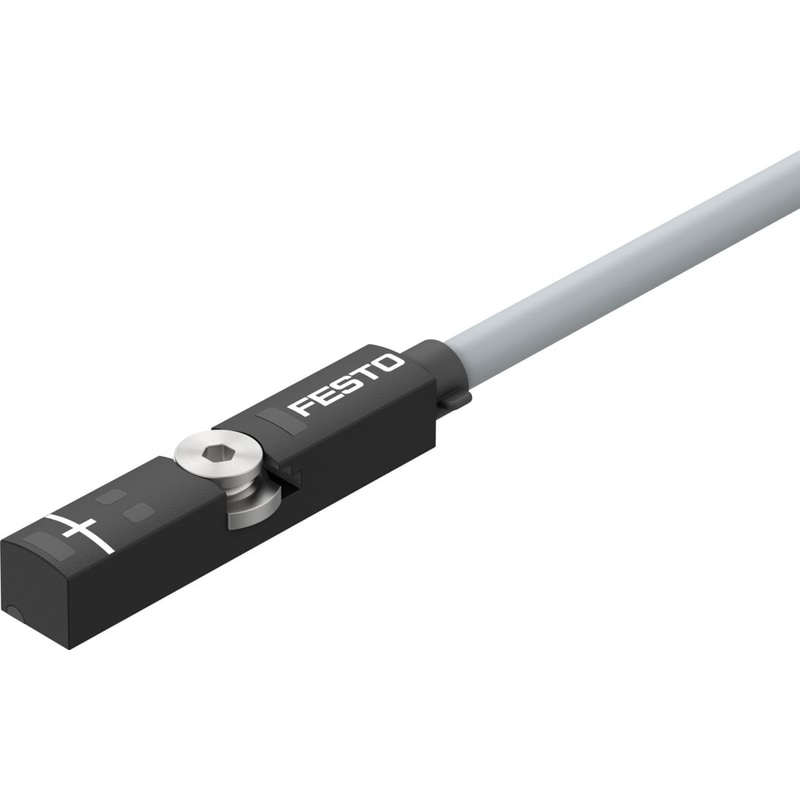

Proximity sensor
SMT-8M-A-PS-24V-E-0,3-M8D
574334
GTIN 4052568103095
Vendor Festo
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- DC operating voltage range
- 5 V - 30 V
- Switching element function
- N/O contact
- Switching output
- PNP
Regular price
$52.25
Unit price
SMT-8M-A-PS-24V-E-0,3-M8D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMT-8M-A-PS-24V-E-0,3-M8D
Regular price
$52.25
Unit price
SMT-8M-A-PS-24V-E-0,3-M8D is backordered and will ship as soon as it is back in stock.
proximity sensor SMT-8M-A-PS-24V-E-0,3-M8D Magnetic, contactless, for T-slot. Design=for T-slot, Based on the standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant
| Design | for T-slot |
|---|---|
| Based on the standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Special characteristics | Oil resistant |
| Materials note | Free of copper and PTFEConforms to RoHSHalogen-free |
| Measured variable | Position |
| Measuring principle | Magnetoresistive |
| Ambient temperature | '-40 ... 85 °C |
| Switch output | PNP |
| Switching element function | Normally open contact |
| Switching output repetition accuracy in ± mm | 0.1 mm |
| Switch-on time | <= 1.3 ms |
