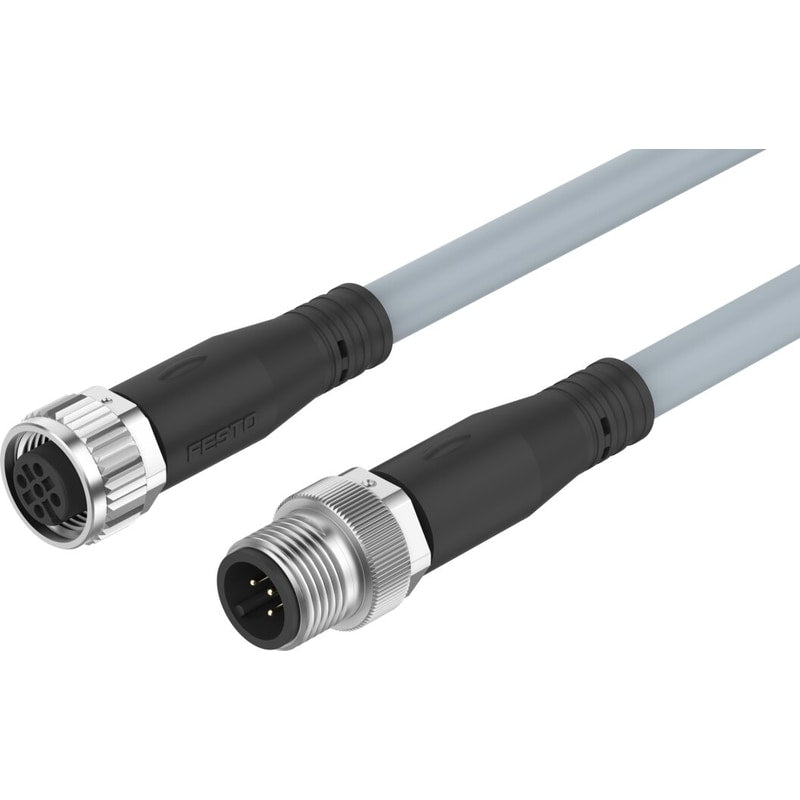

Connecting cable
NEBU-M12G5-E-10-Q8N-M12G5
574323
GTIN 4052568222772
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Cable length
- 10 m
Regular price
$161.71
Unit price
NEBU-M12G5-E-10-Q8N-M12G5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBU-M12G5-E-10-Q8N-M12G5
Regular price
$161.71
Unit price
NEBU-M12G5-E-10-Q8N-M12G5 is backordered and will ship as soon as it is back in stock.
connecting cable NEBU-M12G5-E-10-Q8N-M12G5 Suitable for use with energy chains. Conforms to standard=(* EN 61076-2-101, * EN 61984), Electrical connection=(* Straight socket / straight plug, * M12x1 / M12x1, * 5-pin / 5-pin, * - / rotatable thread), Operating voltage range DC=0 - 60 V, Operating voltage range AC=0 - 60 V, Acceptable current load at 40°C=4 A
| Conforms to standard | EN 61076-2-101 |
|---|---|
| Cable identification | Without inscription label holder |
| Product weight | 295 g |
| Electrical connection 1, function | Field device side |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded to EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw lock |
| Electrical connection 2, function | Controller side |
| Electrical connection 2, design | Round |
