VUWG-L18-P53E-G14
574273
Vendor Festo
Regular price
$117.99
Unit price
VUWG-L18-P53E-G14 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUWG-L18-P53E-G14
Regular price
$117.99
Unit price
VUWG-L18-P53E-G14 is backordered and will ship as soon as it is back in stock.

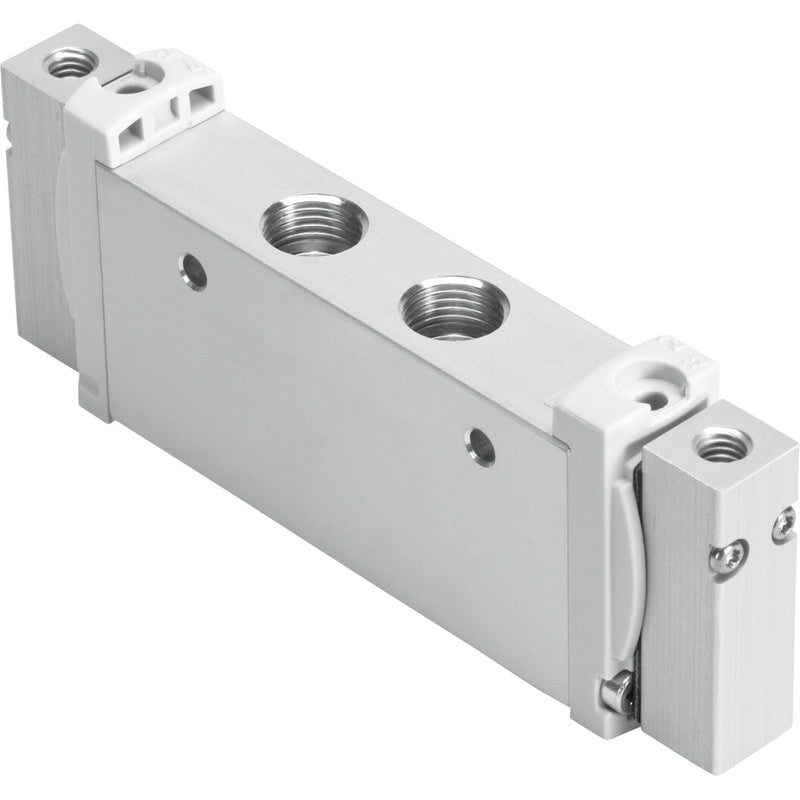

Compact pneumatic valve for high flow rates.
| Valve function | 5/3, exhausted |
|---|---|
| Lap | Indefinite overlap |
| Actuation type | Pneumatic |
| Valve size | 18 mm |
| Standard nominal flow rate | 1000 l/min |
| Pneumatic working port | G1/4 |
| Operating pressure | -0.9 bar ... 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Width dimension | 19 mm |
| Type code | VUWG |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | None |
| Type of control | Direct |
| Flow direction | Reversible |

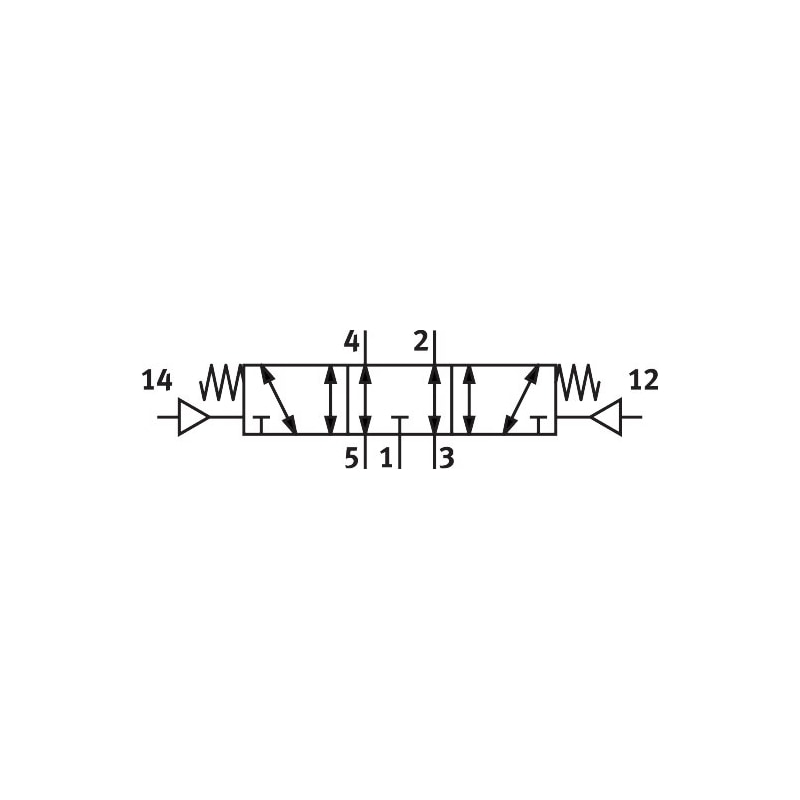

| Symbol | 00991021 |
| Pilot pressure | 3 bar ... 10 bar |
| Suitability for vacuum | yes |
| Switching time off | 69 ms |
| On switching time | 17 ms |
| Changeover time | 34 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -5 °C ... 50 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C ... 60 °C |
| Product weight | 152 g |
| Type of mounting | On PR railOptionally:With through-hole |
| Pilot air port 12 | M5 |
| Pilot air port 14 | M5 |
