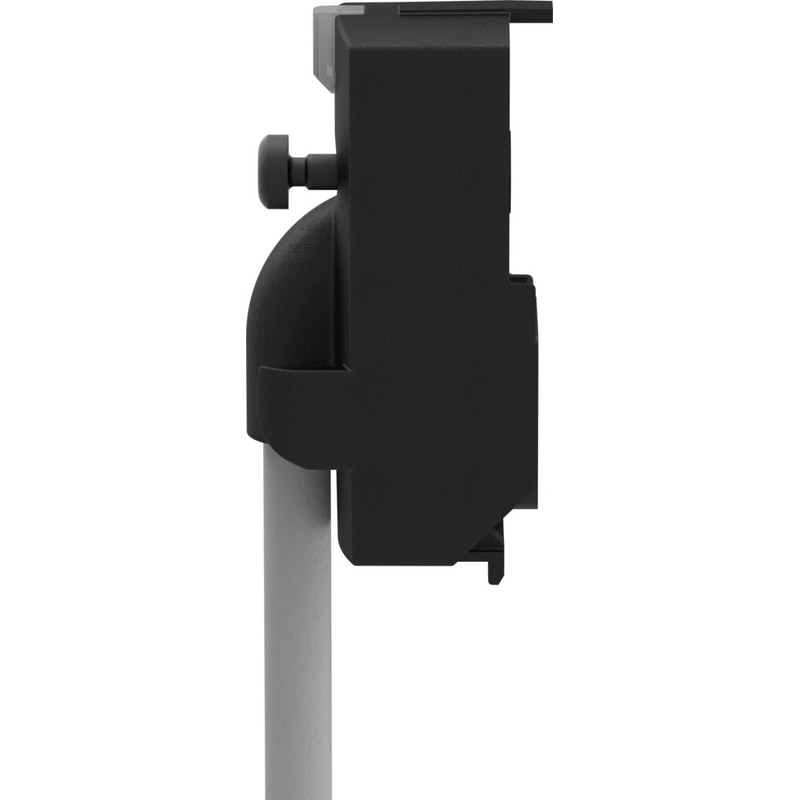

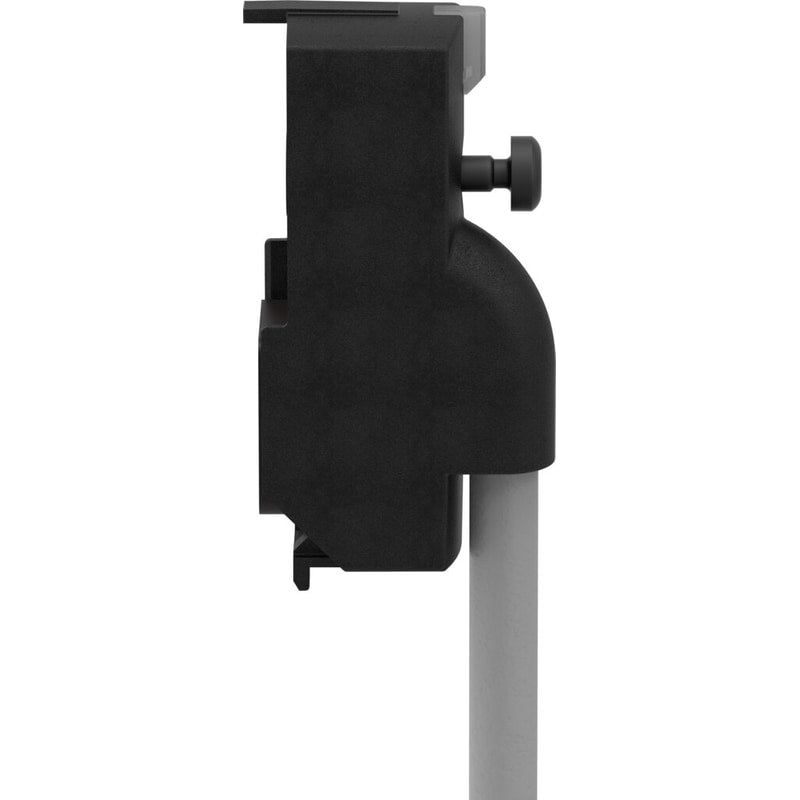

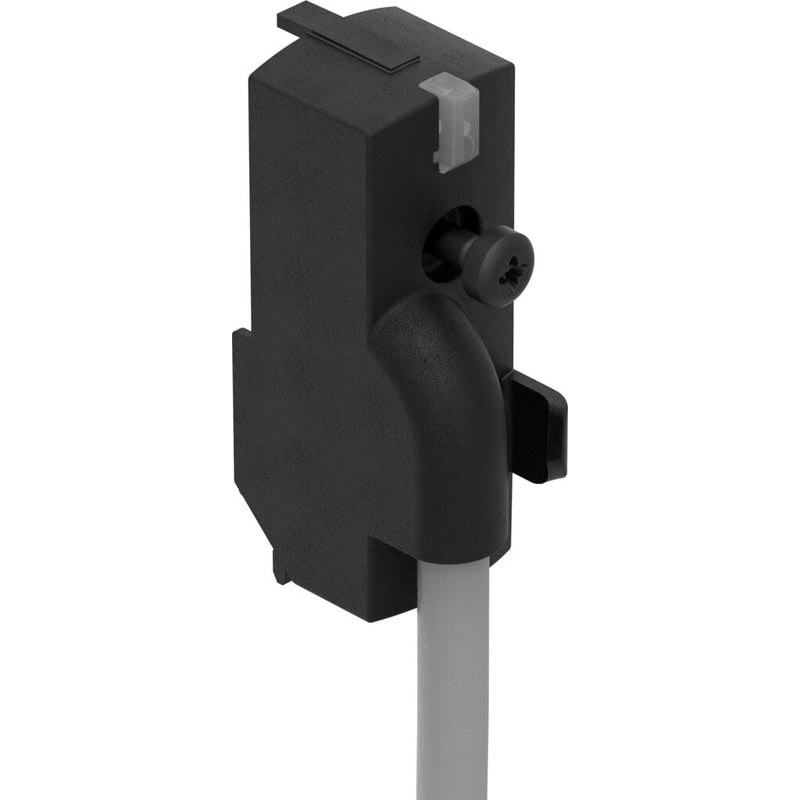

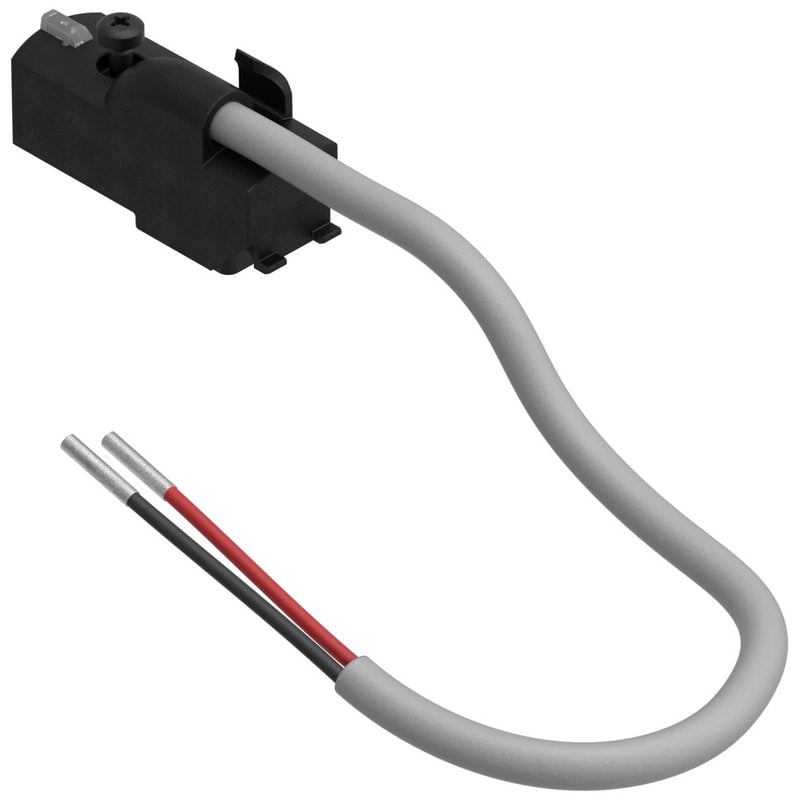

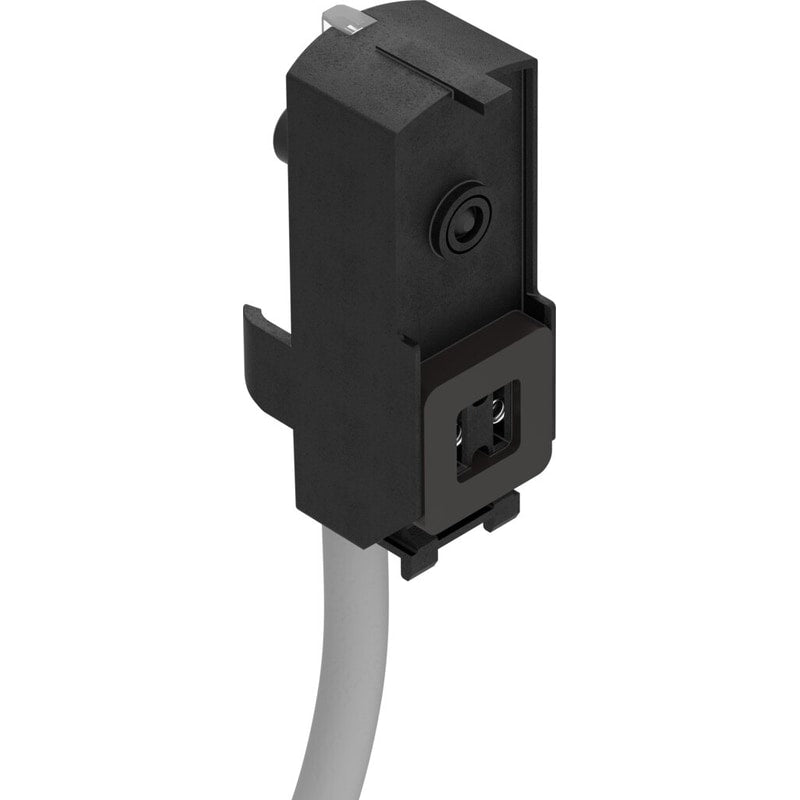

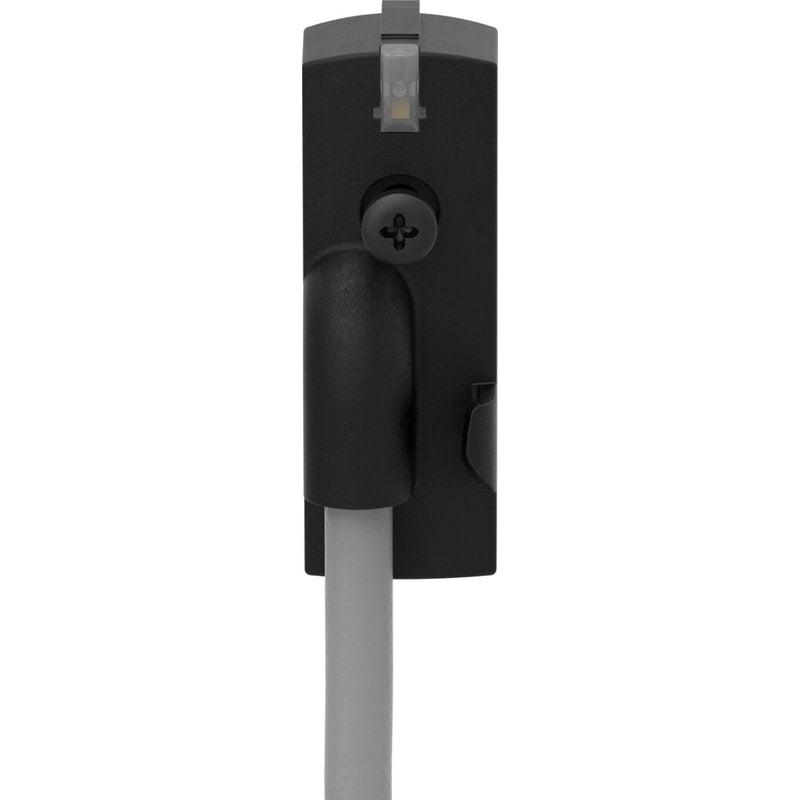

Electrical sub-base
VAVE-L1-1K7-LR
573946
GTIN 4052568059354
Vendor Festo
Regular price
$18.64
Unit price
VAVE-L1-1K7-LR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAVE-L1-1K7-LR
Regular price
$18.64
Unit price
VAVE-L1-1K7-LR is backordered and will ship as soon as it is back in stock.
| Contamination level | 3 |
|---|---|
| Surge resistance | 0.8 kV |
| Type code | VAVE |
| Mounting position | Any |
| Cable characteristic | for static applications |
| Reverse polarity protection | Bipolar |
| Additional functions | Holding current reductionSpark suppression |
| Signal status display | LED |
| Nominal operating voltage DC | 24 V |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 60 °C |
| Certification | RCM compliance mark |
| Max. tightening torque | 0.27 Nm |
| Min. cable bending radius | 34 mm |
| Product weight | 20 g |
| Electrical connection | 2-pin/2-wireRectangular design/open endAngled socket/cable |
| Cable design | 2 x 0.25 mm² |
| Cable diameter | 3.4 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Cable length | 1 m |
| Protective earth connection | Not available |
| Housing colour | Black |
| Note on materials | RoHS-compliant |
| Housing material | PA |
| Material of cable sheath | TPV |
