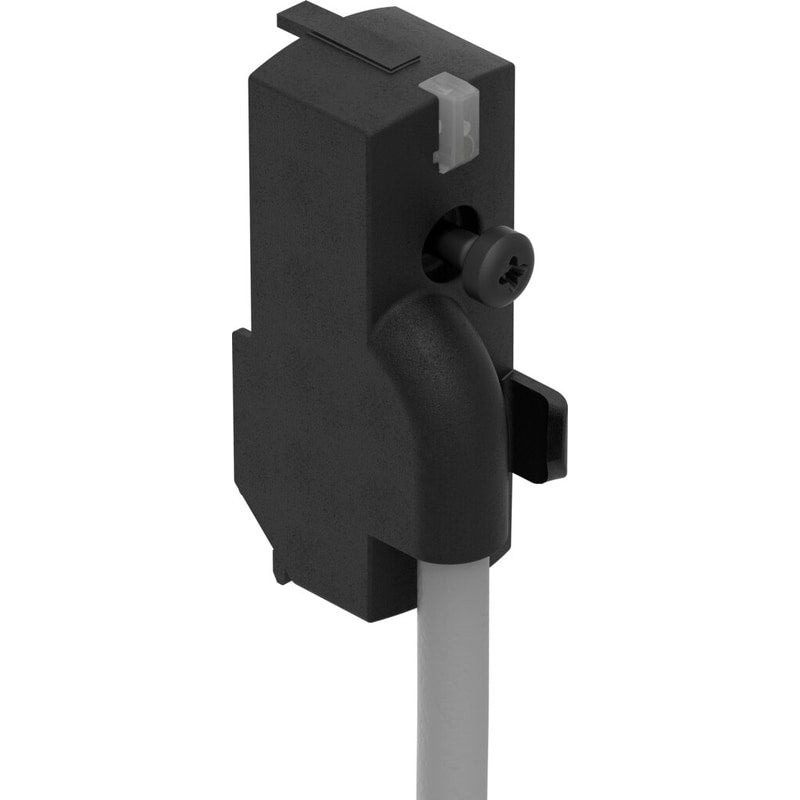

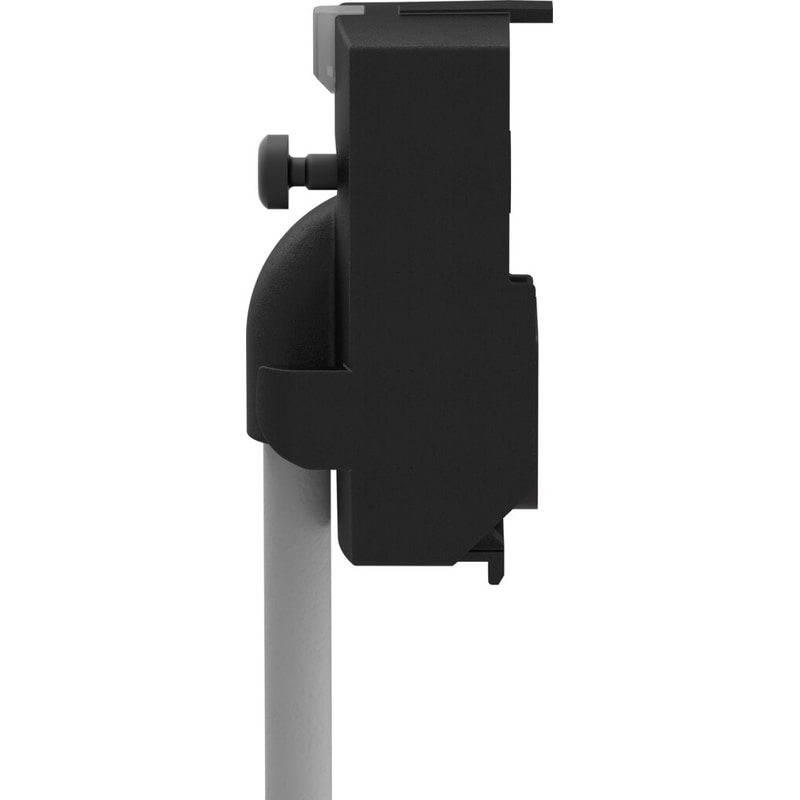

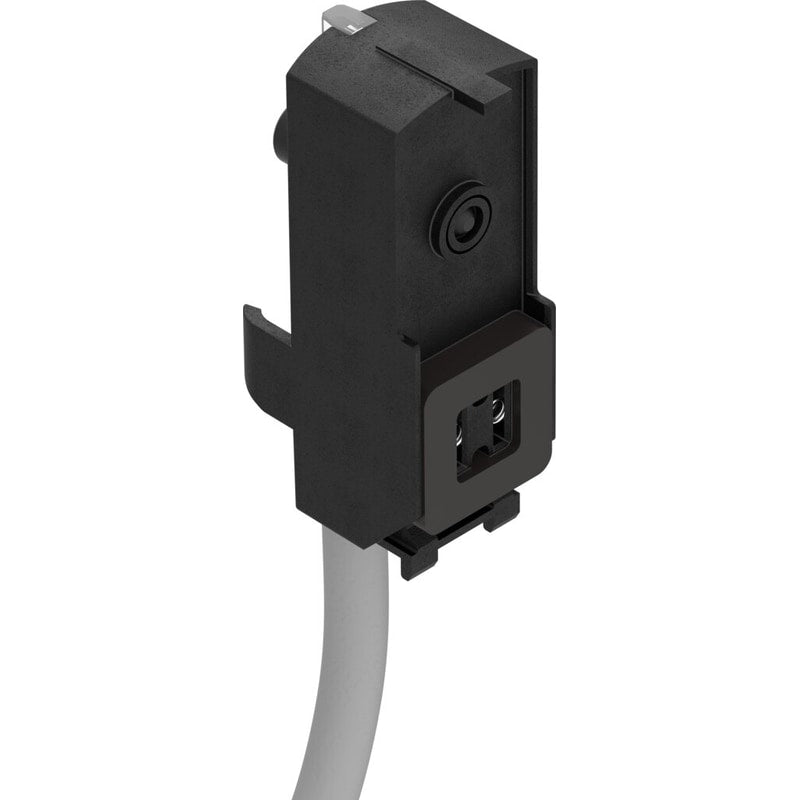

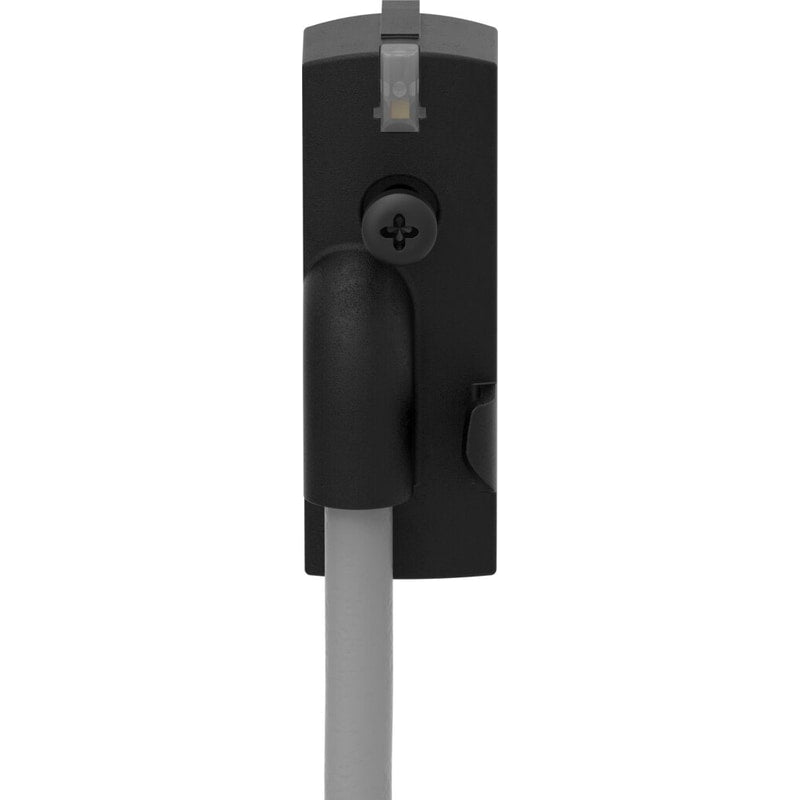

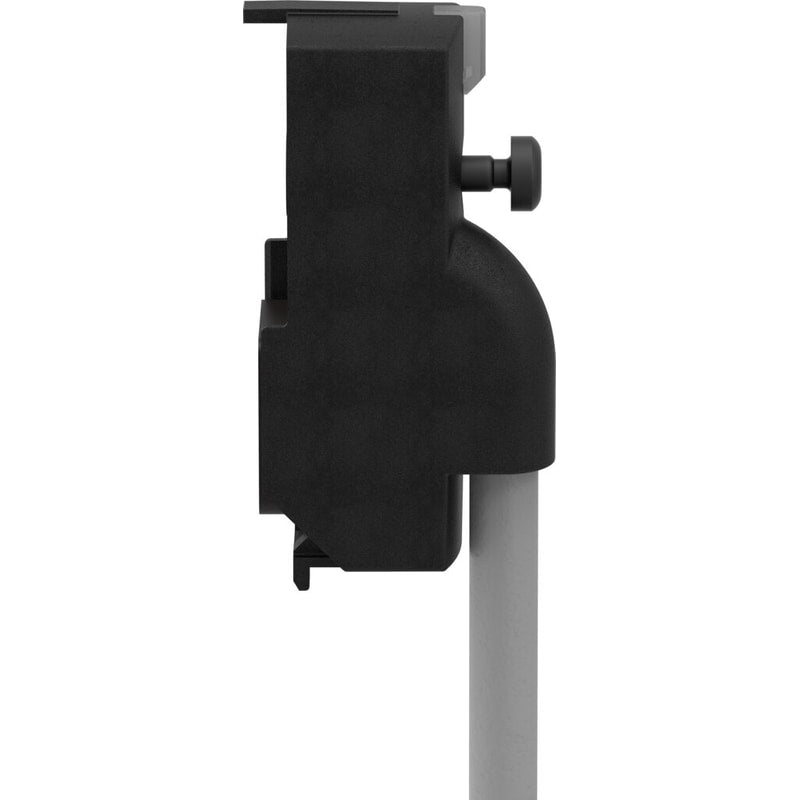

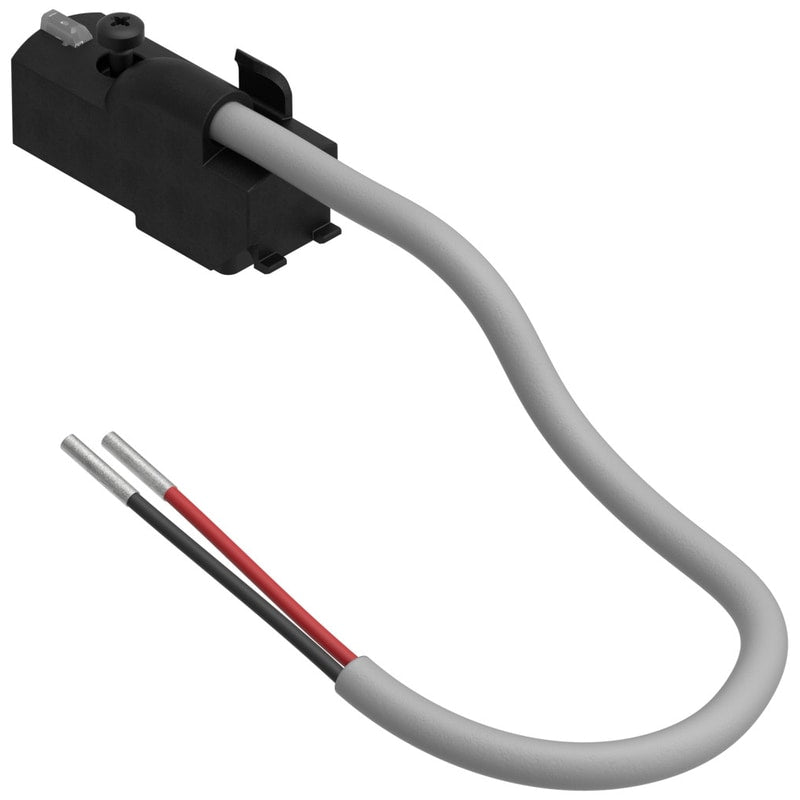

Electrical sub-base
VAVE-L1-1VK9-LP
573944
GTIN 4052568102920
Vendor Festo
Regular price
$25.79
Unit price
VAVE-L1-1VK9-LP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAVE-L1-1VK9-LP
Regular price
$25.79
Unit price
VAVE-L1-1VK9-LP is backordered and will ship as soon as it is back in stock.
| Contamination level | 3 |
|---|---|
| Surge resistance | 0.8 kV |
| Type code | VAVE |
| Mounting position | Any |
| Cable characteristic | for static applications |
| Reverse polarity protection | Bipolar |
| Additional functions | Spark suppression |
| Signal status display | LED |
| Nominal operating voltage DC | 24 V12 V |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 60 °C |
| Max. tightening torque | 0.27 Nm |
| Min. cable bending radius | 34 mm |
| Product weight | 92 g |
| Electrical connection | Angled socket/cable2-pin/2-wireRectangular design/open end |
| Cable design | 2 x 0.25 mm² |
| Cable diameter | 3.4 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Cable length | 5 m |
| Protective earth connection | Not available |
| Type of mounting | On air solenoid valve with self-tapping screw |
| Housing colour | Black |
| Housing material | PA |
| Material of cable sheath | TPV |
